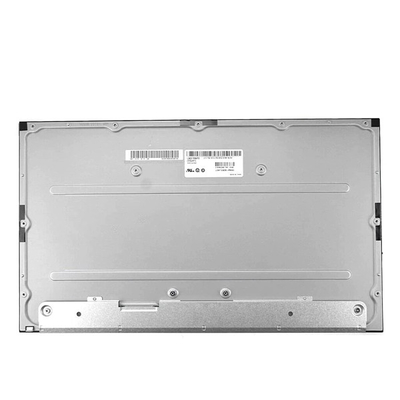

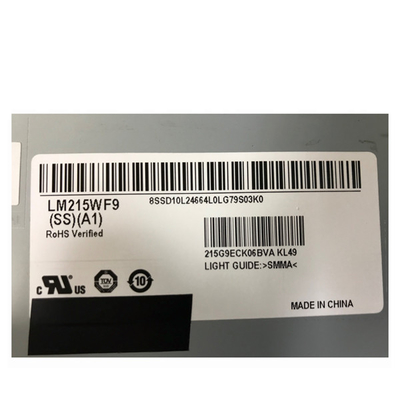

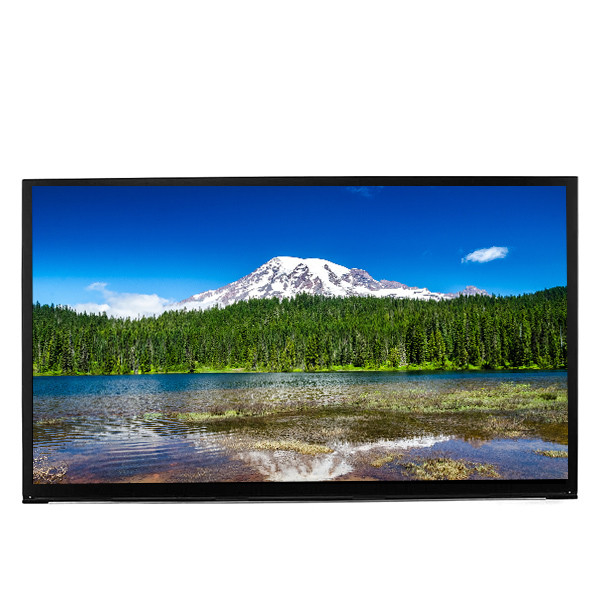

New LG 21.5 inch LCD panel LM215WF9-SSA1 with 1920x1080 LM215WF9-SSA1 lcd
Product Details:
| Place of Origin: | China |
| Brand Name: | LG Display |
| Model Number: | LM215WF9-SSA1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LM215WF9-SSA1 | Screen Size: | 21.5inch |
|---|---|---|---|
| Screen Type: | 1920(RGB)×1080, FHD, 102PPI | Display Area: | 476.064(W)×267.786(H) Mm |
| Outline Size: | 484.5(W)×284.4(H) ×12.7(D) Mm | Application: | Desktop Monitor |
| Luminance: | 250 Cd/m² (Typ.) | Contrast Ratio: | 1000:1 (Typ.) (TM) |
Product Description
New LG 21.5 inch LCD panel LM215WF9-SSA1 with 1920x1080 LM215WF9-SSA1 lcd
Product details :
Manufacturer:LG Display
Model Name:LM215WF9-SSA1
Screen Size:21.5"
Screen type:LCM, a-Si TFT-LCD
Resolution:1920(RGB)×1080 [FHD] 102PPI
Pixel configuration:RGB vertical bar
Display size:476.064 × 267.786 mm (H×V)
physical dimension:484.5 × 284.4 × 12.7 mm (H×V×D)
Surface treatment:Matte (Haze 25%), Hard coating (3H)
Brightness (cd/m2):250 (Typ.)
Contrast:1000: 1 (Typ.) [Transmission]
Best angle:Full view
Optical mode:IPS, normally black display, transmissive
Viewing angle:89/89/89/89 (Typ.)(CR≥10)
responding speed:14 (Typ.)(G to G) ms
Number of colors:16.7M, 72% NTSC
Backlight type:13S4P WLED, 30K hours, no driver
Screen weight:1.59/1.67Kgs (Typ./Max.)
Refresh rate:60Hz
signal system:LVDS (2 ch, 8-bit), connector, 30 pins
Supply voltage:5.0V (Typ.)
Maximum rating:Storage temperature: -20 ~ 60 °C Working temperature: 0 ~ 50 °C
LG Display LM215WF9-SSA1 Optical Details
| Basic Information : | Brightness | 250 cd/m² (Typ.) | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Optical Mode | IPS, Normally Black, Transmissive | |
| Viewing Direction | Symmetry | Response Time | 14 (Typ.)(G to G) (ms) | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Color Numbers | 16.7M (6-bit + Hi-FRC) |
| Color Temperature | 6485K | White Uniformity | 1.33 (Max.)(9 points)  |
|
| 1931 Color Gamlt : | NTSC Ratio | 72% | sRGB | 94% coverage |
| Adobe RGB | 73% coverage | DCI-P3 | 75% coverage | |
| Rec.2020 | 54% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
Why Choose Us :
According to customers' various requests,
we can match all accessories which inclusive of driver board,
touch-screen, LED backlight & LVDS cables. TFT LCD,
LCD panel, LCD display,LCD screen, LCD monitor,
LCD module from 2.2 inch to 88 inch.
Quality promised, 100% original,fast delivery,
also enjoy one year guarantee !
Shipping and Package :
1)All of our product will be testing before shipping . So you can be assured the quality of our products
2) All Panels are packed with new and firm carton, capable of long distance transportation.
3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT
4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.
FAQ:
Q: Can You declare my order of LM215WF9-SSA1 at a very low value ?
A: Yes , we can . pls inform us before shipping .
Q: How can I trace my order of LG Display LM215WF9-SSA1 ?
A: we will give you tracking number then you can trace your order form website.
Q: Can you give me a discount if I need a large quantity of LM215WF9-SSA1 ?
A: Of course!If you make a large order, we will give you a discount.
Q: I do not find the LCD I am looking for in the website, what should I do ?
A: You can give us some pictures,we have a lot of LCD out of shelves.
