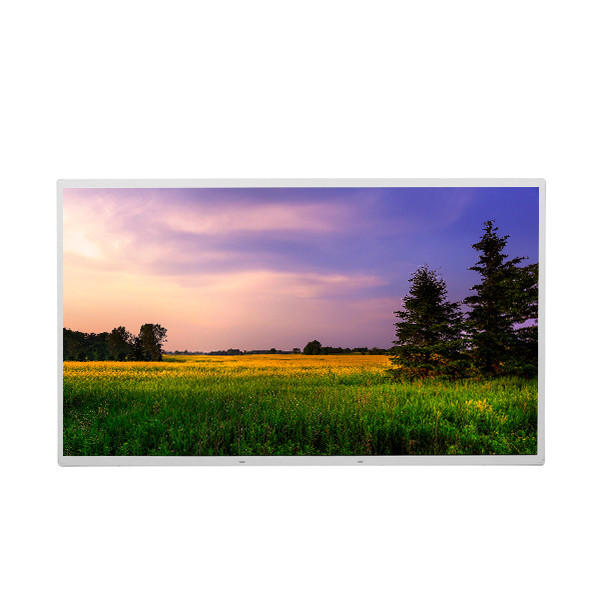

For Lenovo 21.5 inch Laptop LCD Screen LED Display LM215WF4-TLG1
Product Details:
| Place of Origin: | China |
| Brand Name: | LG Display |
| Model Number: | LM215WF4-TLG1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LM215WF4-TLG1 | Screen Size: | 21.5 Inch |
|---|---|---|---|
| Screen Type: | 1920(RGB)×1080, FHD, 102PPI | Display Area: | 476.064(W)×267.786(H) Mm |
| Outline Size: | 495.6(W)×292.2(H) ×10.7(D) Mm | Bezel Opening: | 479.8(W)×271.3(H) Mm |
| Luminance: | 250 Cd/m² (Typ.) | Contrast Ratio: | 1000:1 (Typ.) (TM) |
Product Description
For Lenovo 21.5 inch Laptop LCD Screen LED Display LM215WF4-TLG1
Product details :
| Manufacturer | LG Display |
| Model Name | LM215WF4-TLG1 |
| Screen Size | 21.5" |
| Screen type | LCM, a-Si TFT-LCD |
| Resolution | 1920(RGB)×1080 [FHD] 102PPI |
| Pixel configuration | RGB vertical bar |
| Display size | 476.064 × 267.786 mm (H×V) |
| physical dimension | 495.6 × 292.2 × 10.7 mm (H×V×D) |
| Visual size | 479.8 × 271.3 mm (H×V) |
| Surface treatment | Matte, Hard coating (3H) |
| Brightness (cd/m2) | 250 (Typ.) |
| Contrast | 1000: 1 (Typ.) [Transmission] |
| Best angle | 6 o'clock |
| Optical mode | TN, normally white display, transmissive |
| Viewing angle | 85/85/75/85 (Typ.)(CR≥10) |
| responding speed | 1.3/3.7 (Typ.)(Tr/Td) ms |
| Number of colors | 16.7M, 72% NTSC |
| Backlight type driver | 14S2P WLED, 30K hours, no driver |
| Screen weight:1.72/1.81Kgs (Typ./Max.) | 1.72/1.81Kgs (Typ./Max.) |
| Refresh rate:60Hz | 60Hz |
| signal system | LVDS (2 ch, 8-bit), connector, 30 pins |
| Supply voltage | 5.0V (Typ.) |
| Maximum rating:Storage temperature | Storage temperature: -20 ~ 60 °C Working temperature: 0 ~ 50 °C |
| For Lenovo 21.5 inch Laptop LCD Screen LED Display LM215WF4-TLG1 | |
LG Display LM215WF4-TLG1 Mechanical Details
| Pixel Features : | Number of Pixel | 1920(RGB)×1080 [FHD] | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.08265×0.24795 mm | Pixel Pitch(W×H) | 0.24795×0.24795 mm [102PPI] | |
| Physical Size : | Active Viewing | 476.064(W)×267.786(H) mm | Overall Dim. | 495.6(W)×292.2(H) mm |
| Bezel Opening | 479.8(W)×271.3(H) mm | Overall Depth | 8.6/10.7 (Typ./Max.) mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 16:9 | Shape Style | Normal bezel | |
| Fixation : | Side mounting holes (4-M3) on left, right bezel | |||
| Other Detail : | Mass | 1.72/1.81Kgs (Typ./Max.) | Surface | Antiglare, Hard coating (3H) |
Why Choose Us :
According to customers' various requests,
we can match all accessories which inclusive of driver board,
touch-screen, LED backlight & LVDS cables. TFT LCD,
LCD panel, LCD display,LCD screen, LCD monitor,
LCD module from 2.2 inch to 88 inch.
Quality promised, 100% original,fast delivery,
also enjoy one year guarantee !
Shipping and Package :
1)All of our product will be testing before shipping . So you can be assured the quality of our products
2) All Panels are packed with new and firm carton, capable of long distance transportation.
3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT
4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.
FAQ:
Q: If I place order now,when will you ship the goods of LM215WF4-TLG1 ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: How long is the warranty ?
A: We offer 90days warranty .
Q: How long will I receive my goods LM215WF4-TLG1?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: Can You declare my order of LM215WF4-TLG1 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
