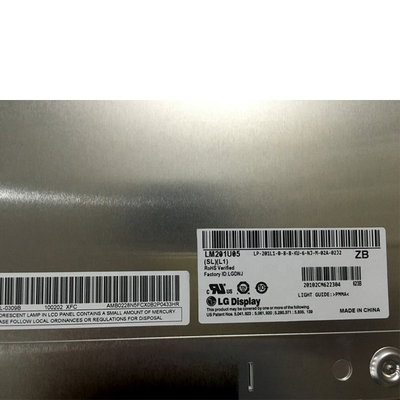

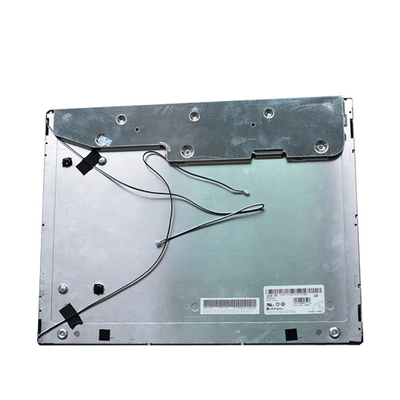

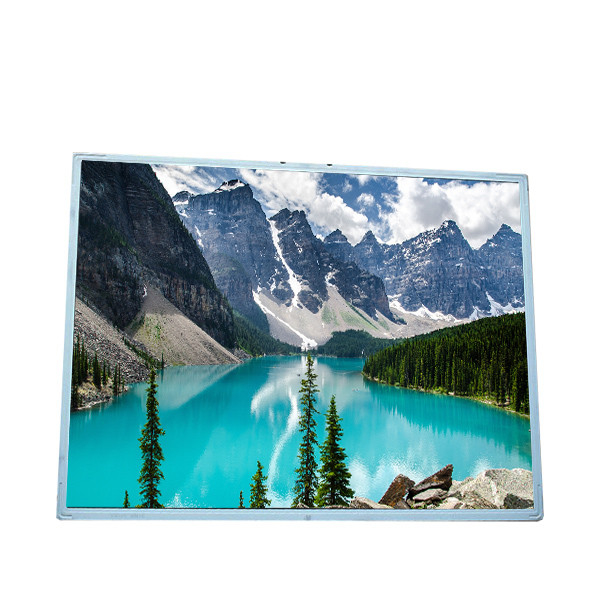

For LG 20.1 inch LM201U05-SLL1 LCD Screen Display Panel
Product Details:
Place of Origin: | China |
Brand Name: | LG Display |
Model Number: | LM201U05-SLL1 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 pcs |
---|---|
Price: | Negotiable |
Packaging Details: | Original packaging/conventional packaging box |
Delivery Time: | 7 Days |
Payment Terms: | T/T, Western Union |
Supply Ability: | 100000 Unit/Units per Month |
Detail Information |
|||
Model Name: | LM201U05-SLL1 | Screen Size: | 20.1 Inch |
---|---|---|---|
Screen Type: | 1600(RGB)×1200, UXGA, 99PPI | Display Area: | 408(W)×306(H) Mm |
Outline Size: | 432(W)×331.5(H) ×25.5(D) Mm | Bezel Opening: | 413.0(W)×311.0(H) Mm |
Luminance: | 300 Cd/m² (Typ.) | Contrast Ratio: | 800:1 (Typ.) (TM) |
Product Description
For LG 20.1 inch LM201U05-SLL1 LCD Screen Display Panel
Product details :
Manufacturer | LG Display |
Model Name | LM201U05-SLL1 |
Screen Size | 20.1 inches |
Panel type | a-Si TFT-LCD, LCD module |
Number of pixels | 1600(RGB)×1200, UXGA, 99PPI |
Pixel layout | RGB vertical bar |
Display area | 408(W)×306(H) mm |
Viewable area | 413.0(W)×311.0(H) mm |
physical dimension | 432(W)×331.5(H) ×25.5(D) mm |
Surface treatment | Matte (Haze 25%), Hard coating (3H) |
Panel brightness:3 | 300 cd/m2 (Typ.) |
Contrast | 800:1 (Typ.) (TM) |
Viewing angle | 89/89/89/89 (Typ.)(CR≥10) |
Operating mode | IPS, normally black display, transmissive |
Best perspective | Full view |
Reaction | 6.5/7.5 (Typ.)(Tr/Td); 6 (Typ.)(G to G) ms |
Display color | 16.7M, 72% NTSC |
type of light source | 6 pcs CCFL, 45K hours, without driver |
working frequency | 60Hz |
Panel weight | 3.20/3.25Kgs (Typ./Max.) |
Signal interface | LVDS (2 ch, 8-bit), 30 pins, connector |
Drive screen voltage | 20.0V (Typ.) |
working environment | Working: 0 ~ 50 °C; Storage: -20 ~ 60 °C |
For LG 20.1 inch LM201U05-SLL1 LCD Screen Display Panel |
LG Display LM201U05-SLL1 Optical Details
Basic Information : | Luminance | 300 cd/m² (Typ.) | Contrast Ratio | 800 : 1 (Typ.) (Transmissive) |
---|---|---|---|---|
Good View at | Symmetry | Response Speed | 6.5/7.5 (Typ.)(Tr/Td); 6 (Typ.)(G to G) (ms) | |
Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Operating Mode | IPS, Normally Black, Transmissive | |
Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Support Color | 16.7M (8-bit) |
Color Temperature | 6485K | White Uniformity | 1.33 (Max.)(9 points) | |
1931 Color Gamlt : | NTSC Ratio | 72% | sRGB | 94% coverage |
Adobe RGB | 75% coverage | DCI-P3 | 75% coverage | |
Rec.2020 | 54% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
Why Choose Us :
According to customers' various requests,
we can match all accessories which inclusive of driver board,
touch-screen, LED backlight & LVDS cables. TFT LCD,
LCD panel, LCD display,LCD screen, LCD monitor,
LCD module from 2.2 inch to 88 inch.
Quality promised, 100% original,fast delivery,
also enjoy one year guarantee !
Shipping and Package :
1)All of our product will be testing before shipping . So you can be assured the quality of our products
2) All Panels are packed with new and firm carton, capable of long distance transportation.
3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT
4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.
FAQ:
Q: Can you give me a discount if I need a large quantity of LM201U05-SLL1 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Can You declare my order of LM201U05-SLL1 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: Can I pay my order of LM201U05-SLL1 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: How long is the warranty ?
A: We offer 90 days warranty .
