Kyocera 7.0 inch 800*480 TCG070WVLPAANN-AN50 lcd screen
Product Details:
| Place of Origin: | China |
| Brand Name: | Kyocera |
| Model Number: | TCG070WVLPAANN-AN50 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | TCG070WVLPAANN-AN50 | Screen Size: | 7.0 Inches |
|---|---|---|---|
| Pixel Number: | 800(RGB)×480, WVGA, 133PPI | Active Area(mm): | 152.4(W)×91.44(H) Mm |
| Outline(mm): | 165(W)×104.4(H) ×8.5(D) Mm | Visual Size: | 154.4(W)×93.4(H) Mm |
| Luminance: | 700 Cd/m² (Typ.) | Contrast Ratio: | 1000:1 (Typ.) (TM) |
Product Description

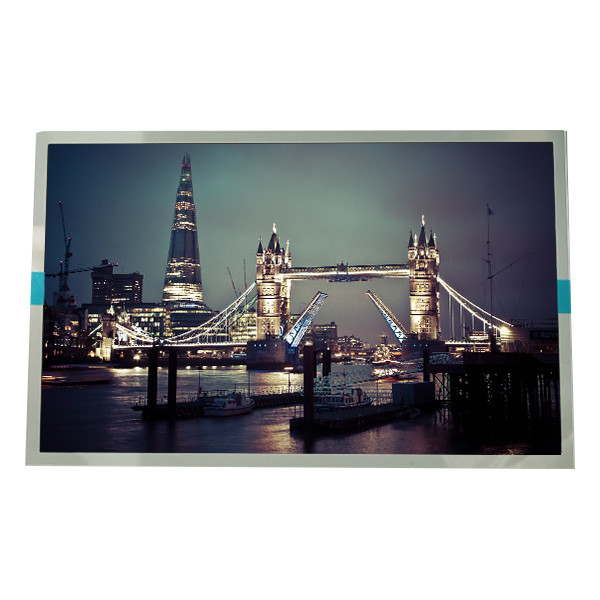

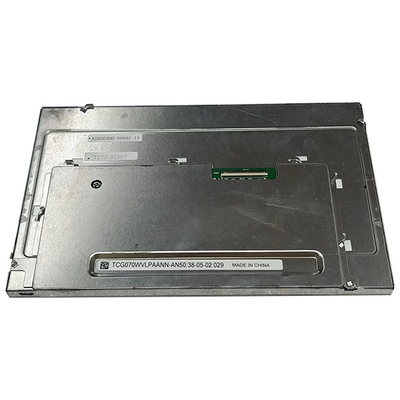

Kyocera 7.0 inch 800*480 TCG070WVLPAANN-AN50 lcd screen
Product details :
| Kyocera LCD SCREEN TCG070WVLPAANN-AN50 | |
| manufacturer | Kyocera |
| Model Name | TCG070WVLPAANN-AN50 |
| screen size | 7.0 inch |
| Screen type | a-Si TFT-LCD , LCM |
| Resolution | 800(RGB)×480, WVGA, 133PPI |
| Pixel configuration | RGB Vertical Stripe |
| Display size | 152.4(W)×91.44(H) mm |
| physical dimension | 165(W)×104.4(H) ×8.5(D) mm |
| Visual size | 154.4(W)×93.4(H) mm |
| surface treatment | Antiglare |
| Brightness | 700 cd/m² (Typ.) |
| Contrast | 1000:1 (Typ.) (TM) |
| Best angle | 12 o'clock |
| Optical mode | TN, Normally White, Transmissive |
| Viewing angle | 80/80/60/80 (Typ.)(CR≥10) |
| Responding time | 5/25 (Typ.)(Tr/Td) |
| Number of color | 262K 49% NTSC |
| Backlight type | 2 strings WLED , 70K hours , Without Driver |
| Panel weight | 195g (Typ.) |
| Apply to | Industrial |
| Touch function | No touch |
| signal system | Parallel RGB (1 ch, 6-bit) , 40 pins Connector |
| Supply voltage | 3.3V (Typ.) |
| Maximum rating | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
| Kyocera 7 inch LCD Panel TCG070WVLPAANN-AN50 | |
Why Choose Us :
According to customers' various requests,
we can match all accessories which inclusive of driver board,
touch-screen, LED backlight & LVDS cables. TFT LCD,
LCD panel, LCD display,LCD screen, LCD monitor,
LCD module from 2.2 inch to 88 inch.
Quality promised, 100% original,fast delivery,
also enjoy one year guarantee !
Shipping and Package :
Shipping:
1. We will test them strictly before shipment.
2.We will only pay the shipping cost and tax for our country, if there is any shipping cost and tax in your country, you should pay for it.
3.We will send the product within7 working days after receiving the order.(Chinese New Year, we will extend the delivery of products)
4.Many of the original LCD screen has been discontinued, we sell the Used ones of great working condition.
5.Please confirm it with us before buying if you need 100% new.
FAQ:
Q: Can I pay my goods Kyocera TCG070WVLPAANN-AN50 by credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: How do you ship my goods TCG070WVLPAANN-AN50 ?
A: We can shipping all over the world.via DHL,UPS,Fedex and EMS, the packaging is very safe and strong.
Q: I do not find the LCD I am looking for in the website, what should I do ?
A: You can give us some pictures,we have a lot of LCD out of shelves.
Q: What happen if the Kyocera TCG070WVLPAANN-AN50 I receive can't work ?
A: The LD490EUE-FHB1 will be tested strictly before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.
