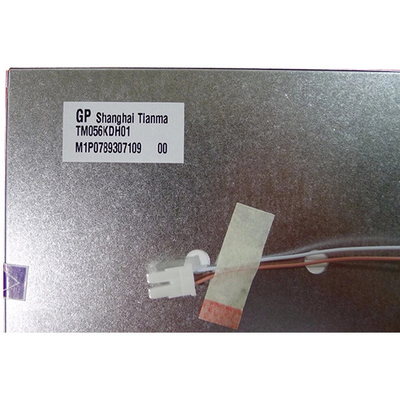

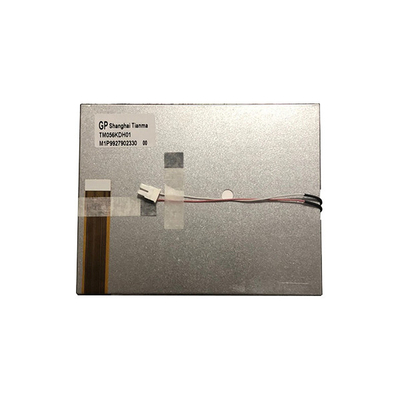

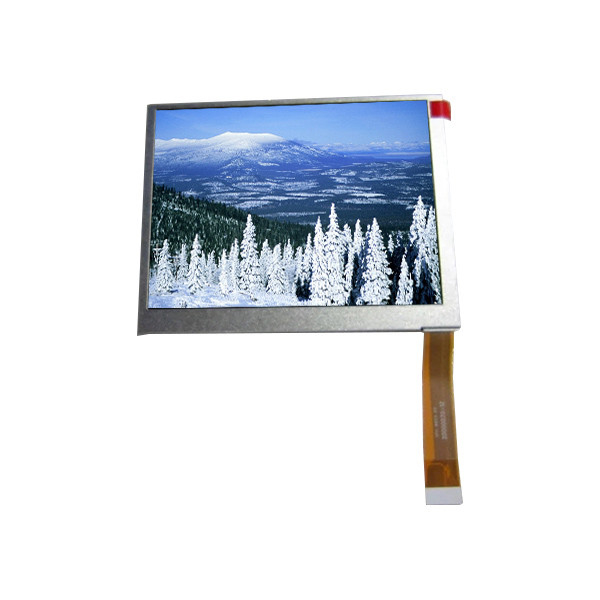

• 5.6 Inch 320x234 TIANMA Display TM056KDH01 WLED Backlight Lcd Screen For Industrial
  • 5.6 Inch 320x234 TIANMA Display TM056KDH01 WLED Backlight Lcd Screen For Industrial
  • 5.6 Inch 320x234 TIANMA Display TM056KDH01 WLED Backlight Lcd Screen For Industrial
5.6 Inch 320x234 TIANMA Display TM056KDH01 WLED Backlight Lcd Screen For Industrial

5.6 Inch 320x234 TIANMA Display TM056KDH01 WLED Backlight Lcd Screen For Industrial

Product Details:

Place of Origin: China
Brand Name: TIANMA
Model Number: TM056KDH01

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: Negotiable
Packaging Details: Original packaging/conventional packaging box
Delivery Time: 7 Days
Payment Terms: T/T, Western Union
Supply Ability: 100000 Unit/Units per Month
Get Best Price Contact Now

Detail Information

Model Name: TM056KDH01 Screen Size: 5.6 Inch
Pixel Number: 320(RGB)×234, 71PPI Active Area(mm): 113.28(W)×84.708(H) Mm
Physical Dimension: 126.5(W)×100(H) Mm Visual Size: 116.08(W)×87.51(H) Mm
Panel Weight: 123g (Typ.) Apply To: Industrial / Digital Photo Frame / Portable DVD Player / Video Door Phone
High Light:

TM056KDH01 LCD Panel Display

,

5.6 Inch 320x234 Lcd Screen

Product Description

5.6 inch 320*234 TIANMA display TM056KDH01 WLED backlight lcd screen for industrial





Product details :

 TM056KDH01 supports display 320(RGB)×234 with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 113.28(W)×84.708(H) mm, outline size of 126.5(W)×100(H) mm, viewing area size of 116.08(W)×87.51(H) mm, with surface treament of Antiglare, net weight of 123g (Typ.). As a TN, Normally White, Transmissive LCM product, TM056KDH01 can provides 200 cd/m² display brightness 300:1 transimissive contrast ratio, 65/65/45/65 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 12 o'clock , and response time of 25 (Typ.)(Tr+Td) ms., thus presenting a palette of Full color colors, also with performance of color gamut 50% (NTSC). This product adopted 2S7P WLED as it's backlight systerm which was placed as Edge light type, external backlight driver is additionally needed. TM056KDH01 utilizes TFT Specific Analog RGB as it's signal inputting systerm, which connected by 26 pins FPC with power supply voltage of 5.0/5.0/15.0/-10.0V (Typ.)(VCC/AVDD/VGH/VGL).

TIANMA LCD SCREEN TM056KDH01
manufacturer TIANMA
Model Name TM056KDH01
screen size 5.6 inch
Screen type a-Si TFT-LCD , LCM
Resolution 320(RGB)×234, 71PPI
Pixel configuration RGB Vertical Stripe
Display size 113.28(W)×84.708(H) mm
physical dimension 126.5(W)×100(H) mm
Visual size 116.08(W)×87.51(H) mm
surface treatment Antiglare
Brightness 200cd/m² (Typ.)
Contrast 300:1 (Typ.) (TM)
Best angle 12 o'clock
Optical mode TN, Normally White, Transmissive
Viewing angle 65/65/45/65 (Typ.)(CR≥10)
Responding time 25 (Typ.)(Tr+Td)
Number of color Full color 50% NTSC
Backlight type 2S7P WLED , Without Driver
Panel weight 123g (Typ.)
Apply to Industrial / Digital Photo Frame / Portable DVD Player / Video Door Phone
Touch function No touch
signal system TFT Specific Analog RGB , 26 pins FPC
Supply voltage 5.0/5.0/15.0/-10.0V (Typ.)(VCC/AVDD/VGH/VGL)
Maximum rating

Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C

chac

5.6 inch 320*234 TIANMA display TM056KDH01 WLED backlight lcd screen for industrial

Why Choose Us :



According to customers' various requests,


we can match all accessories which inclusive of driver board,


touch-screen, LED backlight & LVDS cables. TFT LCD,


LCD panel, LCD display,LCD screen, LCD monitor,


LCD module from 2.2 inch to 88 inch.


Quality promised, 100% original,fast delivery,


also enjoy one year guarantee !



Shipping and Package :



5.6 Inch 320x234 TIANMA Display TM056KDH01 WLED Backlight Lcd Screen For Industrial 0

1)All of our product will be testing before shipping . So you can be assured the quality of our products



2) All Panels are packed with new and firm carton, capable of long distance transportation.



3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT



4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.



FAQ:

Q: If I place order now,when will you ship the goods of TM056KDH01 ?

A: The order will be shipped within 2-3 working days after received your payment.



Q: Can I pay my order of TM056KDH01 via credit card ?

A: Yes!you can use your credit card through your Paypal account.



Q: How long is the warranty ?

A: We offer 90days warranty .



Q: Can you give me a discount if I need a large quantity of TM056KDH01 ?

A: Of course!If you make a large order, we will give you a discount.
