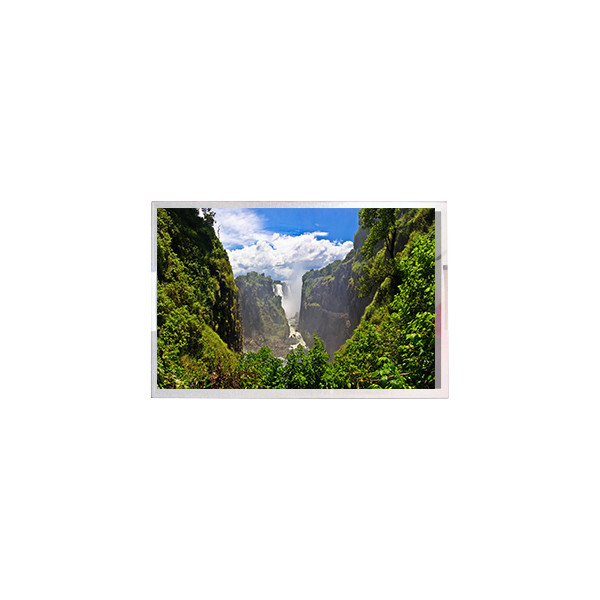

Name: B133HAB01.0 HW6A 13.3 inch TFT lcd module laptop display screen
Brand: Shenzhen Yongsheng Innovation Technology Co., Ltd
SKU: B133HAB01.0 HW6A
Availability: InStock

Brand Name:	AUO
Model Number:	B133HAB01.0 HW6A
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

B133HAB01.0 HW6A

Screen Size:

13.3"

Resolution:

1920(RGB)×1080, FHD 166PPI

Active Area:

293.472(W)×165.078(H) Mm

Outline Dim.:

314.17(W)×205.25(H)×4.2(D) Mm

Treatment:

Glare (Haze 0%), Hard Coating (3H)

Luminance:

220 Cd/m² (Typ.)

Contrast:

800:1 (Typ.) (TM)

Light Source:

WLED , 15K Hours , With LED Driver

Designed For:

Laptop

Supply Ability:

100000 Unit/Units per Month

Product Description

B133HAB01.0 HW6A 13.3 inch TFT lcd module laptop display screen

Product details :

Brand	AUO
Model P/N	B133HAB01.0 HW6A
Diagonal Size	13.3"
Panel Type	a-Si TFT-LCD, Assembly
Resolution	1920(RGB)×1080, FHD 166PPI
Pixel Format	RGB Vertical Stripe
Active Area	293.472(W)×165.078(H) mm
Bezel Opening	-
Outline Dim.	314.17(W)×205.25(H)×4.2(D) mm
Treatment	Glare (Haze 0%), Hard coating (3H)
Luminance	220 cd/m² (Typ.)
Contrast Ratio	800:1 (Typ.) (TM)
View Direction	Symmetry
Response Time	25 (Typ.)(Tr+Td)
Viewing Angle	85/85/85/85 (Typ.)(CR≥10)
Operating Mode	AHVA, Normally Black, Transmissive
Support Color	262K 45% NTSC
Light Source	WLED , 15K hours , With LED Driver
Form Style	-
Designed For	Laptop
Frame Rate	60Hz
Touch Panel	On-Cell Touch, I²C
Interface Type	eDP (2 Lanes) , eDP1.2 , 40 pins Connector
Power Supply	3.3V (Typ.)
Environment	Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C

Why Choose Us :

According to customers' various requests,

we can match all accessories which inclusive of driver board,

touch-screen, LED backlight & LVDS cables. TFT LCD,

LCD panel, LCD display,LCD screen, LCD monitor,

LCD module from 2.2 inch to 88 inch.

Quality promised, 100% original,fast delivery,

also enjoy one year guarantee !

Shipping and Package :

B133HAB01.0 HW6A 13.3 inch TFT lcd module laptop display screen 0

Shipping information

We will deliver the goods within 1-5 working days after payment settlement.

We provide some goods delivered by Hongkong / China Post free of charge. If you need it urgently, please contact me.

The standard mode of transportation is international air mail. The project will take 7-14 hours to ship from Hong Kong

Reception days in most areas (2-3 weeks).

If you do not receive the item within 30 working days (5 weeks), please contact us to investigate the case( Brazil). Italy. 5-8 weeks)

FAQ:

Q: How to order lcd panel B133HAB01.0 HW6A ?

A: We accept T/T , Paypal , western union .

Q: Can you tested the B133HAB01.0 HW6A before shipping ?

A: Of course ,lcd screen B133HAB01.0 HW6A was Strictly tested before shipping.

Q: What happen if the B133HAB01.0 HW6A received can't work ?

A: B133HAB01.0 HW6A lcd panel was tesed before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel .

Q: How long the warranty of the B133HAB01.0 HW6A ?

A: 90 days .
