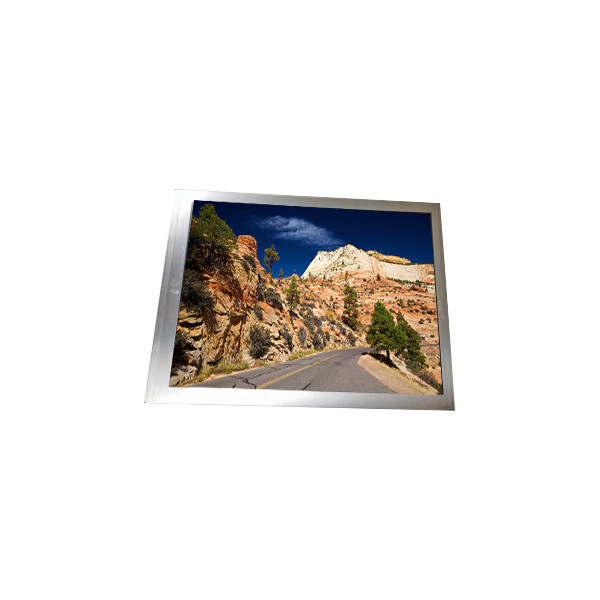

14.0 inch B140XTK02.0 HW2A 1366*768 LCD Screen Display Panel
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | B140XTK02.0 HW2A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | B140XTK02.0 HW2A | Screen Size: | 14.0" |
|---|---|---|---|
| Resolution: | 1366(RGB)×768, WXGA 112PPI | Pixel Format: | RGB Vertical Stripe |
| Active Area: | 309.399(W)×173.952(H) Mm | Treatment: | Glare (Haze 0%), Hard Coating (3H) |
| Luminance: | 220 Cd/m² (Typ.) | Contrast: | 500:1 (Typ.) (TM) |
| Form Style: | Slim (PCBA Flat, T≤3.2mm) | Designed For: | Laptop |
Product Description
14.0 inch B140XTK02.0 HW2A 1366*768 LCD Screen Display Panel
Product details :
| Brand | AUO |
| Model P/N | B140XTK02.0 HW2A |
| Diagonal Size | 14.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1366(RGB)×768, WXGA 112PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 309.399(W)×173.952(H) mm |
| Bezel Opening | - |
| Outline Dim. | 315.9(H)×197.54(V) ×3.2(D) mm |
| Treatment | Glare (Haze 0%), Hard coating (3H) |
| Luminance | 220 cd/m² (Typ.) |
| Contrast Ratio | 500:1 (Typ.) (TM) |
| View Direction | 6 o'clock |
| Response Time | 8 (Typ.)(G to G) |
| Viewing Angle | 45/45/15/35 (Typ.)(CR≥10) |
| Operating Mode | TN, Normally White, Transmissive |
| Support Color | 262K 45% NTSC |
| Light Source | WLED , 15K hours , With LED Driver |
| Form Style | Slim (PCBA Flat, T≤3.2mm) |
| Designed For | Laptop |
| Frame Rate | 60Hz |
| Touch Panel | On-Cell Touch, I²C |
| Interface Type | eDP (1 Lane) , eDP1.2 , 40 pins Connector |
| Power Supply | 3.3V (Typ.) |
| Environment | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
