8.4 Inch LQ084S3LG03 WLED Lcd Screen Panel LVDS Industrial LCD Display
Product Details:
| Place of Origin: | China |
| Brand Name: | Sharp |
| Model Number: | LQ084S3LG03 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LQ084S3LG03 | Screen Size: | 8.4 Inch |
|---|---|---|---|
| Pixel Number: | 800(RGB)×600, SVGA, 119PPI | Active Area: | 170.4(W)×127.8(H) Mm |
| Physical Dimension: | 199.5(W)×154(H) ×12.45(D) Mm | Visual Size: | 173.4(W)×130.8(H) Mm |
| Brightness: | 330 Cd/m² (Typ.) | Contrast: | 450:1 (Typ.) (TM) |
| High Light: | LQ084S3LG03 Lcd Touch Panel,Industrial 8.4 inch Lcd Screen Panel,LQ084S3LG03 Industrial LCD Display |
||
Product Description

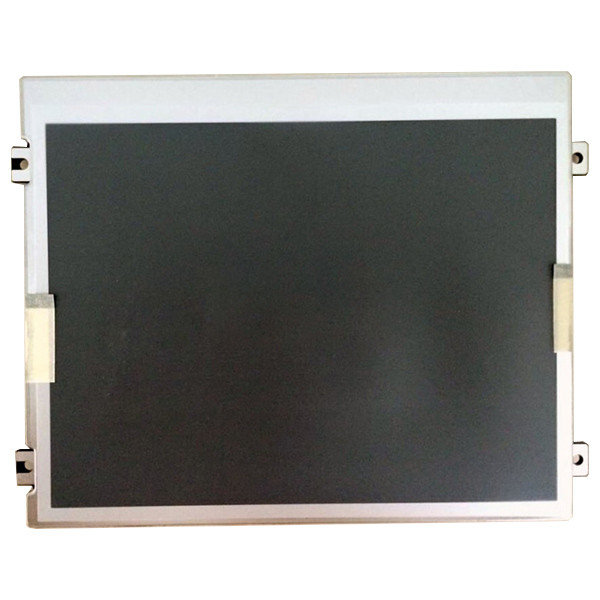

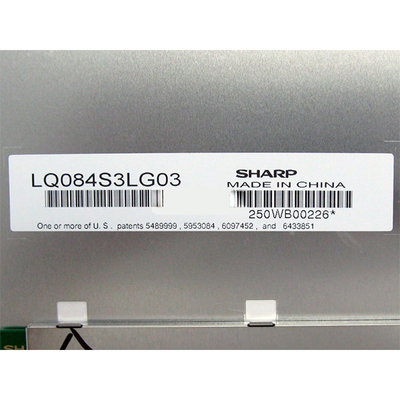

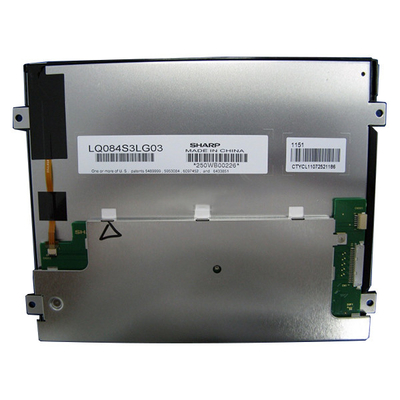

8.4 inch LQ084S3LG03 WLED lcd touch screen LVDS Industrial LCD Panel Display
Product details :
| Sharp LCD SCREEN LQ084S3LG03 | |
| manufacturer | Sharp |
| Model Name | LQ084S3LG03 |
| screen size | 8.4 inch |
| Screen type | a-Si TFT-LCD , LCM |
| Resolution | 800(RGB)×600, SVGA, 119PPI |
| Pixel configuration | RGB Vertical Stripe |
| Display size | 170.4(W)×127.8(H) mm |
| physical dimension | 199.5(W)×154(H) ×12.45(D) mm |
| Visual size | 173.4(W)×130.8(H) mm |
| surface treatment | Antiglare, Hard coating (2H) |
| Brightness | 330 cd/m² (Typ.) |
| Contrast | 450:1 (Typ.) (TM) |
| Best angle | 12 o'clock |
| Optical mode | TN, Normally White, Transmissive |
| Viewing angle | 65/65/60/55 (Typ.)(CR≥10) |
| Responding time | 35 (Typ.)(Tr+Td) |
| Number of color | 262K/16.7M |
| Backlight type | WLED , 50K hours , With LED Driver |
| Panel weight | 320g (Max.) |
| Apply to | Industrial |
| Refresh rate | 60Hz |
| Touch function | No touch |
| signal system | LVDS (1 ch, 6/8-bit) , 20 pins Connector |
| Supply voltage | 3.3V (Typ.) |
| Maximum rating | Operating Temp.: -30 ~ 75 °C ; Storage Temp.: -30 ~ 75 °C ; Vibration Level: 2.0G (19.6 m/s²) |
| 8.4 inch LQ084S3LG03 WLED lcd touch screen LVDS Industrial LCD Panel Display | |
About the product:
*Our main products include: 1.5-34 inch liquid crystal display(LCD)and touch screens, various handheld device LCDs and touch screens, various industrial LCD screens,medical equipment LCD screens,GPS and car LCD screens,high voltage strips,power supply boards, Lights, encoders, etc. Many original LCD monitors are discontinued models and second-hand (A+ level). If you only need 100% new screens, please confirm with us before purchasing.
*Please compare your original product with the photos we provide to make sure you are buying the correct parts. If you are not sure whether the match is accurate, please contact our customer service directly, our customer service will give the most accurate answer within 24 hours.
*Does not include installation instructions. Professional installation is recommended. Please read the instructions carefully.
*If you have any questions or clarifications about the items, please feel free to ask before buying.
Shipping and Package :
Regarding tariffs and receipts:
*The buyer is responsible for the customs duties at the destination. If your budget does not allow tariffs, please avoid express delivery (DHL, FEDEX, EMS).
*If you do not receive the package within 30 days, please contact us. If unclaimed within 15-30 days, the package will be returned.
FAQ:
Q: If I order LQ084S3LG03 now,when will you ship the goods ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: How long is the warranty of LQ084S3LG03 ?
A: 90days warranty .
Q: How can I trace my order of Sharp LQ084S3LG03 ?
A: we will give you tracking number then you can trace your order from website.
Q: Can I pay my goods LQ084S3LG03 by credit card ?
A: Yes!you can use your credit card through your Paypal account.
