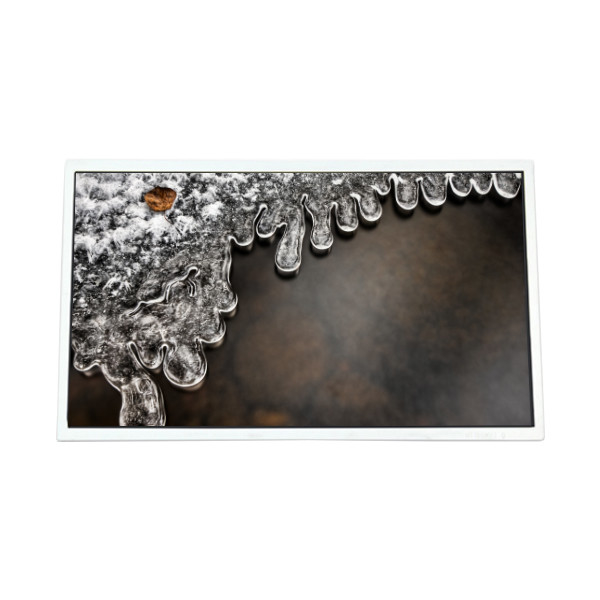

23.1 inch LCD DISPLAY PANEL DV231FHM-NV1 LCD screen
Product Details:
| Place of Origin: | China |
| Brand Name: | BOE |
| Model Number: | DV231FHM-NV1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | DV231FHM-NV1 | Screen Size: | 23.1" |
|---|---|---|---|
| Resolution: | 1920×158(RGB) 83PPI | Active Area: | 585.216(W)×48.1584(H) Mm |
| Brightness: | 700 Cd/m² (Typ.) | Contrast Ratio: | 1000:1 (Typ.) (TM) |
| View Direction: | Symmetry | Response Time: | 15 (Typ.)(G To G) |
| Operating Mode: | ADS, Normally Black, Transmissive | Designed For: | Digital Signage， Outdoor High Brightness ，Stretched Bar LCD |
Product Description
23.1 inch LCD DISPLAY PANEL DV231FHM-NV1 LCD screen
Product details :
| Brand | BOE |
| Model P/N | DV231FHM-NV1 |
| Diagonal Size | 23.1" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1920×158(RGB) 83PPI |
| Pixel Format | RGB Horizontal Stripe |
| Active Area | 585.216(W)×48.1584(H) mm |
| Bezel Opening | - |
| Outline Dim. | 597.2(W)×61.8(H) ×15.5(D) mm |
| Treatment | Antiglare (Haze 25%), Hard coating (3H) |
| Luminance | 700 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 15 (Typ.)(G to G) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Operating Mode | ADS, Normally Black, Transmissive |
| Support Color | 16.7M |
| Light Source | WLED , 30K hours , With LED Driver |
| Weight | - |
| Designed For | Digital Signage, Outdoor High Brightness ,Stretched Bar LCD |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | LVDS (1 ch, 8-bit) , 30 pins Connector |
| Power Supply | 12.0V (Typ.)(With BL) |
| Environment | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
Why Choose Us :
According to customers' various requests,
we can match all accessories which inclusive of driver board,
touch-screen, LED backlight & LVDS cables. TFT LCD,
LCD panel, LCD display,LCD screen, LCD monitor,
LCD module from 2.2 inch to 88 inch.
Quality promised, 100% original,fast delivery,
also enjoy one year guarantee !
Shipping and Package :
1)All of our product will be testing before shipping . So you can be assured the quality of our products
2) All Panels are packed with new and firm carton, capable of long distance transportation.
3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT
4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.
FAQ:
Q: How do you ship my goods DV231FHM-NV1 ?
A: We can shipping all over the world.via DHL,UPS,Fedex and EMS, the packaging is very safe and strong.
Q: Are you manufactory or trade company ?
A: We are a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.
Q: Can You declare my order of lcd display screen DV231FHM-NV1 at a very low value ?
A: Yes , we can . pls inform us before shipping .
Q: How long is the warranty of DV231FHM-NV1 ?
A: 90 days warranty .
