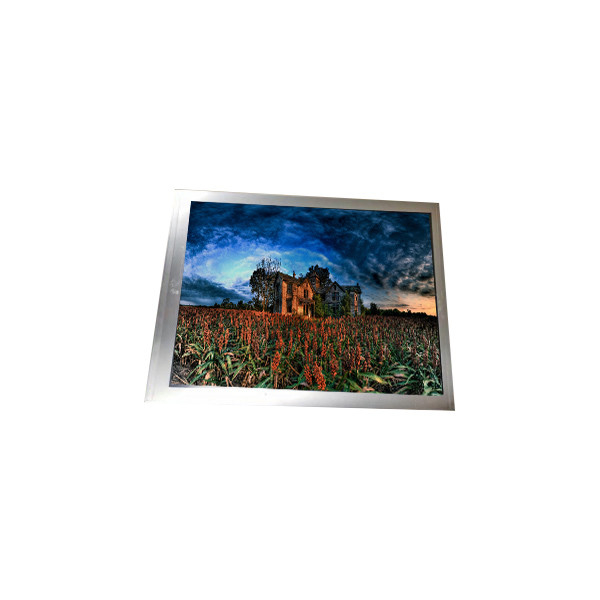

27.0 Inch LCD Display Panel M270QAN02.5 CELL LCD Screen
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | M270QAN02.5 CELL |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | M270QAN02.5 CELL | Screen Size: | 27.0" |
|---|---|---|---|
| Resolution: | 3840(RGB)×2160, UHD 163PPI | Active Area: | 596.16(W)×335.34(H) Mm |
| Outline Dim.: | 608.3(W)×349.3(H)×1.31(D) | Treatment: | Antiglare (Haze 25%), Hard Coating (3H) |
| Brightness: | 0 (cd/m²) | Contrast Ratio: | 1000:1 (Typ.) (TM) |
| Response Time: | 12 (Typ.)(G To G) Ms | Designed For: | Desktop Monitor |
| Highlight: | 195PPI A030JN01 V1 LCD Screen,AUO 3.0 Inch LCD Display Panel,LCD Display Panel 400 cd/m2 |
||
Product Description
27.0 Inch LCD Display Panel M270QAN02.5 CELL LCD Screen
Product details :
| Brand | AUO |
| Model P/N | M270QAN02.5 CELL |
| Diagonal Size | 27.0" |
| Panel Type | a-Si TFT-LCD, CELL , FOB |
| Resolution | 3840(RGB)×2160, UHD 163PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 596.16(W)×335.34(H) mm |
| Bezel Opening | - |
| Outline Dim. | 608.3(W)×349.3(H)×1.31(D) |
| Treatment | Antiglare (Haze 25%), Hard coating (3H) |
| Luminance | 0 (cd/m²) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 12 (Typ.)(G to G) ms |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Operating Mode | AHVA, Normally Black, Transmissive |
| Glass Thickness | 0.50+0.50 mm |
| Transmissivity | 2.95% (Typ.)(with Polarizer) |
| Support Color | 1.07B 77% DCI-P3 |
| Light Source | No B/L , No Driver |
| Weight | 660g (Typ.) |
| Designed For | Desktop Monitor |
| Frame Rate | 65Hz |
| Touch Panel | Without |
| Driver IC list | Built-in COF 8 source chips |
| Interface Type | eDP (8 Lanes) , HBR1 (2.7G/lane) , 51 pins Connector |
| Power Supply | 12.0V (Typ.) |
| Environment | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
Why Choose Us :
According to customers' various requests,
we can match all accessories which inclusive of driver board,
touch-screen, LED backlight & LVDS cables. TFT LCD,
LCD panel, LCD display,LCD screen, LCD monitor,
LCD module from 2.2 inch to 88 inch.
Quality promised, 100% original,fast delivery,
also enjoy one year guarantee !
Shipping and Package :
1)All of our product will be testing before shipping . So you can be assured the quality of our products
2) All Panels are packed with new and firm carton, capable of long distance transportation.
3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT
4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.
FAQ:
Q: How to order lcd panel M270QAN02.5 CELL ?
A: We accept T/T , Paypal , western union .
Q: Can you tested the M270QAN02.5 CELL before shipping ?
A: Of course , lcd screen M270QAN02.5 CELL was Strictly tested before shipping.
Q: What happen if the M270QAN02.5 CELL received can't work ?
A: M270QAN02.5 CELL lcd panel was tesed before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel .
Q: How long the warranty of the M270QAN02.5 CELL ?
A: 90 days .
