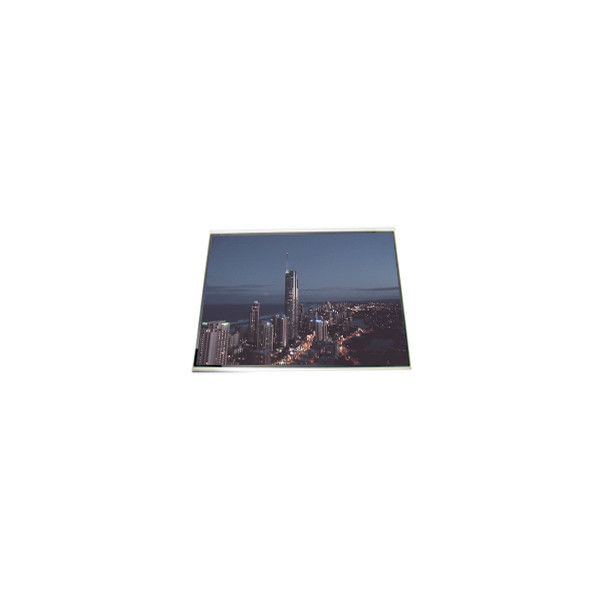

5.7 inch A-Si TFT Lcd Panel HSD057BHF2-P00 LCD Screen
Product Details:
| Place of Origin: | China |
| Brand Name: | HannStar |
| Model Number: | HSD057BHF2-P00 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | HSD057BHF2-P00 | Screen Size: | 5.7" |
|---|---|---|---|
| Resolution: | 720(RGB)×1520 294PPI | Active Area: | 62.1(W)×131.1(H) Mm |
| Outline Size: | 64.1(W)×136.1(H)×0.8(D) Mm | Surface: | Without Polarizer |
| Viewing Angle: | 85/85/85/85 (Typ.)(CR≥10) | Panel Weight: | 1000:1 (Typ.) (TM) |
| Lamp Type: | No B/L | Application: | Mobile Phone |
| Highlight: | AUO A-Si TFT LCD MODULES,186PPI A030FL01 V1 LCD Screen,RGB vertical bar TFT Lcd Panel |
||
Product Description
5.7 inch A-Si TFT Lcd Panel HSD057BHF2-P00 LCD Screen
Product details :
| Brand | HannStar |
| Model P/N | HSD057BHF2-P00 |
| Diagonal Size | 5.7" |
| Panel Type | a-Si TFT-LCD, CELL, Q-CUT (Full Cell) |
| Resolution | 720(RGB)×1520 294PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 62.1(W)×131.1(H) mm |
| Bezel Opening | - |
| Outline Size | 64.1(W)×136.1(H)×0.8(D) mm |
| Surface | Without Polarizer |
| Brightness | 0 cd/m² |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Display Mode | IPS Pro, Normally Black, Transmissive |
| Best View on | Symmetry |
| Response Time | 26 (Max.)(Tr+Td) |
| Glass Depth | 0.40+0.40 mm |
| Transmissivity | 12.1% (Typ.)(without Polarizer) |
| Display Colors | 16.7M 70%NTSC |
| Lamp Type | No B/L |
| Frequency | - |
| Touch Screen | Without |
| Driver IC | COG Suggest OTM1290A-CH11, HX8394-F, ILI9881C-04, JD9365DA, ST7703 |
| Panel Weight | - |
| Application | Mobile Phone |
| Environment | Operating Temp.: -20 ~ 70 °C ;Storage Temp.: -40 ~ 80 °C |
Why Choose Us :
According to customers' various requests,
we can match all accessories which inclusive of driver board,
touch-screen, LED backlight & LVDS cables. TFT LCD,
LCD panel, LCD display,LCD screen, LCD monitor,
LCD module from 2.2 inch to 88 inch.
Quality promised, 100% original,fast delivery,
also enjoy one year guarantee !
Shipping and Package :
1)All of our product will be testing before shipping . So you can be assured the quality of our products
2) All Panels are packed with new and firm carton, capable of long distance transportation.
3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT
4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.
FAQ:
Q: How to order lcd panel HSD057BHF2-P00 ?
A: We accept T/T , Paypal , western union .
Q: Can you tested the HSD057BHF2-P00 before shipping ?
A: Of course , lcd screen HSD057BHF2-P00 was Strictly tested before shipping.
Q: What happen if the HSD057BHF2-P00 received can't work ?
A: HSD057BHF2-P00 lcd panel was tesed before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel .
Q: How long the warranty of the HSD057BHF2-P00 ?
A: 90 days .
