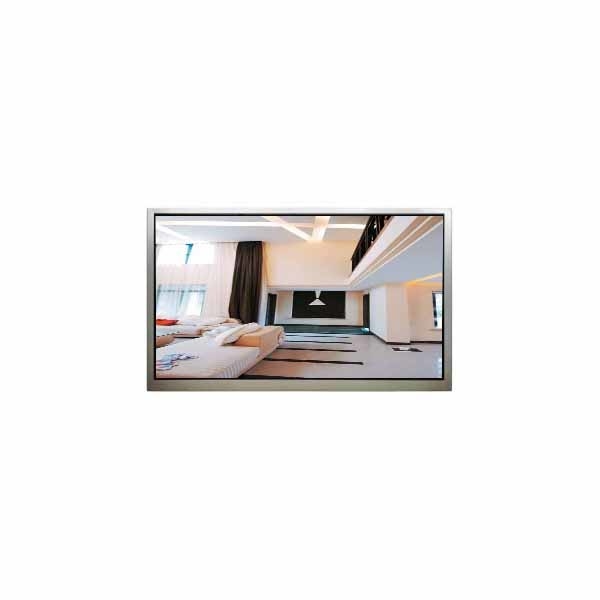

10.4 Inch LCD Display HSD104JPW1-B10 960*1280 Lcd Panel Display
Product Details:
| Place of Origin: | China |
| Brand Name: | HannStar |
| Model Number: | HSD104JPW1-B10 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | HSD104JPW1-B10 | Screen Size: | 10.4" |
|---|---|---|---|
| Resolution: | 960(RGB)×1280, Quad-VGA 153PPI | Active Area: | 158.4(W)×211.2(H) Mm |
| Outline Size: | 172.4(W)×227.9(H)×14.4(D) Mm | Display Colors: | 16.7M 70%NTSC |
| Brightness: | 1000 Cd/m² (Typ.) | Viewing Angle: | 85/85/85/85 (Typ.)(CR≥10) |
| Contrast Ratio: | 1500:1 (Typ.) (TM) | Application: | Outdoor High Brightness、Automotive Display |
| Highlight: | 480×272 Lcd Panel Display,186PPI LCD Screen Display Panel,A030FL01 V0 LCD Display Panel |
||
Product Description
10.4 Inch LCD Display HSD104JPW1-B10 960*1280 Lcd Panel Display
Product details :
| Brand | HannStar |
| Model P/N | HSD104JPW1-B10 |
| Diagonal Size | 10.4" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 960(RGB)×1280, Quad-VGA 153PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 158.4(W)×211.2(H) mm |
| Bezel Opening | - |
| Outline Size | 172.4(W)×227.9(H)×14.4(D) mm |
| Brightness | 1000 cd/m² (Typ.) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Best View on | Symmetry |
| Display Colors | 16.7M 70%NTSC |
| Frequency | 60Hz |
| Weight | - |
| Surface | Clear, Hard coating |
| Contrast Ratio | 1500:1 (Typ.) (TM) |
| Display Mode | IPS Pro, Normally Black, Transmissive |
| Response Time | 30 (Max.)(Tr+Td) |
| Lamp Type | 10S3P WLED , 30K hours , Without Driver |
| Touch Screen | Without |
| Application | Outdoor High Brightness,Automotive Display |
| Signal Interface | LVDS (1 ch, 8-bit), 60 pinsFPC |
| Input Voltage | 3.3/6.0/-6.0/20/-10V (Typ.)(VDD/VDDP/VDDN/VGH/VGL) |
| Environment | Operating Temp.: -30 ~ 85 °C ;Storage Temp.: -40 ~ 90 °C; Vibration Level: 2.9G (28.4 m/s²) |
Why Choose Us :
According to customers' various requests,
we can match all accessories which inclusive of driver board,
touch-screen, LED backlight & LVDS cables. TFT LCD,
LCD panel, LCD display,LCD screen, LCD monitor,
LCD module from 2.2 inch to 88 inch.
Quality promised, 100% original,fast delivery,
also enjoy one year guarantee !
Shipping and Package :
1)All of our product will be testing before shipping . So you can be assured the quality of our products
2) All Panels are packed with new and firm carton, capable of long distance transportation.
3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT
4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.
FAQ:
Q: How to make payment of HSD104JPW1-B10 ?
A: We accept T/T , Paypal , western union .
Q: Can you give me a discount if I need a large quantity of HSD104JPW1-B10 ?
A: Of course!If you make a large order, we will give you a discount.
Q: How can I trace my order of HSD104JPW1-B10 ?
A: we will give you tracking number then you can trace your order from website.
Q: Do you accept sample orders of HSD104JPW1-B10 ?
A: Of course!sample order is welcome !
