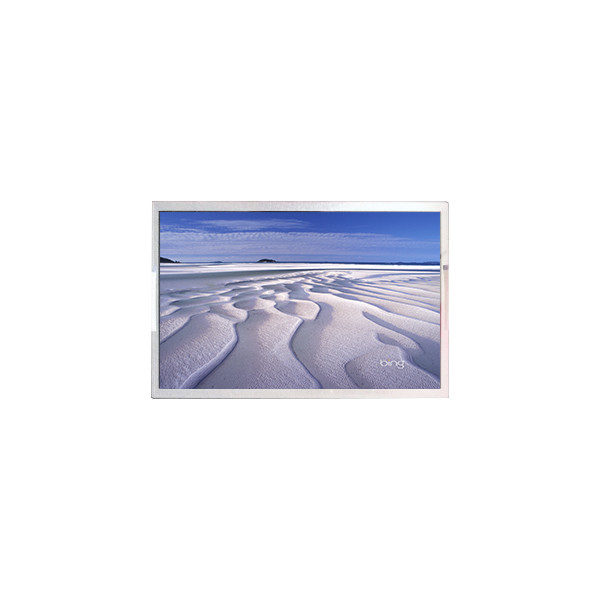

17.3 Inch TFT-LCD Panel B173HAN05.1 HW0A Lcd Display
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | B173HAN05.1 HW0A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | B173HAN05.1 HW0A | Screen Size: | 17.3" |
|---|---|---|---|
| Resolution: | 1920(RGB)×1080, FHD 127PPI | Display Size: | 381.888(W)×214.812(H) Mm |
| Outline Size: | 389.89(W)×238.31(H) ×3.5(D) Mm | Treatment: | Antiglare, Hard Coating (3H) |
| Brightness: | 300 Cd/m² (Typ.) | Panel Weight: | 1000:1 (Typ.) (TM) |
| Shape Style: | Slim (PCBA Flat, T≤3.2mm) | Designed For: | Laptop ，Gaming |
| Highlight: | AUO 3.0 Inch TFT LCD Panel,A030DW02 V0 TFT LCD Panel,A030DW02 V0 lcd display |
||
Product Description
17.3 Inch TFT-LCD Panel B173HAN05.1 HW0A Lcd Display
Product details :
| Brand | AUO |
| Model P/N | B173HAN05.1 HW0A |
| Diagonal Size | 17.3" |
| Panel Type | LTPS TFT-LCD, LCM |
| Resolution | 1920(RGB)×1080, FHD 127PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 381.888(W)×214.812(H) mm |
| Bezel Opening | - |
| Outline Dim. | 389.89(W)×238.31(H) ×3.5(D) mm |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 300 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 8 (Typ.)(Tr+Td), 5 (Typ.)(G to G), 3 (Typ.)(G to G)(OD) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Operating Mode | AHVA, Normally Black, Transmissive |
| Support Color | 16.7M 100% sRGB |
| Light Source | WLED , 15K hours , With LED Driver |
| Shape Style | Slim (PCBA Flat, T≤3.2mm) |
| Designed For | Laptop ,Gaming |
| Frame Rate | 300Hz |
| Touch Panel | Without |
| Interface Type | eDP (4 Lanes) , eDP1.3 , 40 pins Connector |
| Power Supply | 3.3V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
Why Choose Us :
According to customers' various requests,
we can match all accessories which inclusive of driver board,
touch-screen, LED backlight & LVDS cables. TFT LCD,
LCD panel, LCD display,LCD screen, LCD monitor,
LCD module from 2.2 inch to 88 inch.
Quality promised, 100% original,fast delivery,
also enjoy one year guarantee !
Shipping and Package :
1)All of our product will be testing before shipping . So you can be assured the quality of our products
2) All Panels are packed with new and firm carton, capable of long distance transportation.
3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT
4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.
FAQ:
Q: How to make payment of B173HAN05.1 HW0A ?
A: We accept T/T , Paypal , western union .
Q: Can you give me a discount if I need a large quantity of B173HAN05.1 HW0A ?
A: Of course!If you make a large order, we will give you a discount.
Q: Do you accept sample orders of B173HAN05.1 HW0A ?
A: Of course!sample order is welcome !
Q: How long will I receive my goods B173HAN05.1 HW0A ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
