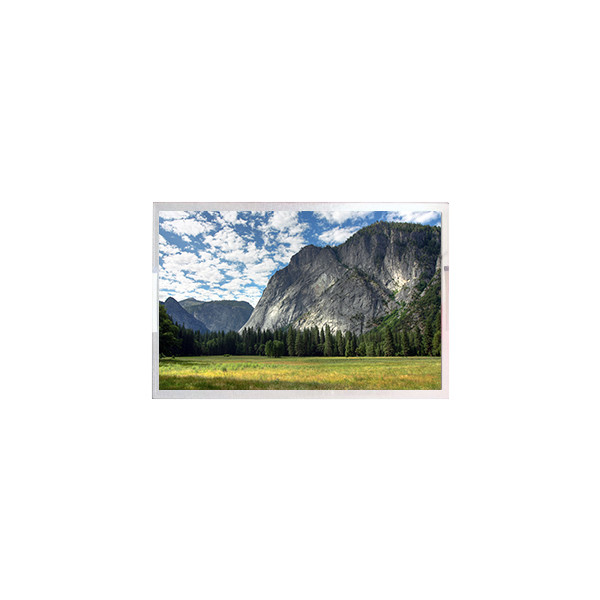

Original 23.8 Inch M238HAN02.0 CELL Lcd Screen Display
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | M238HAN02.0 CELL |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | M238HAN02.0 CELL | Screen Size: | 23.8" |
|---|---|---|---|
| Screen Type: | A-Si TFT-LCD, CELL , FOB | Resolution: | 1920(RGB)×1080, FHD 92PPI |
| Active Area: | 527.04(W)×296.46(H) Mm | Outline Dim.: | 534.04 × 308.16 × 1.31 (H×V×D) |
| Responding: | 14 (Typ.)(G To G) | Viewing Angle: | 89/89/89/89 (Typ.)(CR≥10) |
| Frame Rate: | 75Hz | Designed For: | Desktop Monitor |
| Highlight: | A030DW01 V3 LCD Screen Display,3.0 Inch RGB triangle LCD module,Digital Video Camera LCD module |
||
Product Description
Original 23.8 Inch M238HAN02.0 CELL Lcd Screen Display
Product details :
| Brand | AUO |
| Model P/N | M238HAN02.0 CELL |
| Diagonal Size | 23.8" |
| Panel Type | a-Si TFT-LCD, CELL , FOB |
| Resolution | 1920(RGB)×1080, FHD 92PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 527.04(W)×296.46(H) mm |
| Bezel Opening | - |
| Outline Dim. | 534.04 × 308.16 × 1.31 (H×V×D) |
| Treatment | Antiglare (Haze 25%) |
| Luminance | 0 cd/m² |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 14 (Typ.)(G to G) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Operating Mode | AHVA, Normally Black, Transmissive |
| Glass Thickness | 0.50+0.50 mm |
| Transmissivity | 5.0% (Typ.)(with Polarizer) |
| Support Color | 16.7M 77% NTSC |
| Light Source | No B/L |
| Weight | 480g (Typ.) |
| Designed For | Desktop Monitor |
| Frame Rate | 75Hz |
| Touch Panel | Without |
| Driver IC list | Built-in COF 6 source chips |
| Interface Type | LVDS (2 ch, 8-bit) , 30 pins Connector |
| Power Supply | 5.0V (Typ.) |
| Environment | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
Why Choose Us :
According to customers' various requests,
we can match all accessories which inclusive of driver board,
touch-screen, LED backlight & LVDS cables. TFT LCD,
LCD panel, LCD display,LCD screen, LCD monitor,
LCD module from 2.2 inch to 88 inch.
Quality promised, 100% original,fast delivery,
also enjoy one year guarantee !
Shipping and Package :
1)All of our product will be testing before shipping . So you can be assured the quality of our products
2) All Panels are packed with new and firm carton, capable of long distance transportation.
3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT
4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.
FAQ:
Q: If I order M238HAN02.0 CELL now,when will you ship the goods ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: Do you accept sample orders for M238HAN02.0 CELL ?
A: Of course!sample order is welcome !
Q: How long is the warranty of M238HAN02.0 CELL ?
A: 90days warranty .
Q: Can you give me a discount if I need a large quantity of M238HAN02.0 CELL ?
A: Of course!If you make a large order, we will give you a discount.
