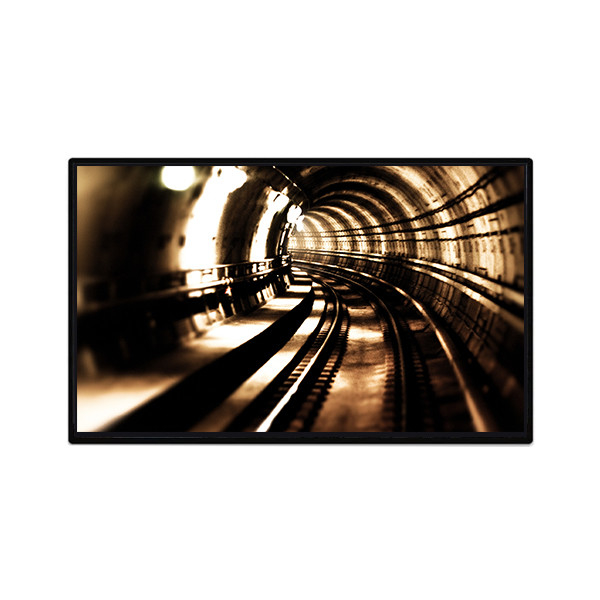

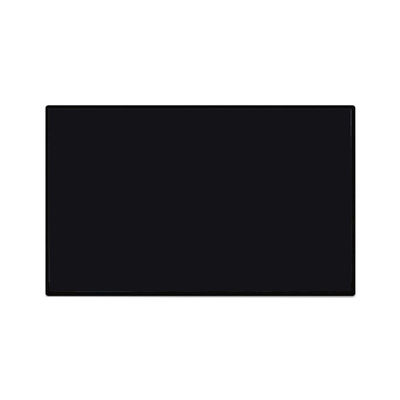

10.1 INCH 4K TFT LCD DISPLAY TV101QUB-N00
Product Details:
| Place of Origin: | China |
| Brand Name: | BOE |
| Model Number: | TV101QUB-N00 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | TV101QUB-N00 | Screen Size: | 10.1" |
|---|---|---|---|
| Pixel Number: | 3840(RGB)×2160, UHD 437PPI | Active Area: | 222.912(W)×125.388(H) Mm |
| Outline Size: | 228.312(H)×131.835(V) Mm | Treatment: | Anti Fingerprint, Hard Coating |
| Brightness: | 0 Cd/m² | Contrast: | 1500:1 (Typ.) (TM) |
| Support Color: | 16.7M 96%DCI-P3 | Designed For: | Pad & Tablet |
| Highlight: | A030DW01 V1 TFT LCD DISPLAY,3.0 INCH Lcd Tft Display Panel,60Hz Lcd Tft Display Panel |
||
Product Description
10.1 INCH 4K TFT LCD DISPLAY TV101QUB-N00
Product details :
| Brand | BOE |
| Model P/N | TV101QUB-N00 |
| Diagonal Size | 10.1" |
| Panel Type | a-Si TFT-LCD, CELL, FOB |
| Resolution | 3840(RGB)×2160, UHD 437PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 222.912(W)×125.388(H) mm |
| Bezel Opening | - |
| Outline Dim. | 228.312(H)×131.835(V) mm |
| Treatment | Anti Fingerprint, Hard coating |
| Luminance | 0 cd/m² |
| Contrast Ratio | 1500:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 45 (Typ.)(Tr+Td) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Operating Mode | HADS, Normally Black, Transmissive |
| Plate Thickness | - |
| Transmittance | 3.45% (Typ.)(with Polarizer) |
| Support Color | 16.7M 96%DCI-P3 |
| Light Source | No B/L, W/O Driver |
| Weight | TBD |
| Designed For | Pad & Tablet |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| D-IC Detail | COF Built-in 1 source chips |
| Interface Type | eDP (4 Lanes) , HBR2 (5.4G/lane) , 40 pinsConnector |
| Power Supply | 3.3V (Typ.) |
| Environment | Operating Temperature: 0 ~ 40 °C ; Storage Temperature: -20 ~ 60 °C |
Why Choose Us :
According to customers' various requests,
we can match all accessories which inclusive of driver board,
touch-screen, LED backlight & LVDS cables. TFT LCD,
LCD panel, LCD display,LCD screen, LCD monitor,
LCD module from 2.2 inch to 88 inch.
Quality promised, 100% original,fast delivery,
also enjoy one year guarantee !
Shipping and Package :
1)All of our product will be testing before shipping . So you can be assured the quality of our products
2) All Panels are packed with new and firm carton, capable of long distance transportation.
3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT
4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.
FAQ:
Q: How can I trace my order of TV101QUB-N00 ?
A: we will give you tracking number then you can trace your order from website.
Q: Can you give me a discount if I need a large quantity of TV101QUB-N00 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Can I pay my order of TV101QUB-N00 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: How long is the warranty ?
A: We offer 90days warranty .
