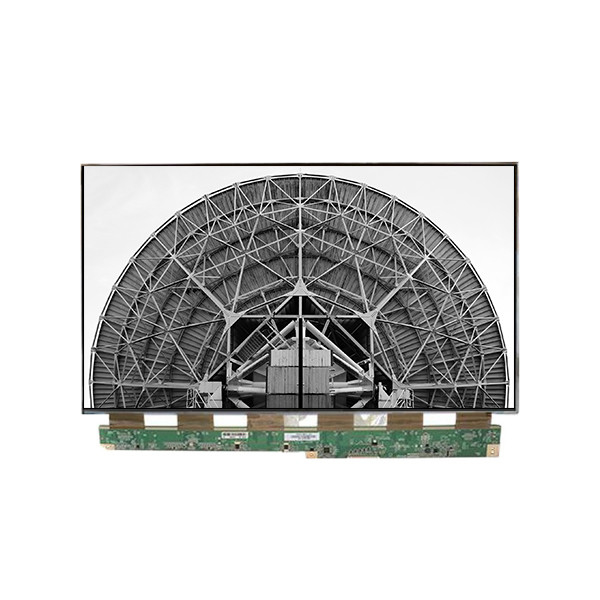

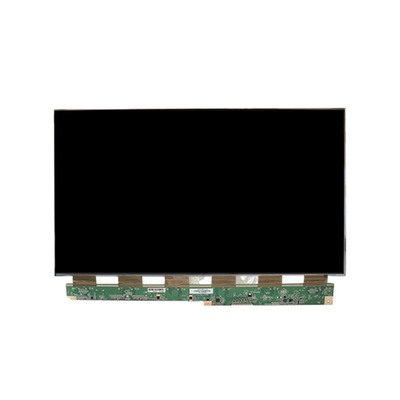

21.5 Inch 1920*1080 LCD Screen MV215FHB-N01 LCD Display Panel
Product Details:
| Place of Origin: | China |
| Brand Name: | BOE |
| Model Number: | MV215FHB-N01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | MV215FHB-N01 | Screen Size: | 21.5" |
|---|---|---|---|
| Pixel Number: | 1920(RGB)×1080, FHD 102PPI | Active Area: | 476.064(W)×267.786(H) Mm |
| Outline Size: | 483.464(W)×278.676(H)×1.32(D) Mm | Surface: | Antiglare (Haze 25%), Hard Coating (3H) |
| Brightness: | 0 Cd/m² | Contrast: | 1000:1 (Typ.) (TM) |
| Frequency: | 60Hz | Application: | Desktop Monitor |
| Highlight: | 3.0 Inch 320×240 LCD Display Panel,RGB triangle LCD Display Panels,135PPI 320×240 LCD Screen |
||
Product Description
21.5 Inch 1920*1080 LCD Screen MV215FHB-N01 LCD Display Panel
Product details :
| Brand | BOE |
| Model P/N | MV215FHB-N01 |
| Diagonal Size | 21.5" |
| Panel Type | a-Si TFT-LCD, CELL, FOB |
| Resolution | 1920(RGB)×1080, FHD 102PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 476.064(W)×267.786(H) mm |
| Bezel Opening | - |
| Outline Size | 483.464(W)×278.676(H)×1.32(D) mm |
| Surface | Antiglare (Haze 25%), Hard coating (3H) |
| Brightness | 0 cd/m² |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Display Mode | ADS, Normally Black, Transmissive |
| Best View on | Symmetry |
| Response Time | 14 (Typ.)(G to G) |
| Glass Depth | 0.50+0.50 mm |
| Transmissivity | 5.1% (Typ.)(with Polarizer) |
| Display Colors | 16.7M 72%NTSC |
| Lamp Type | No B/L |
| Frequency | 60Hz |
| Touch Screen | Without |
| Driver IC | COF Built-in 6 source chips |
| Panel Weight | 400g (Typ.) |
| Application | Desktop Monitor |
| Signal Interface | LVDS (2 ch, 8-bit), 30 pinsConnector |
| Input Voltage | 5.0V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
Why Choose Us :
According to customers' various requests,
we can match all accessories which inclusive of driver board,
touch-screen, LED backlight & LVDS cables. TFT LCD,
LCD panel, LCD display,LCD screen, LCD monitor,
LCD module from 2.2 inch to 88 inch.
Quality promised, 100% original,fast delivery,
also enjoy one year guarantee !
Shipping and Package :
1)All of our product will be testing before shipping . So you can be assured the quality of our products
2) All Panels are packed with new and firm carton, capable of long distance transportation.
3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT
4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.
FAQ:
Q: How long is the warranty ?
A: We offer 90days warranty .
Q: If I place order now,when will you ship the goods of MV215FHB-N01 ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: Can You declare my order of MV215FHB-N01 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: How to make payment of MV215FHB-N01 ?
A: We accept T/T , Paypal , western union .
