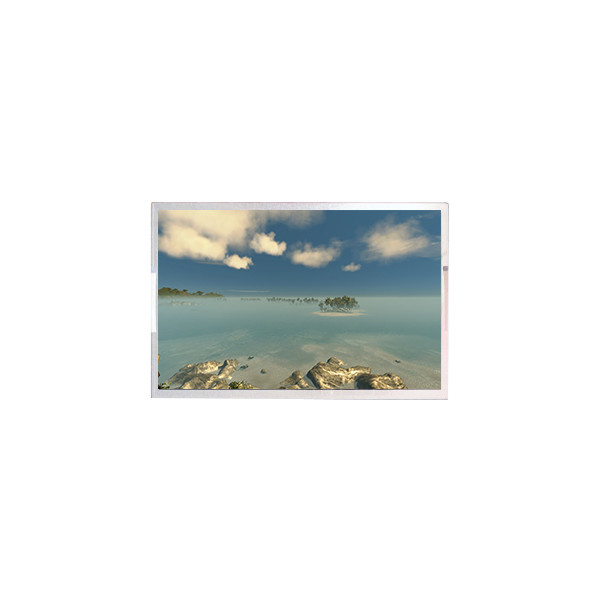

10.1 Inch 1920*1080 LCD Monitor Screen AV101FHT-T10-28P0
Product Details:
| Place of Origin: | China |
| Brand Name: | BOE |
| Model Number: | AV101FHT-T10-28P0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | AV101FHT-T10-28P0 | Screen Size: | 10.1" |
|---|---|---|---|
| Pixel Number: | 1920(RGB)×1080, FHD 218PPI | Active Area: | 223.488(W)×125.712(H) Mm |
| Pixel Format: | RGB Vertical Stripe | Light Source: | WLED [10S3P] , 30K Hours , W/O Driver |
| Outline Dim.: | 244.85(H)×159.25(V) Mm | Treatment: | Antiglare (Haze 10%), Hard Coating (3H), Reflection |
| Luminance: | 700 Cd/m² (Typ.) | Designed For: | Outdoor High Brightness ，Automotive Display |
| Highlight: | A030DN02 V0 LCD Monitor Screen,RGB triangle LCD Monitor Screen,135PPI LCD Monitor Screen |
||
Product Description
10.1 Inch 1920*1080 LCD Monitor Screen AV101FHT-T10-28P0
Product details :
Hello, before placing orders:
To avoid the wrong order or buy wrong product, please double check your model and screen size and part number. If you are not sure the purpose compatibility, please send your original specific models (screen) model on the back of the screen and photos sent to us; Usually we will send the LED panel is compatible model, it may be related to your original screen model is not completely the same. But we can make sure it is suitable for the model
Note: product prototype number of links and compatible model random delivery. If you have any special requirements you need to specify the type, please inform us before order. Thank you very much.
| Brand | BOE |
| Model P/N | AV101FHT-T10-28P0 |
| Diagonal Size | 10.1" |
| Panel Type | a-Si TFT-LCD, Assembly |
| Resolution | 1920(RGB)×1080, FHD 218PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 223.488(W)×125.712(H) mm |
| Bezel Opening | - |
| Outline Dim. | 244.85(H)×159.25(V) mm |
| Treatment | Antiglare (Haze 10%), Hard coating (3H), Reflection |
| Luminance | 700 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 30 (Typ.)(Tr+Td) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Operating Mode | ADS, Normally Black, Transmissive |
| Support Color | 16.7M 70% NTSC |
| Light Source | WLED [10S3P] , 30K hours , W/O Driver |
| Weight | 380±38g |
| Designed For | Outdoor High Brightness ,Automotive Display |
| Frame Rate | 60Hz |
| Touch Panel | PCAP, I²C |
| Interface Type | LVDS (2 ch, 8-bit) , 60 pins Connector |
| Power Supply | 3.3V (Typ.) |
| Environment | Operating Temperature: -30 ~ 85 °C ; Storage Temperature: -40 ~ 90 °C |
