Name: NE156FHM-NA42 15.6 inch LCD DISPLAY SCREEN PANEL
Brand: Shenzhen Yongsheng Innovation Technology Co., Ltd
SKU: NE156FHM-NA42
Availability: InStock

Brand Name:	BOE
Model Number:	NE156FHM-NA42
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

NE156FHM-NA42

Screen Size:

15.6"

Screen Type:

Oxide TFT-LCD, Assembly

Resolution:

1920(RGB)×1080, FHD 141PPI

Active Area:

344.16(W)×193.59(H) Mm

Outline Dim.:

349.16(H)×215.4(V)×3.65(D)mm

Brightness:

400 Cd/m² (Typ.)

Contrast:

1300:1 (Typ.) (TM)

Response Time:

25 (Typ.)(Tr+Td)

Designed For:

Laptop

Supply Ability:

100000 Unit/Units per Month

Highlight:

Hard Coating Lcd Display Screen

A030DN01 VG Lcd Display Screen

Product Description

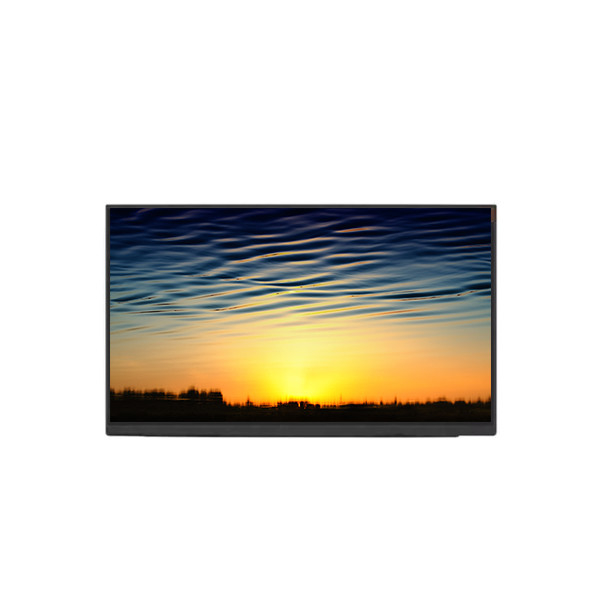

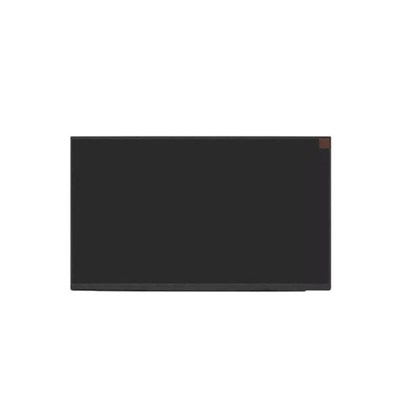

NE156FHM-NA42 15.6 inch LCD DISPLAY SCREEN PANEL

Product details :

Brand	BOE
Model P/N	NE156FHM-NA42
Diagonal Size	15.6"
Panel Type	Oxide TFT-LCD, Assembly
Resolution	1920(RGB)×1080, FHD 141PPI
Pixel Format	RGB Vertical Stripe
Active Area	344.16(W)×193.59(H) mm
Bezel Opening	-
Outline Dim.	349.16(H)×215.4(V)×3.65(D)mm
Treatment	Antiglare, Hard coating (7H)
Luminance	400 cd/m² (Typ.)
Contrast Ratio	1300:1 (Typ.) (TM)
View Direction	Symmetry
Response Time	25 (Typ.)(Tr+Td)
Viewing Angle	85/85/85/85 (Typ.)(CR≥10)
Operating Mode	HADS, Normally Black, Transmissive
Support Color	16.7M 100%DCI-P3
Light Source	WLED [11S6P], 15K hours, With LED Driver
Form Style	Slim (PCBA Flat, T≤3.2mm)
Designed For	Laptop
Frame Rate	60Hz
Touch Panel	PCAP, SPI
Interface Type	eDP (2 Lanes), eDP1.4 , HBR1 (2.7G/lane) , 30 pinsConnector
Power Supply	3.3V (Typ.)
Environment	Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C

Why Choose Us :

According to customers' various requests,

we can match all accessories which inclusive of driver board,

touch-screen, LED backlight & LVDS cables. TFT LCD,

LCD panel, LCD display,LCD screen, LCD monitor,

LCD module from 2.2 inch to 88 inch.

Quality promised, 100% original,fast delivery,

also enjoy one year guarantee !

Shipping and Package :

NE156FHM-NA42 15.6 inch LCD DISPLAY SCREEN PANEL 0

1)All of our product will be testing before shipping . So you can be assured the quality of our products

2) All Panels are packed with new and firm carton, capable of long distance transportation.

3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT

4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.

FAQ:

Q: How to make payment of NE156FHM-NA42 ?

A: We accept T/T , Paypal , western union .

Q: Can you give me a discount if I need a large quantity of NE156FHM-NA42 ?

A: Of course!If you make a large order, we will give you a discount.

Q: How can I trace my order of NE156FHM-NA42 ?

A: we will give you tracking number then you can trace your order from website.

Q: Do you accept sample orders of NE156FHM-NA42 ?

A: Of course!sample order is welcome !
