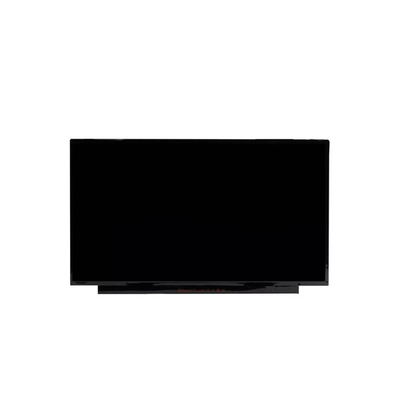

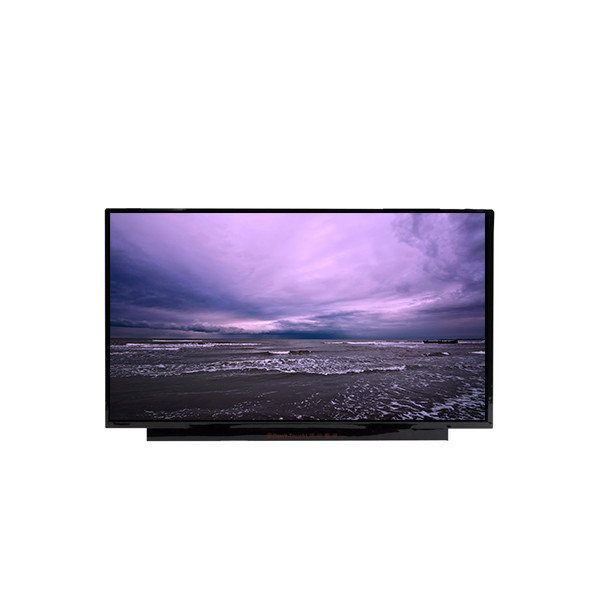

14.0 inch TFT-LCD Panel NT140WHM-T01 LCD Display
Product Details:
| Place of Origin: | China |
| Brand Name: | BOE |
| Model Number: | NT140WHM-T01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | NT140WHM-T01 | Screen Size: | 14.0" |
|---|---|---|---|
| Screen Type: | A-Si TFT-LCD, LCM | Resolution: | 1366(RGB)×768, WXGA 112PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 309.399(W)×173.952(H) Mm |
| Brightness: | 220 Cd/m² (Typ.) | Contrast: | 500:1 (Typ.) (TM) |
| Touch Screen: | On-Cell Touch, I²C | Application: | Laptop |
| Highlight: | A030DN01 VF LCD Display,AUO 320×240 Full Hd Tft Display,135PPI TFT LCD Panel |
||
Product Description
14.0 inch TFT-LCD Panel NT140WHM-T01 LCD Display
Product details :
| Brand | BOE |
| Model P/N | NT140WHM-T01 |
| Diagonal Size | 14.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1366(RGB)×768, WXGA 112PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 309.399(W)×173.952(H) mm |
| Bezel Opening | - |
| Outline Size | 320.4(W)×205.1(H)×3.2(D) mm |
| Brightness | 220 cd/m² (Typ.) |
| Viewing Angle | 45/45/20/40 (Typ.)(CR≥10) |
| Best View on | 6 o'clock |
| Display Colors | 262K 45%NTSC |
| Frequency | 60Hz |
| Shape Style | Slim (PCBA Flat, T≤3.2mm) |
| Surface | Hard coating (3H) |
| Contrast Ratio | 500:1 (Typ.) (TM) |
| Display Mode | TN, Normally White, Transmissive |
| Response Time | 12 (Typ.)(Tr+Td) |
| Lamp Type | 8S4P WLED , 15K hours , With LED Driver |
| Touch Screen | On-Cell Touch, I²C |
| Application | Laptop |
| Signal Interface | eDP (1 Lane), eDP1.2 , HBR1 (2.7G/lane) , 40 pinsConnector |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ;Storage Temp.: -20 ~ 60 °C |
Why Choose Us :
According to customers' various requests,
we can match all accessories which inclusive of driver board,
touch-screen, LED backlight & LVDS cables. TFT LCD,
LCD panel, LCD display,LCD screen, LCD monitor,
LCD module from 2.2 inch to 88 inch.
Quality promised, 100% original,fast delivery,
also enjoy one year guarantee !
Shipping and Package :
1)All of our product will be testing before shipping . So you can be assured the quality of our products
2) All Panels are packed with new and firm carton, capable of long distance transportation.
3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT
4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.
FAQ:
Q: How long is the warranty ?
A: We offer 90days warranty .
Q: How long will I receive my goods NT140WHM-T01 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: Do you accept sample orders of NT140WHM-T01 ?
A: Of course!sample order is welcome !
Q: Can I pay my order of NT140WHM-T01 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
