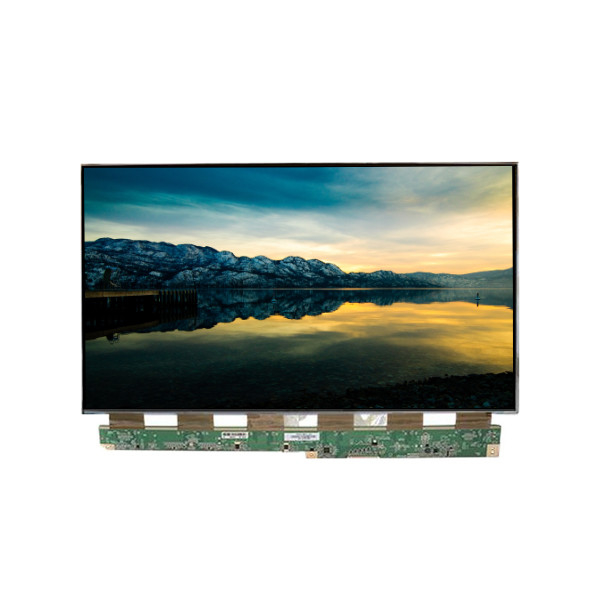

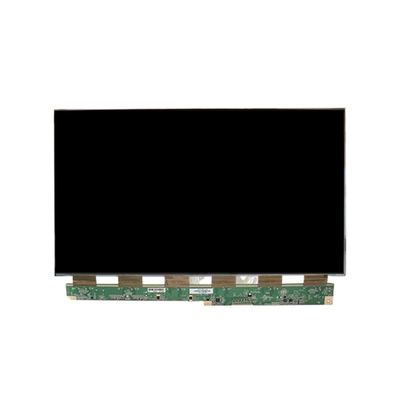

23.8 inch Lcd Panel 1920*1080 MV238FHB-N01 LCD Display
Product Details:
| Place of Origin: | China |
| Brand Name: | BOE |
| Model Number: | MV238FHB-N01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | MV238FHB-N01 | Screen Size: | 23.8" |
|---|---|---|---|
| Pixel Number: | 1920(RGB)×1080, FHD 92PPI | Active Area: | 527.04(W)×296.46(H) Mm |
| Outline Size: | 534.84(W)×308.16(H)×1.32(D) Mm | Treatment: | Antiglare, Hard Coating (3H) |
| Used For: | Desktop Monitor | Number Of Color: | 16.7M 74%NTSC |
| Backlight: | No B/L, No Driver | Refresh Rate: | 60Hz |
| Highlight: | 320RGB×240 Tft Lcd Panel,A030DN01 VC LCD Display,3.0inch AUO Tft Lcd Panel |
||
Product Description
23.8 inch Lcd Panel 1920*1080 MV238FHB-N01 LCD Display
Product details :
| Brand | BOE |
| Model P/N | MV238FHB-N01 |
| Diagonal Size | 23.8" |
| Panel Type | a-Si TFT-LCD, CELL, FOB |
| Resolution | 1920(RGB)×1080, FHD 92PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 527.04(W)×296.46(H) mm |
| Bezel Opening | - |
| Outline Size | 534.84(W)×308.16(H)×1.32(D) mm |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 0 cd/m² |
| Contrast Ratio | 1000 : 1 (Typ.) (TM) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Response | 14 (Typ.)(G to G) ms |
| Good View at | Symmetry |
| Work Mode | ADS, Normally Black, Transmissive |
| Glass Thickness | 0.50+0.50 mm |
| Transmissivity | 4.9% (Typ.)(with Polarizer) |
| Color Depth | 16.7M 74%NTSC |
| Backlight | No B/L, No Driver |
| Mass | 538g (Typ.) |
| Used for | Desktop Monitor |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Driver IC list | Built-in COF 4 source chips |
| Signal Type | LVDS (2 ch, 8-bit), 30 pinsConnector |
| Voltage Supply | 5.0V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
Why Choose Us :
According to customers' various requests,
we can match all accessories which inclusive of driver board,
touch-screen, LED backlight & LVDS cables. TFT LCD,
LCD panel, LCD display,LCD screen, LCD monitor,
LCD module from 2.2 inch to 88 inch.
Quality promised, 100% original,fast delivery,
also enjoy one year guarantee !
Shipping and Package :
1)All of our product will be testing before shipping . So you can be assured the quality of our products
2) All Panels are packed with new and firm carton, capable of long distance transportation.
3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT
4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.
FAQ:
Q: How to make payment of MV238FHB-N01 ?
A: We accept T/T , Paypal , western union .
Q: If I place order now,when will you ship the goods of MV238FHB-N01 ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: How long will I receive my goods MV238FHB-N01 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: How long is the warranty ?
A: We offer 90 days warranty .
