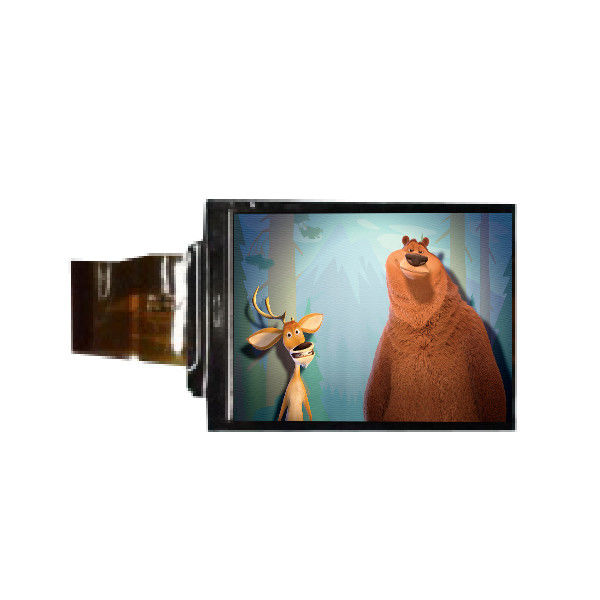

Name: AUO 3.0 Inch Lcd Screen A030DN01 V9 Lcd Display Modules
Brand: Shenzhen Yongsheng Innovation Technology Co., Ltd
SKU: A030DN01 V9
Availability: InStock

Brand Name:	AUO
Model Number:	A030DN01 V9
MOQ:	10pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

A030DN01 V9

Screen Size:

3inch

Pixel Number:

320(RGB)×240 (QVGA) 135PPI

Display Size:

60(W)×45(H) Mm

Bezel Opening:

62.4(Horizontal)×47.4(Vertical) Mm

Outline Size:

70.2(W)×51.4(H) Mm

Brightness:

350 Cd/m² (Typ.)

Contrast Ratio:

300: 1 (Typ.) [Transmission]

Supply Ability:

100000 Unit/Units per Month

Highlight:

A030DN01 V9 Lcd Screen

AUO 3.0 Inch Tft Lcd Module

Digital Still Camera Lcd Display Modules

Product Description

AUO 3.0 inch lcd screen A030DN01 V9 lcd display modules

Product details :

AUO LCD SCREEN A030DN01 V9
manufacturer	AUO
Model Name	A030DN01 V9
screen size	3.0 inches
Screen type	a-Si TFT-LCD, LCD module
Resolution	320(RGB)×240, QVGA, 135PPI
Pixel	RGB triangle
Display size	60(W)×45(H) mm
Outline(mm)	70.2(W)×51.4(H) mm
Visual size	62.4(Horizontal)×47.4(Vertical) mm
Treatment	Hard coating
Brightness	350 cd/m² (Typ.)
Contrast	300:1 (Typ.) (transmission)
Best angle	6 o'clock
Optical mode	TN, normally white display, transmissive
Viewing angle	60/60/50/60 (Typ.)(CR≥10)
responding	10/25 (Typ.)(Tr/Td) ms
Number of color	16.7M
Backlight type	WLED [3S1P], no driver
Screen weight	18.0g (Typ.)
Apply to	Digital Still Camera / Digital Video Camera
Refresh rate	60Hz
Touch function	No touch
signal system	Serial RGB (8-bit) + SPI, CCIR601/656 , 41 pins FPC
Supply voltage	3.3V (Typ.)
Maximum	Working: 0 ~ 60 °C; Storage: 0 ~ 70 °C
AUO 3.0 inch lcd screen A030DN01 V9 lcd display modules

Why Choose Us :

According to customers' various requests,

we can match all accessories which inclusive of driver board,

touch-screen, LED backlight & LVDS cables. TFT LCD,

LCD panel, LCD display,LCD screen, LCD monitor,

LCD module from 2.2 inch to 88 inch.

Quality promised, 100% original,fast delivery,

also enjoy one year guarantee !

Shipping and Package :

AUO 3.0 Inch Lcd Screen A030DN01 V9 Lcd Display Modules 0

1)All of our product will be testing before shipping . So you can be assured the quality of our products

2) All Panels are packed with new and firm carton, capable of long distance transportation.

3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT

4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.

FAQ:

Q: If I order A030DN01 V9 now,when will you ship the goods ?

A: The order will be shipped within 2-3 working days after received your payment.

Q: Do you accept sample orders for A030DN01 V9 ?

A: Of course!sample order is welcome !

Q: Can You declare my order of A030DN01 V9 at a very low value ?

A: Yes , we can . pls inform us before shipping .

Q: How long is the warranty of AUO A030DN01 V9 ?

A: 90 days warranty .
