Mitsubishi AA121TD11 Industrial LCD Panel Display LCD Screen 12.1 inch
Product Details:
| Place of Origin: | China |
| Brand Name: | Mitsubishi |
| Model Number: | AA121TD11 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | AA121TD11 | Screen Size: | 12.1 Inch |
|---|---|---|---|
| Pixel Number: | 1280(RGB)×800, WXGA, 124PPI | Active Area: | 261.12(W)×163.2(H) Mm |
| Physical Dimension: | 283(W)×185.1(H) ×10.2(D) Mm | Visual Size: | 263.52(W)×165.60(H) Mm |
| Brightness: | 1500cd/m² (Typ.) | Contrast: | 700:1 (Typ.) (TM) |
| High Light: | AA121TD11 LCD Panel Display,12.1 inch Mitsubishi LCD SCREEN |
||
Product Description

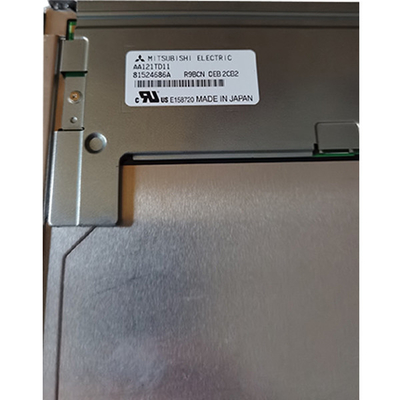

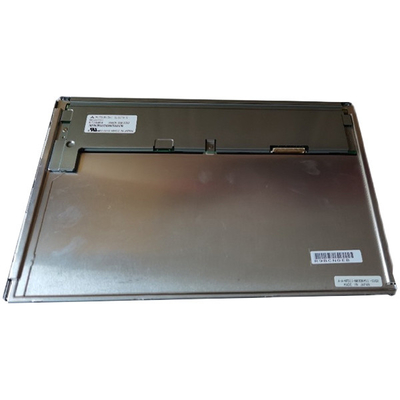

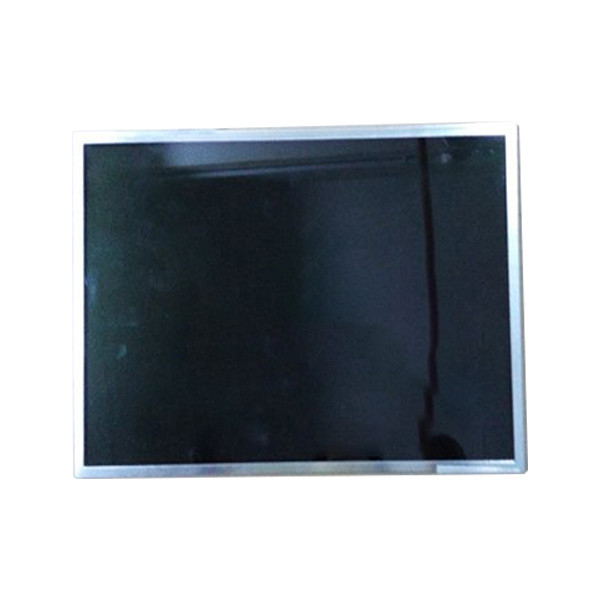

Mitsubishi AA121TD11 Industrial LCD Panel Display LCD Screen
Product details :
| Mitsubishi LCD SCREEN AA121TD11 | |
| manufacturer | Mitsubishi |
| Model Name | AA121TD11 |
| screen size | 12.1 inch |
| Screen type | a-Si TFT-LCD , LCM |
| Resolution | 1280(RGB)×800, WXGA, 124PPI |
| Pixel configuration | RGB Vertical Stripe |
| Display size | 261.12(W)×163.2(H) mm |
| physical dimension | 283(W)×185.1(H) ×10.2(D) mm |
| Visual size | 263.52(W)×165.60(H) mm |
| surface treatment | Antiglare, Hard coating (3H) |
| Brightness | 1500cd/m² (Typ.) |
| Contrast | 700:1 (Typ.) (TM) |
| Best angle | 6 o'clock |
| Optical mode | TN, Normally White, Transmissive |
| Viewing angle | 80/80/80/60 (Typ.)(CR≥10) |
| Responding time | 4/12 (Typ.)(Tr/Td) |
| Number of color | 262K/16.7M 40% NTSC |
| Backlight type | 4 strings WLED , 100K hours , Without Driver |
| Panel weight | 580g (Typ.) |
| Apply to | Industrial Outdoor / High Brightness |
| Refresh rate | 60Hz |
| Touch function | No touch |
| signal system | LVDS (1 ch, 6/8-bit) , 20 pins Connector |
| Supply voltage | 3.3V (Typ.) |
| Maximum rating | Operating Temp.: -30 ~ 80 °C ; Storage Temp.: -30 ~ 80 °C |
| Mitsubishi AA121TD11 Industrial LCD Panel Display LCD Screen | |
