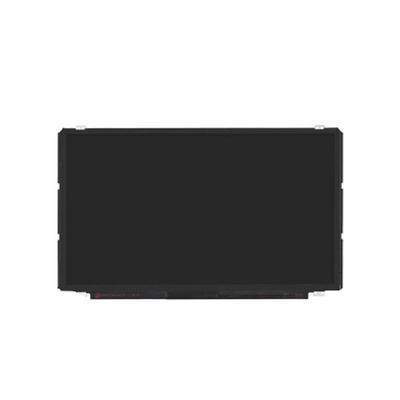

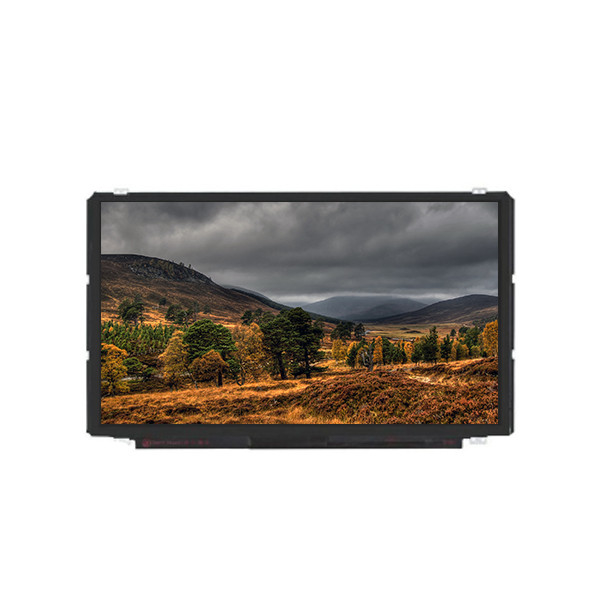

15.6 inch 1920*1080 NV156FHM-T0A lcd Screen display
Product Details:
| Place of Origin: | China |
| Brand Name: | BOE |
| Model Number: | NV156FHM-T0A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | NV156FHM-T0A | Screen Size: | 15.6" |
|---|---|---|---|
| Pixel Number: | 1920(RGB)×1080, FHD 141PPI | Active Area: | 344.16(W)×193.59(H) Mm |
| Outline (mm): | 350.66×205.24×5 (H×V×D) | Treatment: | Antiglare, Hard Coating (3H) |
| Brightness: | 250 Cd/m² (Typ.) | Contrast: | 800 : 1 (Typ.) (TM) |
| Response: | 30 (Typ.)(Tr+Td) Ms | Used For: | Laptop |
Product Description
15.6 inch 1920*1080 NV156FHM-T0A lcd Screen display
Product details :
| Brand | BOE |
| Model P/N | NV156FHM-T0A |
| Diagonal Size | 15.6" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1920(RGB)×1080, FHD 141PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 344.16(W)×193.59(H) mm |
| Bezel Opening | - |
| Outline (mm) | 350.66×205.24×5 (H×V×D) |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 250 cd/m² (Typ.) |
| Contrast Ratio | 800 : 1 (Typ.) (TM) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Response | 30 (Typ.)(Tr+Td) ms |
| Good View at | Symmetry |
| Work Mode | ADS, Normally Black, Transmissive |
| Color Depth | 262K 45%NTSC |
| Backlight | 11S4PWLED, 15K hours, With LED Driver |
| Outline Shape | Slim (PCBA Bent, T≤3.0mm) |
| Used for | Laptop |
| Refresh Rate | 60Hz |
| Touchscreen | On-Cell Touch, I²C |
| Signal Type | eDP (2 Lanes), eDP1.2 , HBR1 (2.7G/lane) , Connector40 pins |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
We offer:
1.Provide 24*7 customer support.
2.Offer our customers the lower Chinese price.
3.Streamline the buying and paying process.
4.Deliver goods to our customers all over the world with speed and precision.
5.Ensure the excellent quality of our products.
6.Help you find products and manufacturers in China.
Why Choose Us :
According to customers' various requests,
we can match all accessories which inclusive of driver board,
touch-screen, LED backlight & LVDS cables. TFT LCD,
LCD panel, LCD display,LCD screen, LCD monitor,
LCD module from 2.2 inch to 88 inch.
Quality promised, 100% original,fast delivery,
also enjoy one year guarantee !
Shipping and Package :
1)All of our product will be testing before shipping . So you can be assured the quality of our products
2) All Panels are packed with new and firm carton, capable of long distance transportation.
3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT
4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.
FAQ:
Q: How to make payment of NV156FHM-T0A ?
A: We accept T/T , Paypal , western union .
Q: Do you accept sample orders of NV156FHM-T0A ?
A: Of course!sample order is welcome !
Q: Can I pay my order of NV156FHM-T0A via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: Can You declare my order of NV156FHM-T0A to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
.
