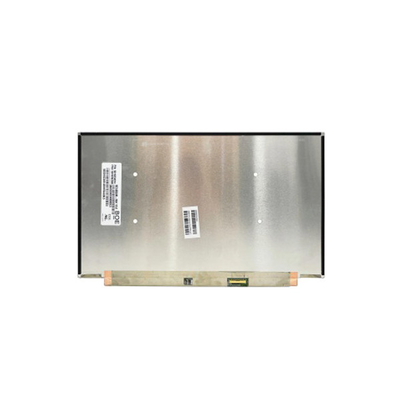

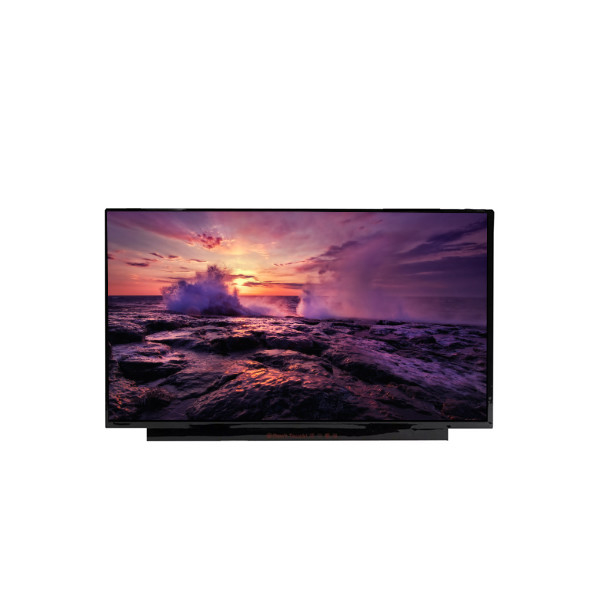

14.0 inch TFT LCD panel model NE140QUM-N61 lcd screen
Product Details:
| Place of Origin: | China |
| Brand Name: | BOE |
| Model Number: | NE140QUM-N61 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | NE140QUM-N61 | Screen Size: | 14.0" |
|---|---|---|---|
| Pixel Number: | 3840(RGB)×2160, UHD 315PPI | Active Area: | 309.31(W)×173.99(H) Mm |
| Outline Dim.: | 315.01(H)×195.67(V)×2.3(D)mm | Treatment: | Antiglare, Hard Coating (3H) |
| Brightness: | 500 Cd/m² (Typ.) | Contrast: | 1500:1 (Typ.) (TM) |
| Response Time: | 25 (Typ.)(Tr+Td) | Designed For: | Laptop |
Product Description
14.0 inch TFT LCD panel model NE140QUM-N61 lcd screen
Product details :
| Brand | BOE |
| Model P/N | NE140QUM-N61 |
| Diagonal Size | 14.0" |
| Panel Type | Oxide TFT-LCD, LCM |
| Resolution | 3840(RGB)×2160, UHD 315PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 309.31(W)×173.99(H) mm |
| Bezel Opening | - |
| Outline Dim. | 315.01(H)×195.67(V)×2.3(D)mm |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 500 cd/m² (Typ.) |
| Contrast Ratio | 1500:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 25 (Typ.)(Tr+Td) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Operating Mode | ADS, Normally Black, Transmissive |
| Support Color | 16.7M 100%DCI-P3 |
| Light Source | WLED [10S8P], 15K hours, With LED Driver |
| Form Style | Slim (PCBA Flat, T≤3.2mm) |
| Designed For | Laptop |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | eDP (4 Lanes), eDP1.3 , HBR2 (5.4G/lane) , 40 pinsConnector |
| Power Supply | 3.3V (Typ.) |
| Environment | Operating Temperature: -20 ~ 60 °C ; Storage Temperature: -20 ~ 65 °C |
Why Choose Us :
According to customers' various requests,
we can match all accessories which inclusive of driver board,
touch-screen, LED backlight & LVDS cables. TFT LCD,
LCD panel, LCD display,LCD screen, LCD monitor,
LCD module from 2.2 inch to 88 inch.
Quality promised, 100% original,fast delivery,
also enjoy one year guarantee !
Shipping and Package :
Shipping:
1: All items will be shipped within 48 business hours upon receipt of payment (except Saturday,Sunday and Statutory holidays).
2: We are not able to take any responsibility for any custom delay or tax. Import duties, taxes and charges are not included in the item price or shipping charges.
3: Buyers' Information: We strive our best to provide you the most reliable, affordable way of shipping service.
4: But sometimes international delivery is highly depended on the courier company and local customs/duties.
5: If you do not receive your item on time, please contact us immediately for further assistance.
Feedback:
1: If this item is defective upon receipt, customer has up to 30 days from date of receipt for exchange of a new one.
2: When you return,please write your Transaction number and return reason in the package, when we recieved your return, we can solove your problem quickly.
FAQ:
Q: How do you ship my goods NE140QUM-N61 ?
A: We can shipping all over the world.via DHL,UPS,Fedex and EMS, the packaging is very safe and strong.
Q: How long is the warranty of NE140QUM-N61 ?
A: 90days warranty .
Q: Are you manufactory or trade company ?
A: We are a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.
Q: Can You declare my order of LCD panel NE140QUM-N61 at a very low value ?
A: Yes , we can . pls inform us before shipping .
