LCD Screen Display Panel

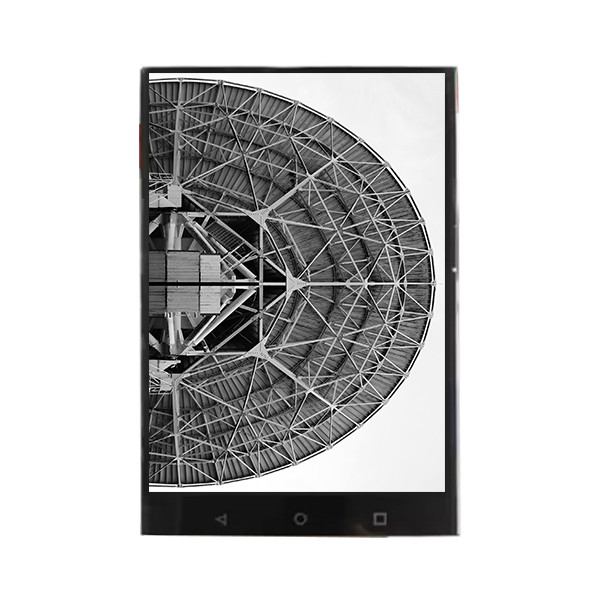

8.9 inch 800*1280 a-si TFT lcd panel QV089WXQ-N80-3QP0 TFT LCD screen

All Category

Floor Standing Digital Signage

8.9 inch 800*1280 a-si TFT lcd panel QV089WXQ-N80-3QP0 TFT LCD screen

Brand Name:	BOE
Model Number:	QV089WXQ-N80-3QP0
MOQ:	2 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin:

China

Model Name:

QV089WXQ-N80-3QP0

Screen Size:

Pixel Number:

800(RGB)×1280, WXGA 170PPI

Active Area:

119.28(W)×190.848(H) Mm

Screen Type:

A-Si TFT-LCD, CELL, Q-CUT (Full Cell)

Configuration:

RGB Vertical Stripe

Brightness:

0 Cd/m²

Contrast:

1000 : 1 (Typ.) (TM)

Response:

35 (Max.)(Tr+Td) Ms

Used For:

Pad & Tablet

Supply Ability:

100000 Unit/Units per Month

Product Description

8.9 inch 800*1280 a-si TFT lcd panel QV089WXQ-N80-3QP0 TFT LCD screen

Product details :

Brand	BOE
Model P/N	QV089WXQ-N80-3QP0
Diagonal Size	8.9"
Panel Type	a-Si TFT-LCD, CELL, Q-CUT (Full Cell)
Resolution	800(RGB)×1280, WXGA 170PPI
Pixel Format	RGB Vertical Stripe
Active Area	119.28(W)×190.848(H) mm
Bezel Opening	-
Outline(mm)	123.68 × 200× 0.8 (H×V×D)mm
Treatment	Without Polarizer
Luminance	0 cd/m²
Contrast Ratio	1000 : 1 (Typ.) (TM)
Viewing Angle	85/85/85/85 (Typ.)(CR≥10)
Response	35 (Max.)(Tr+Td) ms
Good View at	Symmetry
Work Mode	ADS, Normally Black, Transmissive
Glass Thickness	0.40+0.40 mm
Transmissivity	4.8% (Typ.)
Color Depth	16.7M
Backlight	No B/L
Mass	-
Used for	Pad & Tablet
Refresh Rate	-
Touchscreen	Without
Driver IC list	Suggest COG JD9365D, NT35521Z, HX8394D
Max. Ratings	Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C

Why Choose Us :

According to customers' various requests,

we can match all accessories which inclusive of driver board,

touch-screen, LED backlight & LVDS cables. TFT LCD,

LCD panel, LCD display,LCD screen, LCD monitor,

LCD module from 2.2 inch to 88 inch.

Quality promised, 100% original,fast delivery,

also enjoy one year guarantee !

Shipping and Package :

8.9 inch 800*1280 a-si TFT lcd panel QV089WXQ-N80-3QP0 TFT LCD screen 0

1)All of our product will be testing before shipping . So you can be assured the quality of our products

2) All Panels are packed with new and firm carton, capable of long distance transportation.

3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT

4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.

FAQ:

Q: If I order HSD150MX17-A02 now,when will you ship the goods ?

A: The order will be shipped within 2-3 working days after received your payment.

Q: Do you accept sample orders for QV089WXQ-N80-3QP0 ?

A: Of course!sample order is welcome !

Q: Can You declare my order of QV089WXQ-N80-3QP0 at a very low value ?

A: Yes , we can . pls inform us before shipping .

Q: How long is the warranty of QV089WXQ-N80-3QP0 ?

A: 90days warranty .
