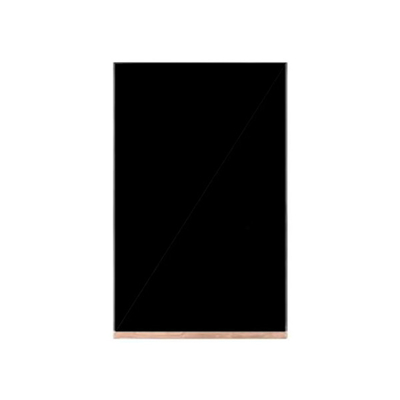

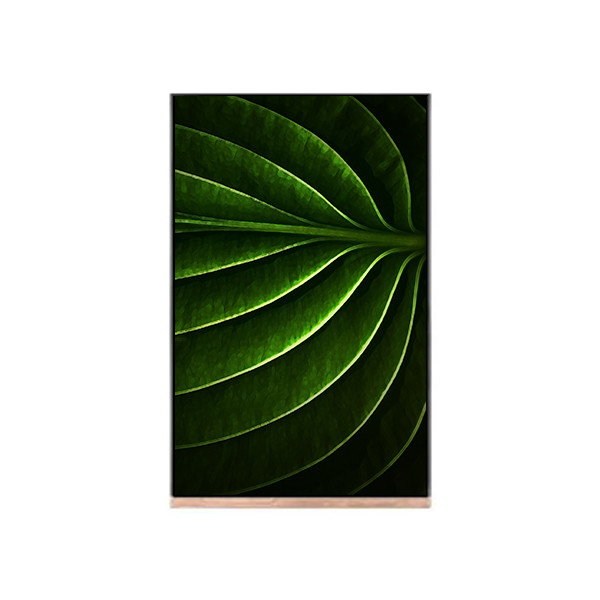

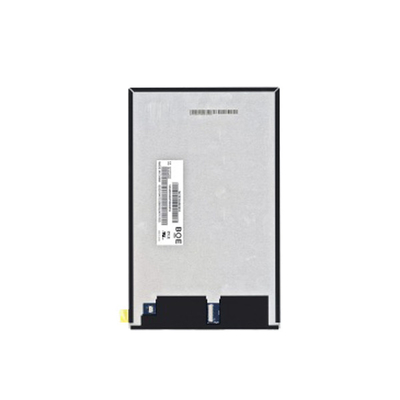

LCD Screen 10.1 inch for NV101WUM-N53 lcd module
  • name
  • name
  • name

LCD Screen 10.1 inch for NV101WUM-N53 lcd module

Brand Name: BOE
Model Number: NV101WUM-N53
MOQ: 1 pcs
Price: Negotiable
Packaging Details: Original packaging/conventional packaging box
Payment Terms: T/T, Western Union
Detail Information
Product Description
Detail Information
Place of Origin:
China
Model Name:
NV101WUM-N53
Screen Size:
10.1"
Pixel Number:
1200(RGB)×1920, WUXGA 225PPI
Active Area:
135.36(W)×216.576(H) Mm
Outline Dim.:
141.6(H)×227.406(V) Mm
Treatment:
Anti Fingerprint + Clear, Hard Coating
Brightness:
400 Cd/m² (Typ.)
Contrast:
1000:1 (Typ.) (TM)
Response Time:
30 (Typ.)(Tr+Td)
Designed For:
Pad & Tablet
Supply Ability:
100000 Unit/Units per Month
Product Description

LCD Screen 10.1 inch for NV101WUM-N53 lcd module





Product details :

Brand BOE
Model P/N NV101WUM-N53
Diagonal Size 10.1"
Panel Type a-Si TFT-LCD, LCM
Resolution 1200(RGB)×1920, WUXGA 225PPI
Pixel Format RGB Vertical Stripe
Active Area 135.36(W)×216.576(H) mm
Bezel Opening -
Outline Dim. 141.6(H)×227.406(V) mm
Treatment Anti Fingerprint + Clear, Hard coating
Luminance 400 cd/m² (Typ.)
Contrast Ratio 1000:1 (Typ.) (TM)
View Direction Symmetry
Response Time 30 (Typ.)(Tr+Td)
Viewing Angle 85/85/85/85 (Typ.)(CR≥10)
Operating Mode HADS, Normally Black, Transmissive
Support Color 16.7M 74%NTSC
Light Source WLED [8S4P], 15K hours, W/O Driver
Weight 105g (Typ.)
Designed For Pad & Tablet
Frame Rate 60Hz
Touch Panel Without
Interface Type MIPI (4 data lanes), 45 pinsConnector
Power Supply 1.8/5.8/-5.8V (Typ.)(DVDD/VSP/VSN)
Environment Operating Temperature: -20 ~ 60 °C; Storage Temperature: -30 ~ 70 °C


Product Description:


1: To Repair for Faulty Screen, Dead Pixels , Touch is not sensitive, Cracked Broken Touch Screen Problems.
2: Full Tested 100% Working By Real equipment before Shipping
3: Not supply the disassembly installation instructions and Tools
4: Please match your original screen with the image & description we have provided in this listing. If not sure. Contact with us to Confirm
5: We reserve the right to ship COMPATIBLE screens (part # or manufacturers may not be the same but 100% compatibility is guaranteed)

Why Choose Us :



According to customers' various requests,


we can match all accessories which inclusive of driver board,


touch-screen, LED backlight & LVDS cables. TFT LCD,


LCD panel, LCD display,LCD screen, LCD monitor,


LCD module from 2.2 inch to 88 inch.


Quality promised, 100% original,fast delivery,


also enjoy one year guarantee !



Shipping and Package :



LCD Screen 10.1 inch for NV101WUM-N53 lcd module 0



FAQ:

Q: How to make payment of NV101WUM-N53 ?

A: We accept T/T , Paypal , western union .



Q: If I place order now,when will you ship the goods of NV101WUM-N53 ?

A: The order will be shipped within 2-3 working days after received your payment.



Q: How long will I receive my goods NV101WUM-N53 ?

A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.



Q: How long is the warranty ?

A: We offer 90 days warranty .
