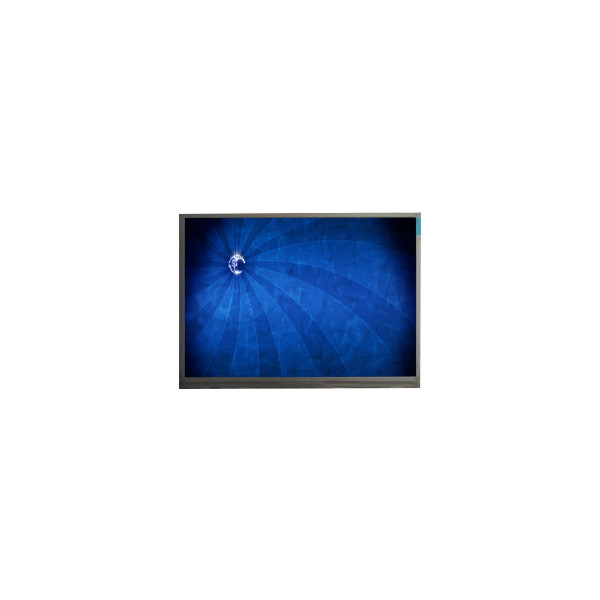

7.0 inch LCD SCREEN DISPLAY F070A58-6T1 LCD panel
Product Details:
| Place of Origin: | China |
| Brand Name: | Innolux |
| Model Number: | F070A58-6T1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | F070A58-6T1 | Screen Size: | 7.0" |
|---|---|---|---|
| Resolution: | 600(RGB)×1024, WSVGA 170PPI | Display Size: | 89.28(W)×152.371(H) Mm |
| Outline Dim.: | 92.88 × 159.77× 0.8 (H×V×D) | Treatment: | Without Polarizer |
| Brightness: | 0 Cd/m² | Contrast Ratio: | 1000 : 1 (Typ.) (TM) |
| Used For: | Pad & Tablet | Backlight: | No B/L |
Product Description
7.0 inch LCD SCREEN DISPLAY F070A58-6T1 LCD panel
Product details :
| Brand | Innolux |
| Model P/N | F070A58-6T1 |
| Diagonal Size | 7.0" |
| Panel Type | a-Si TFT-LCD, CELL, Q-CUT (Full Cell) |
| Resolution | 600(RGB)×1024, WSVGA 170PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 89.28(W)×152.371(H) mm |
| Bezel Opening | - |
| Outline(mm) | 92.88 × 159.77× 0.8 (H×V×D) |
| Treatment | Without Polarizer |
| Luminance | 0 cd/m² |
| Contrast Ratio | 1000 : 1 (Typ.) (TM) |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) |
| Response | 25 (Typ.)(Tr+Td) ms |
| Good View at | Symmetry |
| Work Mode | AAS, Normally Black, Transmissive |
| Glass Thickness | 0.40+0.40 mm |
| Transmissivity | 5.09% (Typ.) |
| Color Depth | 16.7M 49%NTSC |
| Backlight | No B/L |
| Mass | TBD |
| Used for | Pad & Tablet |
| Refresh Rate | 60Hz |
| Touchscreen | In-Cell Touch, SPI |
| Driver IC list | Built-in COG ILI9881H, HX83102-D |
| Max. Ratings | Storage Temp.: -25 ~ 70 °C Operating Temp.: -20 ~ 60 °C |
Why Choose Us :
According to customers' various requests,
we can match all accessories which inclusive of driver board,
touch-screen, LED backlight & LVDS cables. TFT LCD,
LCD panel, LCD display,LCD screen, LCD monitor,
LCD module from 2.2 inch to 88 inch.
Quality promised, 100% original,fast delivery,
also enjoy one year guarantee !
Shipping and Package :
1)All of our product will be testing before shipping . So you can be assured the quality of our products
2) All Panels are packed with new and firm carton, capable of long distance transportation.
3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT
4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.
FAQ:
Q: How to make payment of F070A58-6T1 ?
A: We accept T/T , Paypal , western union .
Q: How long is the warranty ?
A: We offer 90days warranty .
Q: If I place order now,when will you ship the goods of F070A58-6T1 ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: Can I pay my order of F070A58-6T1 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
