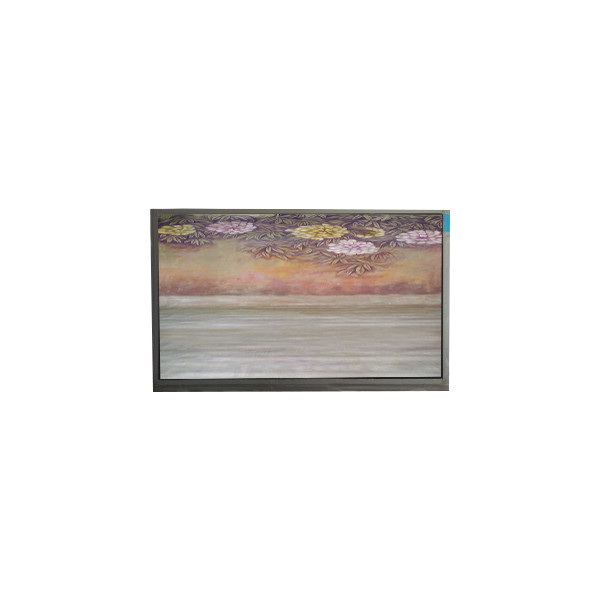

Name: 6.1 inch TFT LCD Panel U061SWR6-0 lcd screen display panel
Brand: Shenzhen Yongsheng Innovation Technology Co., Ltd
SKU: U061SWR6-0
Availability: InStock

Brand Name:	IVO
Model Number:	U061SWR6-0
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

U061SWR6-0

Screen Size:

6.1"

Resolution:

720(RGB)×1560 282PPI

Active Area:

64.8(W)×140.4(H) Mm

Outline Dim.:

66.6(W)×145.3(H)×0.8(D) Mm

Viewing Angle:

85/85/85/85 (Typ.)(CR≥10)

Contrast Ratio:

1200:1 (Typ.) (TM)

Brightness:

0 Cd/m²

Operating Mode:

IPS, Normally Black, Transmissive

Designed For:

Mobile Phone

Supply Ability:

100000 Unit/Units per Month

Product Description

6.1 inch TFT LCD Panel U061SWR6-0 lcd screen display panel

Product details :

Brand	IVO
Model P/N	U061SWR6-0
Diagonal Size	6.1"
Panel Type	a-Si TFT-LCD, CELL, Q-CUT (Full Cell)
Resolution	720(RGB)×1560 282PPI
Pixel Format	RGB Vertical Stripe
Active Area	64.8(W)×140.4(H) mm
Bezel Opening	-
Outline Dim.	66.6(W)×145.3(H)×0.8(D) mm
Treatment	-
Luminance	0 cd/m²
Contrast Ratio	1200:1 (Typ.) (TM)
View Direction	Symmetry
Response Time	35 (Max.)(Tr+Td)
Viewing Angle	85/85/85/85 (Typ.)(CR≥10)
Operating Mode	IPS, Normally Black, Transmissive
Plate Thickness	0.40+0.40 mm
Transmittance	3.6% (Typ.)
Support Color	16.7M 71%NTSC
Light Source	No B/L
Weight	19.3/21.3g (Typ./Max.)
Designed For	Mobile Phone
Frame Rate	60Hz
Touch Panel	In-Cell Touch, I²C/SPI
D-IC Detail	COG Suggest ICNL9911C
Environment	Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -40 ~ 80 °C

Why Choose Us :

According to customers' various requests,

we can match all accessories which inclusive of driver board,

touch-screen, LED backlight & LVDS cables. TFT LCD,

LCD panel, LCD display,LCD screen, LCD monitor,

LCD module from 2.2 inch to 88 inch.

Quality promised, 100% original,fast delivery,

also enjoy one year guarantee !

Shipping and Package :

6.1 inch TFT LCD Panel U061SWR6-0 lcd screen display panel 0

1)All of our product will be testing before shipping . So you can be assured the quality of our products

2) All Panels are packed with new and firm carton, capable of long distance transportation.

3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT

4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.

FAQ:

Q: How to order lcd panel U061SWR6-0 ?

A: We accept T/T , Paypal , western union .

Q: Can you tested the U061SWR6-0 before shipping ?

A: Of course , lcd screen U061SWR6-0 was Strictly tested before shipping.

Q: What happen if the U061SWR6-0 received can't work ?

A: U061SWR6-0 lcd panel was tesed before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel .

Q: How long the warranty of the U061SWR6-0 ?

A: 90 days .
