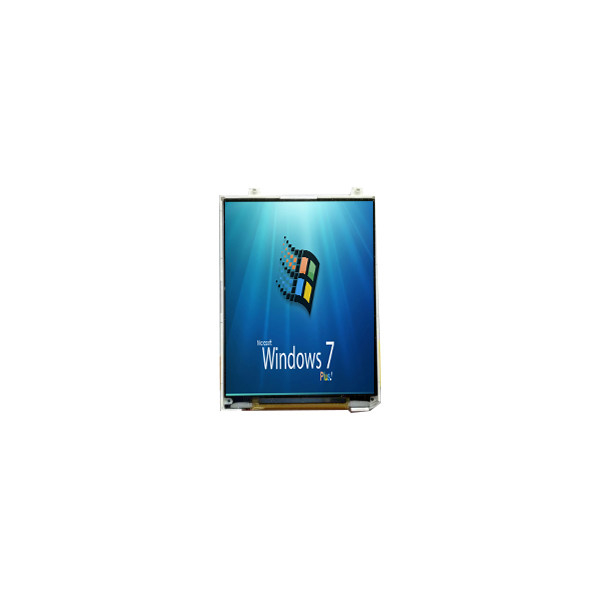

6.5 inch 1080*2340 LCD screen Display for LPS065A680B
Product Details:
| Place of Origin: | China |
| Brand Name: | JDI |
| Model Number: | LPS065A680B |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LPS065A680B | Screen Size: | 6.5" |
|---|---|---|---|
| Pixel Format: | RGB Vertical Stripe | Active Area: | 69.498(W)×150.579(H) Mm |
| Outline Dim.: | 70.898(W)×154.579(H)×0.32(D) Mm | Luminance: | 0 Cd/m² |
| Viewing Angle: | 80/80/80/80 (Typ.)(CR≥10) | Display Colors: | 16.7M 100% SRGB |
| Light Source: | No B/L | Designed For: | Mobile Phone |
Product Description
6.5 inch 1080*2340 LCD screen Display for LPS065A680B
Product details :
| Brand | JDI |
| Model P/N | LPS065A680B |
| Diagonal Size | 6.5" |
| Panel Type | LTPS TFT-LCD, CELL, Q-CUT (Full Cell) |
| Resolution | 1080(RGB)×2340 394PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 69.498(W)×150.579(H) mm |
| Bezel Opening | - |
| Outline Dim. | 70.898(W)×154.579(H)×0.32(D) mm |
| Luminance | 0 cd/m² |
| View Direction | Symmetry |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) |
| Plate Thickness | 0.16+0.16 mm |
| Support Color | 16.7M 100% sRGB |
| Weight | - |
| Frame Rate | 60Hz |
| Treatment | Without Polarizer |
| Contrast Ratio | 1500:1 (Typ.) (TM) |
| Response Time | 26 (Max.)(Tr+Td) |
| Operating Mode | FFS, Normally Black, Transmissive |
| Transmittance | 4.6% (Typ.) |
| Light Source | No B/L |
| Designed For | Mobile Phone |
| Touch Panel | PCAP |
| D-IC Detail | COG Suggest NT36672A |
| Interface Type | MIPI (4 data lanes) |
| Power Supply | 1.8/5.5/-5.5V (Typ.)(IOVCC/VSP/VSN) |
| Environment | Operating Temperature: -30 ~ 70 °C; Storage Temperature: -45 ~ 80 °C |
Why Choose Us :
According to customers' various requests,
we can match all accessories which inclusive of driver board,
touch-screen, LED backlight & LVDS cables. TFT LCD,
LCD panel, LCD display,LCD screen, LCD monitor,
LCD module from 2.2 inch to 88 inch.
Quality promised, 100% original,fast delivery,
also enjoy one year guarantee !
Shipping and Package :
1)All of our product will be testing before shipping . So you can be assured the quality of our products
2) All Panels are packed with new and firm carton, capable of long distance transportation.
3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT
4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.
FAQ:
Q: How do you ship my goods LPS065A680B ?
A: We can shipping all over the world.via DHL,UPS,Fedex and EMS, the packaging is very safe and strong.
Q: How long is the warranty of LPS065A680B ?
A: 90days warranty .
Q: Are you manufactory or trade company ?
A: We are a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.
Q: Can You declare my order of LCD panel LPS065A680B at a very low value ?
A: Yes , we can . pls inform us before shipping .
