Name: 13.0 inch LCD Screen MND007ZA1-2 LCD Display Panel
Brand: Shenzhen Yongsheng Innovation Technology Co., Ltd
SKU: MND007ZA1-2
Availability: InStock

Brand Name:	CSOT
Model Number:	MND007ZA1-2
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

MND007ZA1-2

Screen Size:

13.0"

Resolution:

2160(RGB)×1350 195PPI

Active Area:

280(W)×175(H) Mm

Outline Dim.:

284.236(W)×184.11(H)×4(D) Mm

Best View On:

Symmetry

Brightness:

450 Cd/m² (Typ.)

Contrast Ratio:

1500 : 1 (Typ.) (TM)

Response:

25 (Typ.)(Tr+Td) Ms

Used For:

Laptop

Supply Ability:

100000 Unit/Units per Month

Product Description

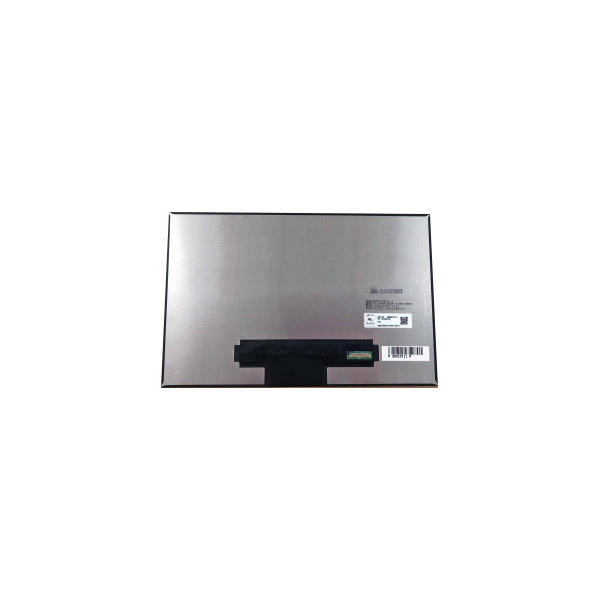

13.0 inch LCD Screen MND007ZA1-2 LCD Display Panel

Product details :

Brand	CSOT
Model P/N	MND007ZA1-2
Diagonal Size	13.0"
Panel Type	LTPS TFT-LCD, LCM
Resolution	2160(RGB)×1350 195PPI
Pixel Format	RGB Vertical Stripe
Active Area	280(W)×175(H) mm
Bezel Opening	-
Outline Size	284.236(W)×184.11(H)×4(D) mm
Treatment	Antiglare
Luminance	450 cd/m² (Typ.)
Contrast Ratio	1500 : 1 (Typ.) (TM)
Viewing Angle	89/89/89/89 (Typ.)(CR≥10)
Response	25 (Typ.)(Tr+Td) ms
Good View at	Symmetry
Work Mode	FFS, Normally Black, Transmissive
Color Depth	16.7M 100%sRGB
Backlight	9S6PWLED, 15K hours, With LED Driver
Outline Shape	Slim (PCBA Bent, T≤3.0mm)
Used for	Laptop
Refresh Rate	60Hz
Touchscreen	Without
Signal Type	eDP (2 Lanes), eDP1.4, 30 pinsConnector
Voltage Supply	3.3V (Typ.)
Max. Ratings	Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C

Why Choose Us :

According to customers' various requests,

we can match all accessories which inclusive of driver board,

touch-screen, LED backlight & LVDS cables. TFT LCD,

LCD panel, LCD display,LCD screen, LCD monitor,

LCD module from 2.2 inch to 88 inch.

Quality promised, 100% original,fast delivery,

also enjoy one year guarantee !

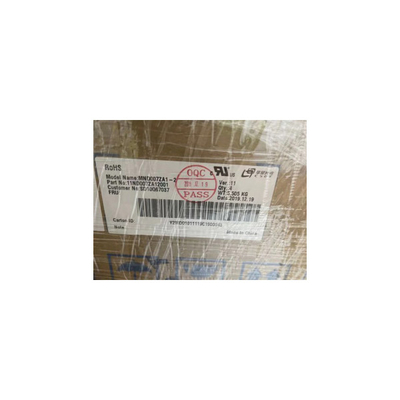

Shipping and Package :

13.0 inch LCD Screen MND007ZA1-2 LCD Display Panel 0

1)All of our product will be testing before shipping . So you can be assured the quality of our products

2) All Panels are packed with new and firm carton, capable of long distance transportation.

3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT

4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.

FAQ:

Q: How long is the warranty ?

A: We offer 90days warranty .

Q: Can you give me a discount if I need a large quantity of MND007ZA1-2 ?

A: Of course!If you make a large order, we will give you a discount.

Q: If I place order now,when will you ship the goods of MND007ZA1-2 ?

A: The order will be shipped within 2-3 working days after received your payment.

Q: Do you accept sample orders of MND007ZA1-2 ?

A: Of course!sample order is welcome !
