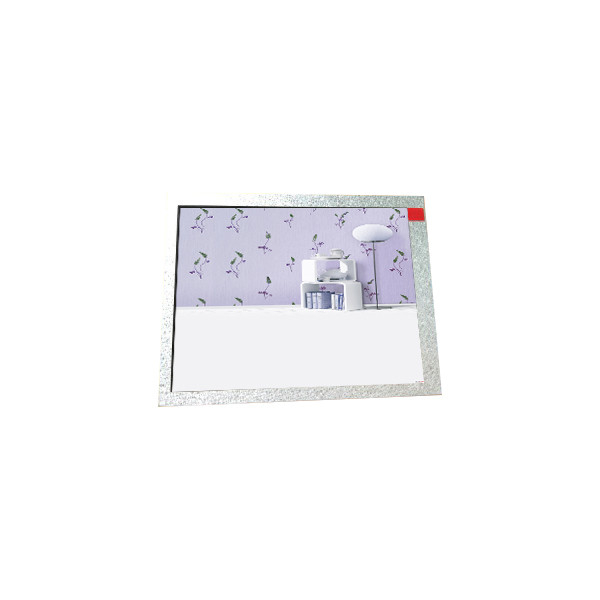

Name: 7.0 inch 720*1640 TM070JVSC01-00 LCD screen LCD MODULES
Brand: Shenzhen Yongsheng Innovation Technology Co., Ltd
SKU: TM070JVSC01-00
Availability: InStock

Brand Name:	TIANMA
Model Number:	TM070JVSC01-00
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

TM070JVSC01-00

Screen Size:

7.0"

Resolution:

720(RGB)×1640 257PPI

Active Area:

70.96(W)×161.62(H) Mm

Outline(mm):

75.06 × 170.54× 2.45 (H×V×D)

Treatment:

Clear

Brightness:

480 Cd/m² (Typ.)

Contrast:

1500 : 1 (Typ.) (TM)

Work Mode:

SFT, Normally Black, Transmissive

Used For:

Mobile Phone

Supply Ability:

100000 Unit/Units per Month

Product Description

7.0 inch 720*1640 TM070JVSC01-00 LCD screen LCD MODULES

Product details :

Brand	TIANMA
Model P/N	TM070JVSC01-00
Diagonal Size	7.0"
Panel Type	a-Si TFT-LCD, LCM
Resolution	720(RGB)×1640 257PPI
Pixel Format	RGB Vertical Stripe
Active Area	70.96(W)×161.62(H) mm
Bezel Opening	-
Outline(mm)	75.06 × 170.54× 2.45 (H×V×D)
Treatment	Clear
Luminance	480 cd/m² (Typ.)
Contrast Ratio	1500 : 1 (Typ.) (TM)
Viewing Angle	80/80/80/80 (Typ.)(CR≥10)
Response	25 (Typ.)(Tr+Td) ms
Good View at	Symmetry
Work Mode	SFT, Normally Black, Transmissive
Color Depth	16.7M 72%NTSC
Backlight	9S2PWLED, No Driver
Mass	TBD
Used for	Mobile Phone
Refresh Rate	-
Touchscreen	PCAP, SPI
Signal Type	MIPI (3 data lanes), 54 pinsConnector
Voltage Supply	1.8/6.0/-6.0V (Typ.)(IOVCC/AVDD/AVEE)
Max. Ratings	Storage Temp.: -40 ~ 85 °C Operating Temp.: -30 ~ 75 °C

Why Choose Us :

According to customers' various requests,

we can match all accessories which inclusive of driver board,

touch-screen, LED backlight & LVDS cables. TFT LCD,

LCD panel, LCD display,LCD screen, LCD monitor,

LCD module from 2.2 inch to 88 inch.

Quality promised, 100% original,fast delivery,

also enjoy one year guarantee !

Shipping and Package :

7.0 inch 720*1640 TM070JVSC01-00 LCD screen LCD MODULES 0

1)All of our product will be testing before shipping . So you can be assured the quality of our products

2) All Panels are packed with new and firm carton, capable of long distance transportation.

3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT

4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.

FAQ:

Q: How can I trace my order of TM070JVSC01-00 ?

A: we will give you tracking number then you can trace your order from website.

Q: How to make payment of TM070JVSC01-00 ?

A: We accept T/T , Paypal , western union .

Q: Do you accept sample orders of TM070JVSC01-00 ?

A: Of course!sample order is welcome !

Q: Can you give me a discount if I need a large quantity of TM070JVSC01-00 ?

A: Of course!If you make a large order, we will give you a discount.
