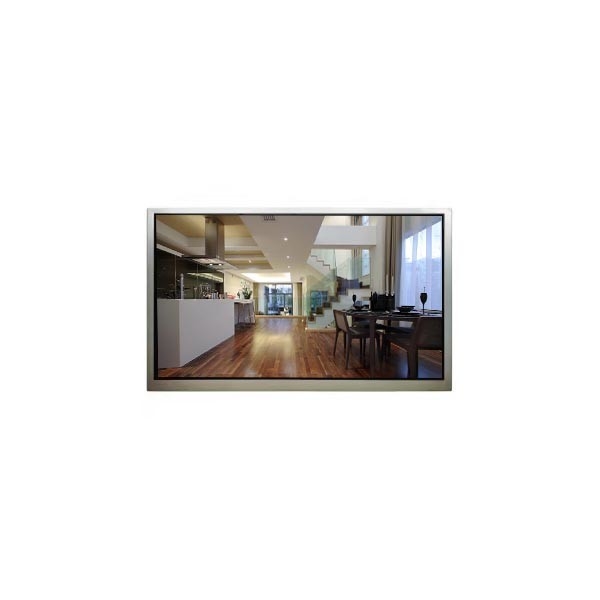

6.5 inch LCD Monitor Screen CM6530MB2-2 lcd screen display panel
Product Details:
| Place of Origin: | China |
| Brand Name: | CSOT |
| Model Number: | CM6530MB2-2 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | CM6530MB2-2 | Screen Size: | 6.5" |
|---|---|---|---|
| Resolution: | 1080(RGB)×2340 394PPI | Display Size: | 69.498(W)×150.579(H) Mm |
| Outline Size: | 70.898(W)×154.709(H)×0.44(D) Mm | Viewing Angle: | 88/88/88/88 (Min.)(CR≥10) |
| Brightness: | 0 Cd/m² | Contrast: | 1500:1 (Typ.) (TM) |
| Application: | Mobile Phone | Touch Screen: | In-Cell Touch |
Product Description
6.5 inch LCD Monitor Screen CM6530MB2-2 lcd screen display panel
Product details :
| Brand | CSOT |
| Model P/N | CM6530MB2-2 |
| Diagonal Size | 6.5" |
| Panel Type | LTPS TFT-LCD, CELL, Full Cell |
| Resolution | 1080(RGB)×2340 394PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 69.498(W)×150.579(H) mm |
| Bezel Opening | - |
| Outline Size | 70.898(W)×154.709(H)×0.44(D) mm |
| Surface | - |
| Brightness | 0 cd/m² |
| Contrast Ratio | 1500:1 (Typ.) (TM) |
| Viewing Angle | 88/88/88/88 (Min.)(CR≥10) |
| Display Mode | FFS, Normally Black, Transmissive |
| Best View on | Symmetry |
| Response Time | 26 (Max.)(Tr+Td) |
| Glass Depth | 0.14+0.14 mm |
| Transmissivity | 3.8% (Typ.) |
| Display Colors | 16.7M 68%NTSC |
| Lamp Type | No B/L |
| Frequency | - |
| Touch Screen | In-Cell Touch |
| Driver IC | COG Suggest NT3667A, FT8719, TD4320, HX83112A |
| Panel Weight | TBD |
| Application | Mobile Phone |
| Environment | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
Why Choose Us :
According to customers' various requests,
we can match all accessories which inclusive of driver board,
touch-screen, LED backlight & LVDS cables. TFT LCD,
LCD panel, LCD display,LCD screen, LCD monitor,
LCD module from 2.2 inch to 88 inch.
Quality promised, 100% original,fast delivery,
also enjoy one year guarantee !
Shipping and Package :
FAQ:
Q: How to order CM6530MB2-2 ?
A: We accept T/T , PAYPAL , WESTERN UNION.
Q: When will ship my order of CM6530MB2-2 ?
A: The order are shipped within 1-2 working days after received the payment.
Q: Can you test lcd panel CM6530MB2-2 before shipping ?
A: Don't Worry , Our lcd CM6530MB2-2 was tested ok before shipping
Q: Can you declared low value for my order lcd pane CM6530MB2-2 ?
A: Yes we can , but you need to leave message to us before shipping .
