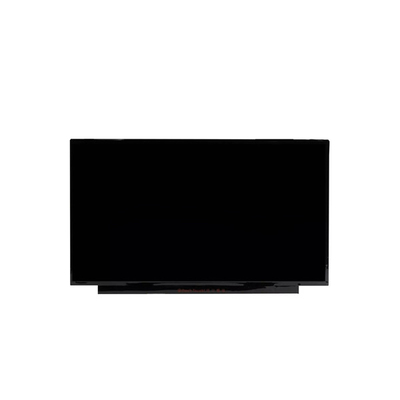

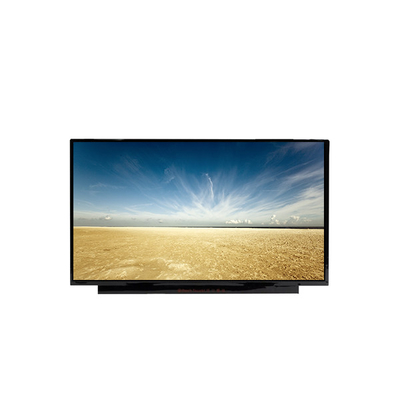

Name: 15.6 inch 1366*768 a-Si TFT-LCD panel NT156WHM-N42 V8.3
Brand: Shenzhen Yongsheng Innovation Technology Co., Ltd
SKU: NT156WHM-N42 V8.3
Availability: InStock

Brand Name:	BOE
Model Number:	NT156WHM-N42 V8.3
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

NT156WHM-N42 V8.3

Screen Size:

15.6"

Pixel Number:

1366(RGB)×768, WXGA 100PPI

Active Area:

344.232(W)×193.536(H) Mm

Outline Size:

359.5(W)×223.8(H)×3.2(D) Mm

Viewing Angle:

45/45/20/40 (Typ.)(CR≥10)

Number Of Color:

262K 45%NTSC

Application:

Laptop

Lamp Type:

9S4P WLED , 15K Hours , With LED Driver

Signal Interface:

EDP (1 Lane), EDP1.2 , RBR (1.62G/lane) , 30 PinsConnector

Supply Ability:

100000 Unit/Units per Month

Product Description

15.6 inch 1366*768 a-Si TFT-LCD panel NT156WHM-N42 V8.3

Product details :

Brand	BOE
Model P/N	NT156WHM-N42 V8.3
Diagonal Size	15.6"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1366(RGB)×768, WXGA 100PPI
Pixel Format	RGB Vertical Stripe
Active Area	344.232(W)×193.536(H) mm
Bezel Opening	-
Outline Size	359.5(W)×223.8(H)×3.2(D) mm
Brightness	220 cd/m² (Typ.)
Viewing Angle	45/45/20/40 (Typ.)(CR≥10)
Best View on	6 o'clock
Display Colors	262K 45%NTSC
Frequency	60Hz
Shape Style	Slim (PCBA Flat, T≤3.2mm)
Surface	Antiglare, Hard coating (3H)
Contrast Ratio	520:1 (Typ.) (TM)
Display Mode	TN, Normally White, Transmissive
Response Time	12 (Typ.)(Tr+Td)
Lamp Type	9S4P WLED , 15K hours , With LED Driver
Touch Screen	Without
Application	Laptop
Signal Interface	eDP (1 Lane), eDP1.2 , RBR (1.62G/lane) , 30 pinsConnector
Input Voltage	3.3V (Typ.)
Environment	Operating Temp.: 0 ~ 50 °C ;Storage Temp.: -20 ~ 60 °C

Why Choose Us :

According to customers' various requests,

we can match all accessories which inclusive of driver board,

touch-screen, LED backlight & LVDS cables. TFT LCD,

LCD panel, LCD display,LCD screen, LCD monitor,

LCD module from 2.2 inch to 88 inch.

Quality promised, 100% original,fast delivery,

also enjoy one year guarantee !

Shipping and Package :

15.6 inch 1366*768 a-Si TFT-LCD panel NT156WHM-N42 V8.3 0

1)All of our product will be testing before shipping . So you can be assured the quality of our products

2) All Panels are packed with new and firm carton, capable of long distance transportation.

3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT

4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.

FAQ:

Q: How long is the warranty ?

A: We offer 90days warranty .

Q: How long will I receive my goods NT156WHM-N42 V8.3 ?

A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.

Q: Do you accept sample orders of NT156WHM-N42 V8.3 ?

A: Of course!sample order is welcome !

Q: Can I pay my order of NT156WHM-N42 V8.3 via credit card ?

A: Yes!you can use your credit card through your Paypal account.
