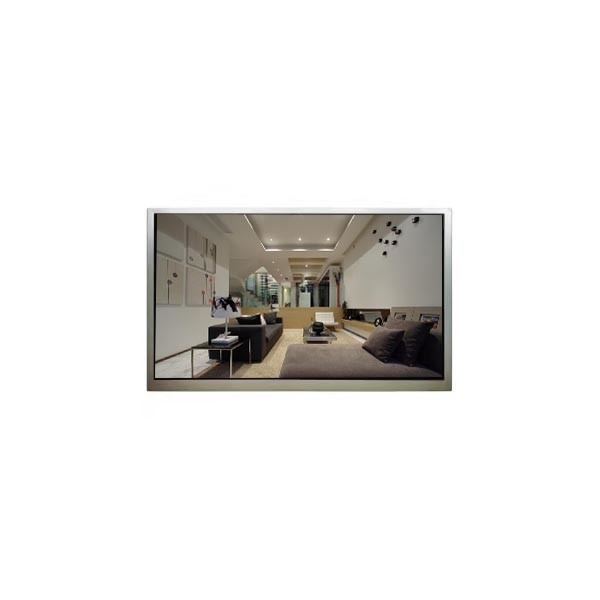

New 6.5 inch lcd screen CM6530MB2-1 LCD Screen Display Panel
Product Details:
| Place of Origin: | China |
| Brand Name: | CSOT |
| Model Number: | CM6530MB2-1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | CM6530MB2-1 | Screen Size: | 6.5" |
|---|---|---|---|
| Pixel Number: | 1080(RGB)×2340 394PPI | Active Area: | 69.498(W)×150.579(H) Mm |
| Outline Dim.: | 70.898 × 154.709× 0.46 (H×V×D) | Work Mode: | FFS, Normally Black, Transmissive |
| Responding Time: | 25 (Typ.)(Tr+Td) Ms | Number Of Color: | 16.7M 83%NTSC |
| Backlight: | No B/L | Used For: | Mobile Phone |
Product Description
New 6.5 inch lcd screen CM6530MB2-1 LCD Screen Display Panel
Product details :
| Brand | CSOT |
| Model P/N | CM6530MB2-1 |
| Diagonal Size | 6.5" |
| Panel Type | LTPS TFT-LCD, CELL, Full Cell |
| Resolution | 1080(RGB)×2340 394PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 69.498(W)×150.579(H) mm |
| Bezel Opening | - |
| Outline(mm) | 70.898 × 154.709× 0.46 (H×V×D) |
| Treatment | - |
| Luminance | 0 cd/m² |
| Contrast Ratio | 1200 : 1 (Typ.) (TM) |
| Viewing Angle | 88/88/88/88 (Typ.)(CR≥10) |
| Response | 25 (Typ.)(Tr+Td) ms |
| Good View at | Symmetry |
| Work Mode | FFS, Normally Black, Transmissive |
| Glass Thickness | 0.14+0.14 mm |
| Transmissivity | 5.84% (Typ.)(with APCF) |
| Color Depth | 16.7M 83%NTSC |
| Backlight | No B/L |
| Mass | TBD |
| Used for | Mobile Phone |
| Refresh Rate | - |
| Touchscreen | In-Cell Touch |
| Driver IC list | SuggestCOGNT3667A, FT8719, TD4320, HX83112A, ILI7807G, TD4330, FT8739, NT36670A |
| Max. Ratings | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
Why Choose Us :
According to customers' various requests,
we can match all accessories which inclusive of driver board,
touch-screen, LED backlight & LVDS cables. TFT LCD,
LCD panel, LCD display,LCD screen, LCD monitor,
LCD module from 2.2 inch to 88 inch.
Quality promised, 100% original,fast delivery,
also enjoy one year guarantee !
Shipping and Package :
1)All of our product will be testing before shipping . So you can be assured the quality of our products
2) All Panels are packed with new and firm carton, capable of long distance transportation.
3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT
4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.
FAQ:
Q: How long is the warranty of CM6530MB2-1 ?
A: 90days warranty .
Q: How can I trace my order of CM6530MB2-1 ?
A: we will give you tracking number then you can trace your order from website.
Q: Can I pay my goods CM6530MB2-1 by credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: Do you accept sample orders for CM6530MB2-1 ?
A: Of course!sample order is welcome !
