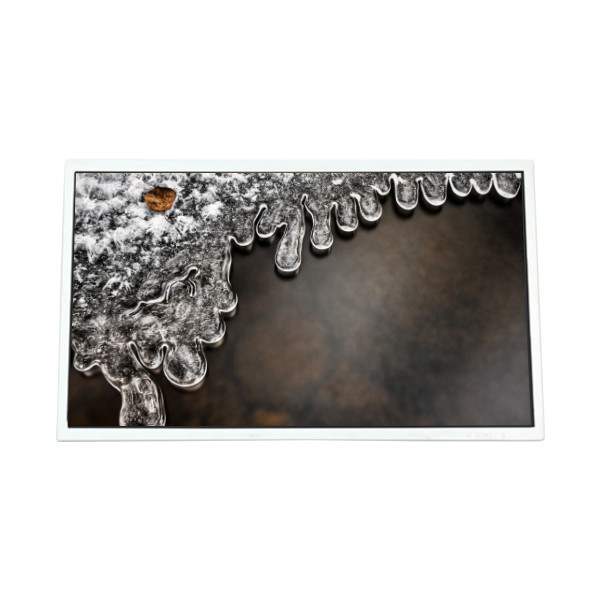

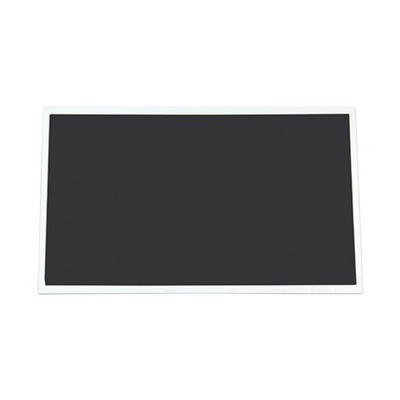

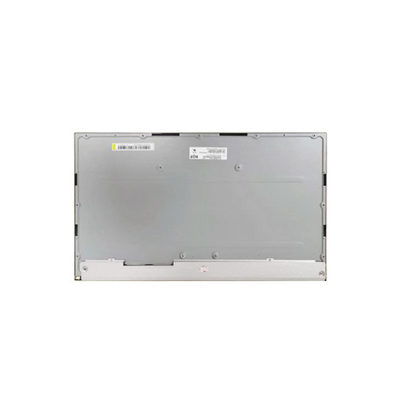

MV238QHM-N11 23.8 inch TFT LCD Panel Screen Display
Product Details:
| Place of Origin: | China |
| Brand Name: | BOE |
| Model Number: | MV238QHM-N11 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | MV238QHM-N11 | Screen Size: | 23.8" |
|---|---|---|---|
| Pixel Number: | 2560(RGB)×1440, Quad-HD 123PPI | Active Area: | 526.848(W)×296.352(H) Mm |
| Outline(mm): | 535 × 313× 14.35 (H×V×D) | Treatment: | Antiglare (Haze 25%), Hard Coating (3H) |
| Brightness: | 300 Cd/m² (Typ.) | Contrast: | 1000 : 1 (Typ.) (TM) |
| Color Depth: | 16.7M 99%sRGB | Used For: | Desktop Monitor |
Product Description
MV238QHM-N11 23.8 inch TFT LCD Panel Screen Display
Product details :
| Brand | BOE |
| Model P/N | MV238QHM-N11 |
| Diagonal Size | 23.8" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 2560(RGB)×1440, Quad-HD 123PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 526.848(W)×296.352(H) mm |
| Bezel Opening | - |
| Outline(mm) | 535 × 313× 14.35 (H×V×D) |
| Treatment | Antiglare (Haze 25%), Hard coating (3H) |
| Luminance | 300 cd/m² (Typ.) |
| Contrast Ratio | 1000 : 1 (Typ.) (TM) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Response | 14 (Typ.)(G to G) ms |
| Good View at | Symmetry |
| Work Mode | ADS, Normally Black, Transmissive |
| Color Depth | 16.7M 99%sRGB |
| Backlight | WLED, 30K hours, No Driver |
| Mass | 2.26Kgs (Typ.) |
| Used for | Desktop Monitor |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | LVDS (4 ch, 8-bit), 92 pins Connector |
| Voltage Supply | 5.0V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
Why Choose Us :
According to customers' various requests,
we can match all accessories which inclusive of driver board,
touch-screen, LED backlight & LVDS cables. TFT LCD,
LCD panel, LCD display,LCD screen, LCD monitor,
LCD module from 2.2 inch to 88 inch.
Quality promised, 100% original,fast delivery,
also enjoy one year guarantee !
Shipping and Package :
1)All of our product will be testing before shipping . So you can be assured the quality of our products
2) All Panels are packed with new and firm carton, capable of long distance transportation.
3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT
4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.
FAQ:
Q: How long is the warranty ?
A: We offer 90days warranty .
Q: Can I pay my order of MV238QHM-N11 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: If I place order now,when will you ship the goods of MV238QHM-N11 ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: How long will I receive my goods MV238QHM-N11 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
