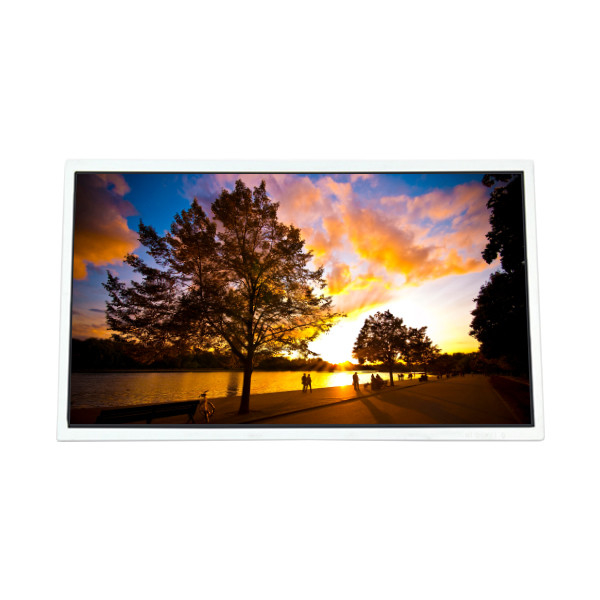

23.0 inch 1920*1080 TFT-LCD Module MV230FHM-N41 LCD Screen
Product Details:
| Place of Origin: | China |
| Brand Name: | BOE |
| Model Number: | MV230FHM-N41 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | MV230FHM-N41 | Screen Size: | 23.0" |
|---|---|---|---|
| Pixel Number: | 1920(RGB)×1080, FHD 95PPI | Active Area: | 509.184(W)×286.416(H) Mm |
| Optical Mode: | ADS, Normally Black, Transmissive | Apply To: | Desktop Monitor |
| Display Colors: | 16.7M 72%NTSC | Surface: | Antiglare (Haze 25%), Hard Coating (3H) |
| Contrast Ratio: | 1000:1 (Min.) (TM) | Application: | Desktop Monitor |
Product Description
23.0 inch 1920*1080 TFT-LCD Module MV230FHM-N41 LCD Screen
Product details :
| Brand | BOE |
| Model P/N | MV230FHM-N41 |
| Diagonal Size | 23.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1920(RGB)×1080, FHD 95PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 509.184(W)×286.416(H) mm |
| Bezel Opening | - |
| Outline Size | 517.2(W)×302.8(H)×12.8(D) mm |
| Brightness | 250 cd/m² (Typ.) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Best View on | Symmetry |
| Display Colors | 16.7M 72%NTSC |
| Frequency | 60Hz |
| Weight | 2.10Kgs |
| Surface | Antiglare (Haze 25%), Hard coating (3H) |
| Contrast Ratio | 1000:1 (Min.) (TM) |
| Display Mode | ADS, Normally Black, Transmissive |
| Response Time | 14 (Typ.)(G to G) |
| Lamp Type | WLED , 30K hours , Without Driver |
| Touch Screen | Without |
| Application | Desktop Monitor |
| Signal Interface | LVDS (2 ch, 8-bit), 30 pinsConnector |
| Input Voltage | 5.0V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ;Storage Temp.: -20 ~ 60 °C |
Why Choose Us :
According to customers' various requests,
we can match all accessories which inclusive of driver board,
touch-screen, LED backlight & LVDS cables. TFT LCD,
LCD panel, LCD display,LCD screen, LCD monitor,
LCD module from 2.2 inch to 88 inch.
Quality promised, 100% original,fast delivery,
also enjoy one year guarantee !
Shipping and Package :
1)All of our product will be testing before shipping . So you can be assured the quality of our products
2) All Panels are packed with new and firm carton, capable of long distance transportation.
3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT
4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.
FAQ:
Q: How can I trace my order of MV230FHM-N41 ?
A: we will give you tracking number then you can trace your order from website.
Q: How long is the warranty ?
A: We offer 90days warranty .
Q: Can you give me a discount if I need a large quantity of MV230FHM-N41 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Can I pay my order of MV230FHM-N41 via credit card ?
A: Yes!you can use your credit card through your Paypal account
