LCD Laptop Screen

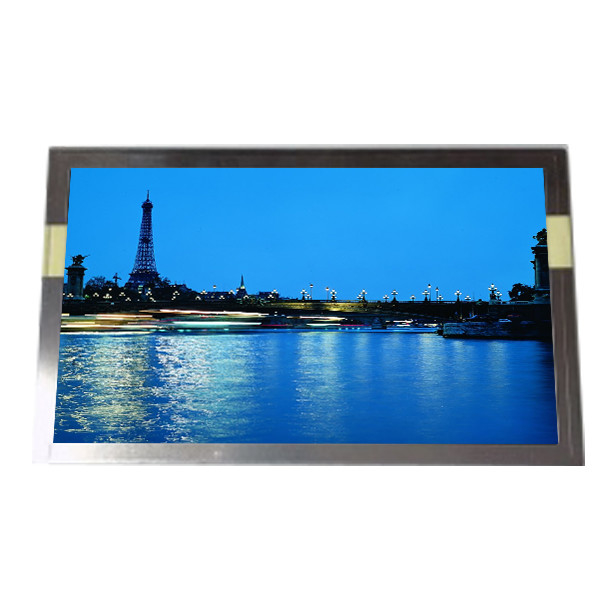

11.6 inch lcd display modules B116XAB01.3 HW6A LCD screen

All Category

Floor Standing Digital Signage

11.6 inch lcd display modules B116XAB01.3 HW6A LCD screen

Brand Name:	AUO
Model Number:	B116XAB01.3 HW6A
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin:

China

Model Name:

B116XAB01.3 HW6A

Screen Size:

11.6"

Pixel Number:

1366(RGB)×768, WXGA 135PPI

Active Area:

256.125(W)×144(H) Mm

Outline Dim.:

284.85(W)×189.84(H) ×4.2(D) Mm

Treatment:

Glare (Haze 0%), Hard Coating (7H)

Brightness:

220 Cd/m² (Typ.)

Contrast Ratio:

800:1 (Typ.) (TM)

Light Source:

WLED , 15K Hours , With LED Driver

Designed For:

Laptop

Supply Ability:

100000 Unit/Units per Month

Product Description

11.6 inch lcd display modules B116XAB01.3 HW6A LCD screen

Product details :

Brand	AUO
Model P/N	B116XAB01.3 HW6A
Diagonal Size	11.6"
Panel Type	a-Si TFT-LCD, Assembly
Resolution	1366(RGB)×768, WXGA 135PPI
Pixel Format	RGB Vertical Stripe
Active Area	256.125(W)×144(H) mm
Bezel Opening	-
Outline Dim.	284.85(W)×189.84(H) ×4.2(D) mm
Treatment	Glare (Haze 0%), Hard coating (7H)
Luminance	220 cd/m² (Typ.)
Contrast Ratio	800:1 (Typ.) (TM)
View Direction	Symmetry
Response Time	27 (Typ.)(Tr+Td)
Viewing Angle	85/85/85/85 (Typ.)(CR≥10)
Operating Mode	AHVA, Normally Black, Transmissive
Support Color	16.7M 50% NTSC
Light Source	WLED , 15K hours , With LED Driver
Shape Style	-
Designed For	Laptop
Frame Rate	60Hz
Touch Panel	On-Cell Touch, I²C
Interface Type	eDP (2 Lanes) , eDP1.2 , 40 pins Connector
Power Supply	3.3V (Typ.)
Environment	Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C

Why Choose Us :

According to customers' various requests,

we can match all accessories which inclusive of driver board,

touch-screen, LED backlight & LVDS cables. TFT LCD,

LCD panel, LCD display,LCD screen, LCD monitor,

LCD module from 2.2 inch to 88 inch.

Quality promised, 100% original,fast delivery,

also enjoy one year guarantee !

Shipping and Package :

11.6 inch lcd display modules B116XAB01.3 HW6A LCD screen 0

1)All of our product will be testing before shipping . So you can be assured the quality of our products

2) All Panels are packed with new and firm carton, capable of long distance transportation.

3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT

4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.

FAQ:

Q: How to order lcd panel B116XAB01.3 HW6A ?

A: We accept T/T , Paypal , western union .

Q: Can you tested the B116XAB01.3 HW6A before shipping ?

A: Of course , lcd screen B116XAB01.3 HW6A was Strictly tested before shipping.

Q: What happen if the B116XAB01.3 HW6A received can't work ?

A: B116XAB01.3 HW6A lcd panel was tesed before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel .

Q: How long the warranty of the B116XAB01.3 HW6A ?

A: 90 days .
