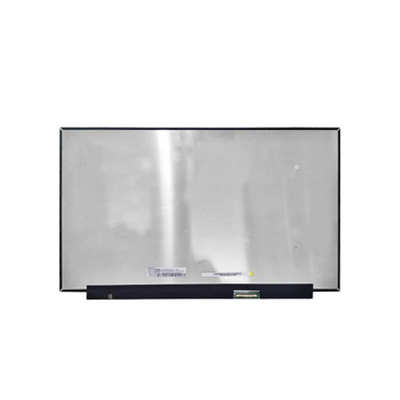

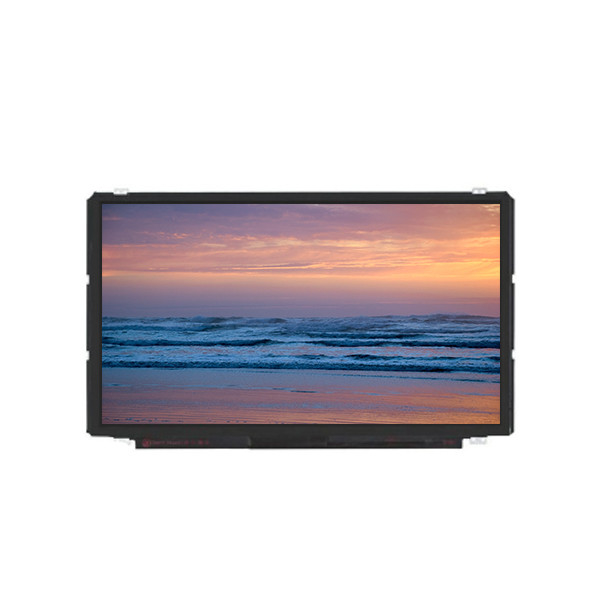

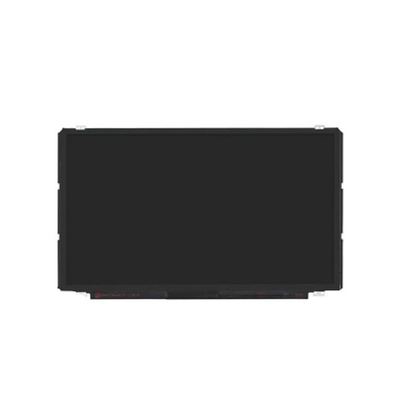

15.6 inch 1920*1080 Lcd Panel NV156FHM-NY5 TFT LCD Panel Screen Display
Product Details:
| Place of Origin: | China |
| Brand Name: | BOE |
| Model Number: | NV156FHM-NY5 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | NV156FHM-NY5 | Screen Size: | 15.6" |
|---|---|---|---|
| Resolution: | 1920(RGB)×1080, FHD 141PPI | Pixel Format: | RGB Vertical Stripe |
| Active Area: | 344.16(W)×193.59(H) Mm | Outline Dim.: | 350.66(W)×214.75(H)×2.6(D) Mm |
| Support Color: | 1.06B 99% Adobe RGB | Frame Rate: | 144Hz |
| Light Source: | WLED [10S8P] , 15K Hours , With LED Driver | Designed For: | Laptop、Gaming |
Product Description
15.6 inch 1920*1080 Lcd Panel NV156FHM-NY5 TFT LCD Panel Screen Display
Product details :
| Brand | BOE |
| Model P/N | NV156FHM-NY5 |
| Diagonal Size | 15.6" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1920(RGB)×1080, FHD 141PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 344.16(W)×193.59(H) mm |
| Bezel Opening | - |
| Outline Dim. | 350.66(W)×214.75(H)×2.6(D) mm |
| Luminance | 500 cd/m² (Typ.) |
| View Direction | Symmetry |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Support Color | 1.06B 99% Adobe RGB |
| Form Style | Slim (PCBA Flat, T≤3.2mm) |
| Frame Rate | 144Hz |
| Treatment | Antiglare, Hard coating (3H) |
| Contrast Ratio | 1200:1 (Typ.) (TM) |
| Response Time | 9 (Typ.)(Tr+Td), 5 (Typ.)(G to G), 3 (Typ.)(G to G, OD) |
| Operating Mode | HADS, Normally Black, Transmissive |
| Light Source | WLED [10S8P] , 15K hours , With LED Driver |
| Designed For | Laptop,Gaming |
| Touch Panel | Without |
| Interface Type | eDP (4 Lanes), eDP1.4, HBR2 (5.4G/lane)40 pins Connector |
| Power Supply | 3.3V (Typ.) |
| Environment | Operating Temperature: 0 ~ 50 °C; Storage Temperature: -20 ~ 60 °C |
Why Choose Us :
According to customers' various requests,
we can match all accessories which inclusive of driver board,
touch-screen, LED backlight & LVDS cables. TFT LCD,
LCD panel, LCD display,LCD screen, LCD monitor,
LCD module from 2.2 inch to 88 inch.
Quality promised, 100% original,fast delivery,
also enjoy one year guarantee !
Shipping and Package :
1)All of our product will be testing before shipping . So you can be assured the quality of our products
2) All Panels are packed with new and firm carton, capable of long distance transportation.
3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT
4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.
FAQ:
Q: Can you give me a discount if I need a large quantity of NV156FHM-NY5 ?
A: Of course!If you make a large order, we will give you a discount.
Q: How can I trace my order of NV156FHM-NY5 ?
A: we will give you tracking number then you can trace your order from website.
Q: Can I pay my order of NV156FHM-NY5 ?
A: Yes!you can use your credit card through your Paypal account.
Q: How long is the warranty ?
A: We offer 90 days warranty .
