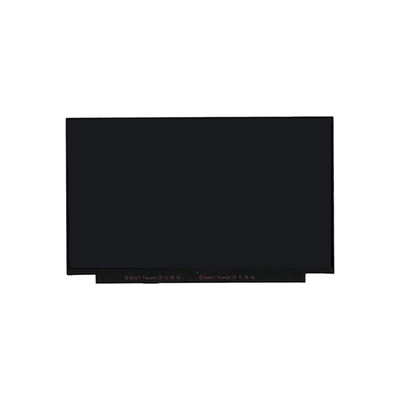

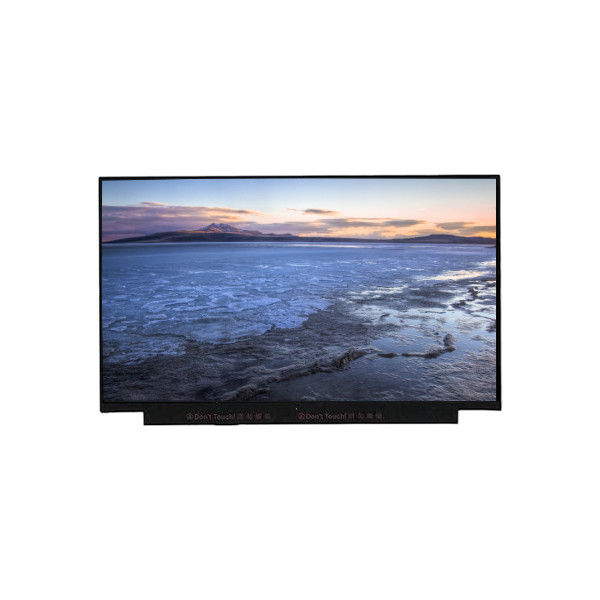

NE133QUB-N01 13.3 inch TFT LCD Panel Screen Display
Product Details:
| Place of Origin: | China |
| Brand Name: | BOE |
| Model Number: | NE133QUB-N01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | NE133QUB-N01 | Screen Size: | 13.3" |
|---|---|---|---|
| Pixel Number: | 3840(3)×2160, UHD 332PPI | Active Area: | 293.76(W)×165.24(H) Mm |
| Outline Dim.: | 297.76(H)×173.04(V)×1.25(D) Mm | Treatment: | Antiglare (Haze 25%), Hard Coating (3H) |
| Response Time: | 25 (Typ.)(Tr+Td) | Viewing Angle: | 85/85/85/85 (Typ.)(CR≥10) |
| Frame Rate: | 60Hz | Designed For: | 3D Printer |
Product Description
NE133QUB-N01 13.3 inch TFT LCD Panel Screen Display
Product details :
| Brand | BOE |
| Model P/N | NE133QUB-N01 |
| Diagonal Size | 13.3" |
| Panel Type | Oxide TFT-LCD, CELL, FOB |
| Resolution | 3840(3)×2160, UHD 332PPI |
| Pixel Format | LCR Vertical Stripe |
| Active Area | 293.76(W)×165.24(H) mm |
| Bezel Opening | - |
| Outline Dim. | 297.76(H)×173.04(V)×1.25(D) mm |
| Treatment | Antiglare (Haze 25%), Hard coating (3H) |
| Luminance | 0 cd/m² |
| Contrast Ratio | - |
| View Direction | Symmetry |
| Response Time | 25 (Typ.)(Tr+Td) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Operating Mode | ADS, Normally Black, Transmissive |
| Plate Thickness | 0.50+0.50 mm |
| Transmittance | - |
| Support Color | Grayscale |
| Light Source | No B/L |
| Weight | 167g (Max.) |
| Designed For | 3D Printer |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| D-IC Detail | COG Built-in 6 source chips |
| Interface Type | eDP (4 Lanes), eDP1.3 , HBR2 (5.4G/lane) , 40 pinsConnector |
| Power Supply | 3.3V (Typ.) |
| Environment | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
Why Choose Us :
According to customers' various requests,
we can match all accessories which inclusive of driver board,
touch-screen, LED backlight & LVDS cables. TFT LCD,
LCD panel, LCD display,LCD screen, LCD monitor,
LCD module from 2.2 inch to 88 inch.
Quality promised, 100% original,fast delivery,
also enjoy one year guarantee !
Shipping and Package :
1)All of our product will be testing before shipping . So you can be assured the quality of our products
2) All Panels are packed with new and firm carton, capable of long distance transportation.
3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT
4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.
FAQ:
Q: How long is the warranty ?
A: We offer 90days warranty .
Q: Can I pay my order of NE133QUB-N01 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: If I place order now,when will you ship the goods of NE133QUB-N01 ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: How long will I receive my goods NE133QUB-N01 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
