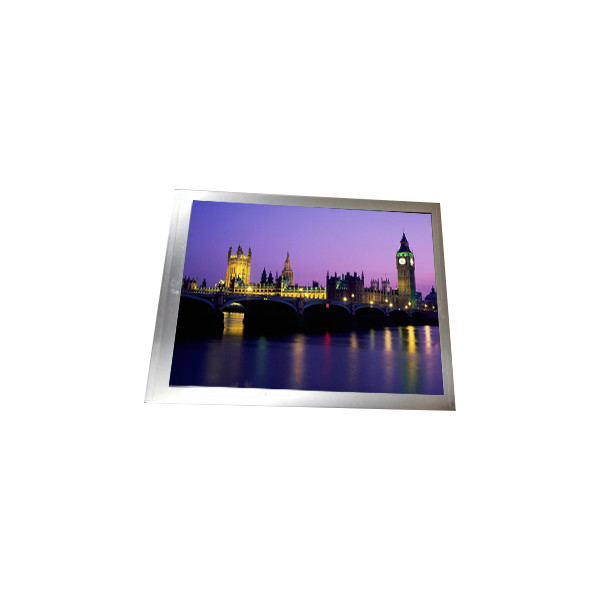

AUO B156HAN02.1 HW4B 15.6 inch TFT LCD Panel Screen Display
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | B156HAN02.1 HW4B |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | B156HAN02.1 HW4B | Screen Size: | 15.6" |
|---|---|---|---|
| Pixel Number: | 1920(RGB)×1080, FHD 141PPI | Active Area: | 344.16(W)×193.59(H) Mm |
| Outline Size: | 350.66(W)×216.15(H) ×3.2(D) Mm | Viewing Angle: | 85/85/85/85 (Typ.)(CR≥10) |
| Luminance: | 250 Cd/m² (Typ.) | Contrast Ratio: | 700:1 (Typ.) (TM) |
| View Direction: | Symmetry | Designed For: | Laptop |
Product Description
AUO B156HAN02.1 HW4B 15.6 inch TFT LCD Panel Screen Display
Product details :
| Brand | AUO |
| Model P/N | B156HAN02.1 HW4B |
| Diagonal Size | 15.6" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1920(RGB)×1080, FHD 141PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 344.16(W)×193.59(H) mm |
| Bezel Opening | - |
| Outline Dim. | 350.66(W)×216.15(H) ×3.2(D) mm |
| Treatment | Antiglare |
| Luminance | 250 cd/m² (Typ.) |
| Contrast Ratio | 700:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 25 (Typ.)(Tr+Td) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Operating Mode | AHVA, Normally Black, Transmissive |
| Support Color | 262K 46% NTSC |
| Light Source | WLED , 15K hours , With LED Driver |
| Shape Style | Slim (PCBA Flat, T≤3.2mm) |
| Designed For | Laptop |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | eDP (2 Lanes) , eDP1.2 , 30 pins Connector |
| Power Supply | 3.3V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
Why Choose Us :
According to customers' various requests,
we can match all accessories which inclusive of driver board,
touch-screen, LED backlight & LVDS cables. TFT LCD,
LCD panel, LCD display,LCD screen, LCD monitor,
LCD module from 2.2 inch to 88 inch.
Quality promised, 100% original,fast delivery,
also enjoy one year guarantee !
Shipping and Package :
1)All of our product will be testing before shipping . So you can be assured the quality of our products
2) All Panels are packed with new and firm carton, capable of long distance transportation.
3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT
4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.
FAQ:
Q: How long is the warranty of B156HAN02.1 HW4B ?
A: 90days warranty .
Q: How can I trace my order of B156HAN02.1 HW4B ?
A: we will give you tracking number then you can trace your order from website.
Q: Can I pay my goods B156HAN02.1 HW4B by credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: Do you accept sample orders for B156HAN02.1 HW4B ?
A: Of course!sample order is welcome !
