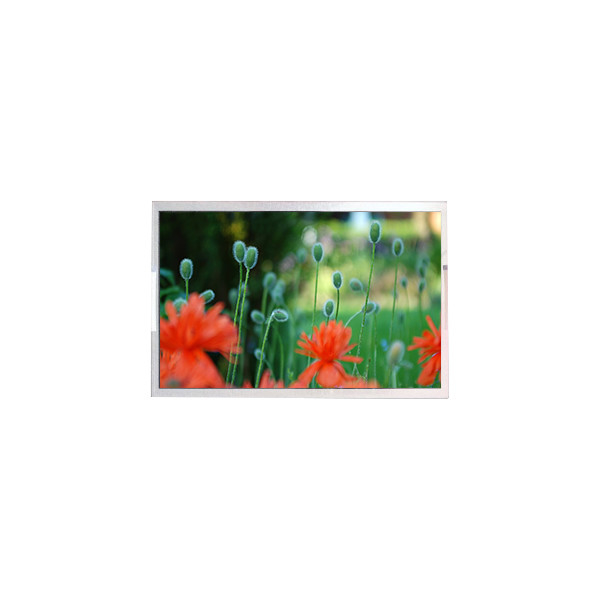

Name: New AUO B140HAB04.0 14.0 inch lcd display screen panel
Brand: Shenzhen Yongsheng Innovation Technology Co., Ltd
SKU: B140HAB04.0
Availability: InStock

Brand Name:	AUO
Model Number:	B140HAB04.0
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

B140HAB04.0

Screen Size:

14.0"

Pixel Number:

1920(RGB)×1080, FHD 157PPI

Display Area:

309.14(W)×173.89(H) Mm

Outline Size:

316.3(W)×209.95(H) ×3.4(D) Mm

Treatment:

Anti Fingerprint, Hard Coating (5H), Antireflection

Luminance:

300 Cd/m² (Typ.)

Contrast Ratio:

700:1 (Typ.) (TM)

Light Source:

WLED , 15K Hours , With LED Driver

Designed For:

Laptop

Supply Ability:

100000 Unit/Units per Month

Product Description

New AUO B140HAB04.0 14.0 inch lcd display screen panel

Product details :

Brand	AUO
Model P/N	B140HAB04.0
Diagonal Size	14.0"
Panel Type	a-Si TFT-LCD, Assembly
Resolution	1920(RGB)×1080, FHD 157PPI
Pixel Format	RGB Vertical Stripe
Active Area	309.14(W)×173.89(H) mm
Bezel Opening	-
Outline Dim.	316.3(W)×209.95(H) ×3.4(D) mm
Treatment	Anti Fingerprint, Hard coating (5H), Antireflection
Luminance	300 cd/m² (Typ.)
Contrast Ratio	700:1 (Typ.) (TM)
View Direction	Symmetry
Response Time	25 (Typ.)(Tr+Td)
Viewing Angle	85/85/85/85 (Typ.)(CR≥10)
Operating Mode	AHVA, Normally Black, Transmissive
Support Color	16.2M 72% NTSC
Light Source	WLED , 15K hours , With LED Driver
Shape Style	-
Designed For	Laptop
Frame Rate	60Hz
Touch Panel	On-Cell Touch, USB
Interface Type	eDP (2 Lanes) , eDP1.2 , 40 pins Connector
Power Supply	3.3V (Typ.)
Environment	Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C

Why Choose Us :

According to customers' various requests,

we can match all accessories which inclusive of driver board,

touch-screen, LED backlight & LVDS cables. TFT LCD,

LCD panel, LCD display,LCD screen, LCD monitor,

LCD module from 2.2 inch to 88 inch.

Quality promised, 100% original,fast delivery,

also enjoy one year guarantee !

Shipping and Package :

New AUO B140HAB04.0 14.0 inch lcd display screen panel 0

1)All of our product will be testing before shipping . So you can be assured the quality of our products

2) All Panels are packed with new and firm carton, capable of long distance transportation.

3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT

4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.

FAQ:

Q: How long is the warranty ?

A: We offer 90days warranty .

Q: Can You declare my order of B140HAB04.0 to a lower price in commercial invoice for customs ?

A: Yes , we can . pls inform us before shipping .

Q: How to make payment of B140HAB04.0 ?

A: We accept T/T , Paypal , western union .

Q: Can you give me a discount if I need a large quantity of B140HAB04.0 ?

A: Of course!If you make a large order, we will give you a discount.
