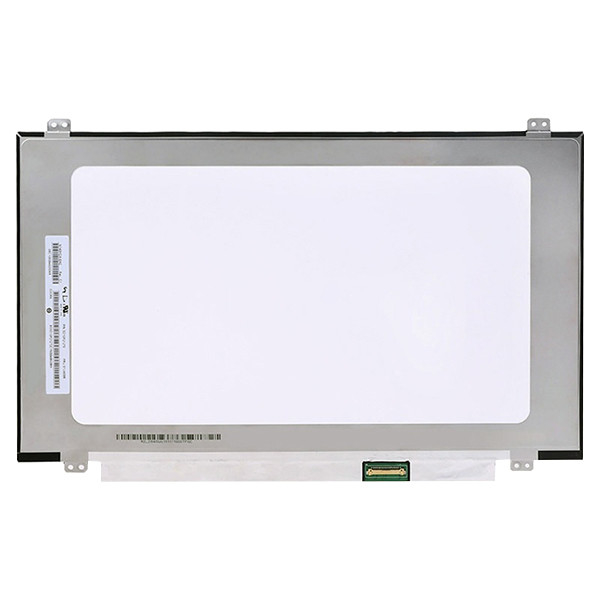

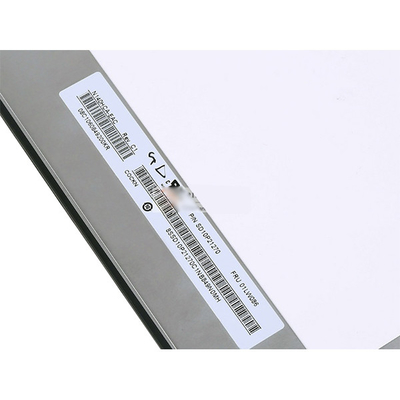

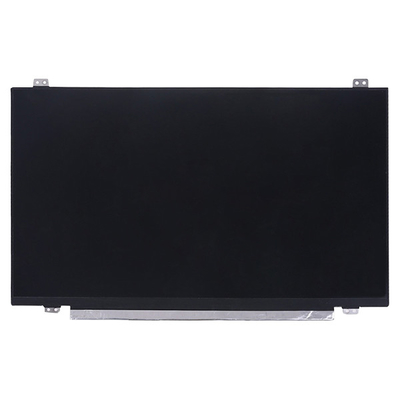

Name: Industrial LCD Panel 14 Inch N140HCA-EAC Rev.C1 Laptop LCD
Brand: Shenzhen Yongsheng Innovation Technology Co., Ltd
SKU: N140HCA-EAC Rev.C1
Availability: InStock

Brand Name:	Innolux
Model Number:	N140HCA-EAC Rev.C1
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

N140HCA-EAC Rev.C1

Screen Size:

14.0 Inches

Pixel Number:

1920(RGB)×1080 [FHD] 157PPI

Display Area:

309.31(H)×173.99(V) Mm

Outline Size:

315.81(H)×205.12(V) ×3(D) Mm

Form Style:

Slim (PCBA Flat, T≤3.2mm)

Luminance:

250 Cd/m² (Typ.)

Contrast Ratio:

800:1 (Typ.) (TM)

Supply Ability:

100000 Unit/Units per Month

Highlight:

N140HCA-EAC Rev.C1 LCD Display

157PPI Industrial Lcd Display

Product Description

Industrial LCD Panel Display 14 inch N140HCA-EAC Rev.C1 Laptop LCD

Product details :

Innolux LCD SCREEN N140HCA-EAC Rev.C1
manufacturer	Innolux
Model Name	N140HCA-EAC Rev.C1
screen size	14.0 inch
Screen type	a-Si TFT-LCD , LCM
Resolution	1920(RGB)×1080 [FHD] 157PPI
Pixel configuration	RGB Vertical Stripe
Display size	309.31(H)×173.99(V) mm
physical dimension	315.81(H)×205.12(V) ×3(D) mm
surface treatment	Antiglare, Hard coating (3H)
Brightness	250 cd/m² (Typ.)
Contrast	800:1 (Typ.) (TM)
Best angle	Symmetry
Optical mode	AAS, Normally Black, Transmissive
Viewing angle	89/89/89/89 (Typ.)(CR≥10)
Responding time	14/11 (Typ.)(Tr/Td)
Number of color	262K 45% NTSC
Backlight type	WLED , 15K hours , With LED Driver
Form Style	Slim (PCBA Flat, T≤3.2mm)
Apply to	Laptop / Industrial
Refresh rate	60Hz
Touch function	No touch
signal system	eDP (2 Lanes) , eDP1.2 30 pins Connector
Supply voltage	3.3V (Typ.)
Maximum rating	Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C
LCD Screen Panel Display 14 inch N140HCA-EAC Rev.C1 Laptop LCD

Innolux N140HCA-EAC Rev.C1 Mechanical Details

Pixel Features :	Pixel Format	1920(RGB)×1080 [FHD]	Dot Pitch	0.0537×0.1611 mm (H×V)
Pixel Features :	Configuration	RGB Vertical Stripe	Pixel Pitch	0.1611×0.1611 mm (H×V) [157PPI]
Mechanical Size :	Display Area	309.31×173.99 mm (H×V)	Bezel Area	-
Mechanical Size :	Outline Dim.	315.81×205.12 mm (H×V)	Outline Depth	2.85/3.0 (Typ./Max.) mm
Outline Features :	Form Factor	Flat Rectangle	Orientation	Landscape type
Outline Features :	Aspect Ratio	16:9 (H:V)	Shape Style	Slim (PCBA Flat, T≤3.2mm)
Holes & Brackets :	Face mounting holes (8 pcs) on up, down slugs
Other Features :	Weight	280g (Max.)	Surface	Antiglare, Hard coating (3H)

Why Choose Us :

According to customers' various requests,

we can match all accessories which inclusive of driver board,

touch-screen, LED backlight & LVDS cables. TFT LCD,

LCD panel, LCD display,LCD screen, LCD monitor,

LCD module from 2.2 inch to 88 inch.

Quality promised, 100% original,fast delivery,

also enjoy one year guarantee !

Shipping and Package :

Industrial LCD Panel 14 Inch N140HCA-EAC Rev.C1 Laptop LCD 0

1)All of our product will be testing before shipping . So you can be assured the quality of our products

2) All Panels are packed with new and firm carton, capable of long distance transportation.

3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT

4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.

FAQ:

Q: How to make payment of N140HCA-EAC Rev.C1 ?

A: We accept T/T , Paypal , western union .

Q: Can you give me a discount if I need a large quantity of N140HCA-EAC Rev.C1 ?

A: Of course!If you make a large order, we will give you a discount.

Q: Can You declare my order of N140HCA-EAC Rev.C1 to a lower price in commercial invoice for customs ?

A: Yes , we can . pls inform us before shipping .

Q: Can I pay my order of N140HCA-EAC Rev.C1 via credit card ?

A: Yes!you can use your credit card through your Paypal account.

*Pls feel free to contact us for any questions or special requirements . Thank you so much for your coopreation !
