LCD Laptop Screen

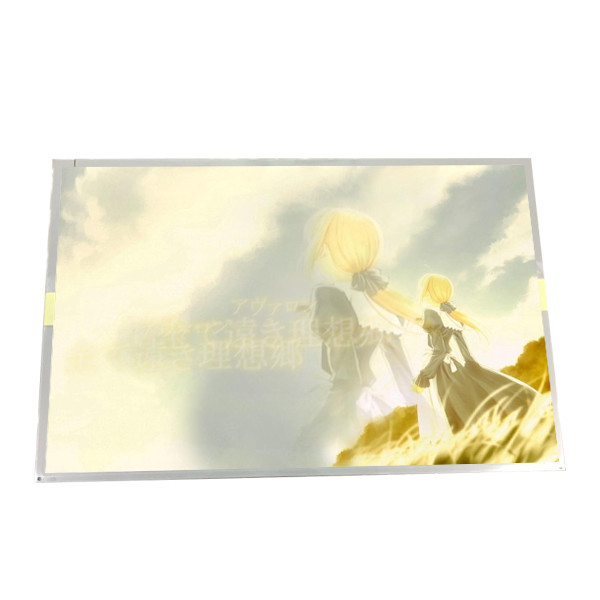

AUO lcd Screen panels display B116XAB01.4 HW5A 11.6 inch TFT-LCD Monitor

All Category

Floor Standing Digital Signage

AUO lcd Screen panels display B116XAB01.4 HW5A 11.6 inch TFT-LCD Monitor

Brand Name:	AUO
Model Number:	B116XAB01.4 HW5A
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin:

China

Model Name:

B116XAB01.4 HW5A

Screen Size:

11.6"

Pixel Number:

1366(RGB)×768, WXGA 135PPI

Active Area:

256.125(W)×144(H) Mm

Outline(mm):

287.7(W)×185.6(H)×4.2(D)

Luminance:

235 (Typ.)(cd/m²)

Viewing Angle:

85/85/85/85 (Typ.)(CR≥10)

Contrast Ratio:

800 : 1 (Typ.) (TM)

Designed For:

Laptop

Supply Ability:

100000 Unit/Units per Month

Product Description

AUO lcd Screen panels display B116XAB01.4 HW5A 11.6 inch TFT-LCD Monitor

Product details :

Brand	AUO
Model P/N	B116XAB01.4 HW5A
Diagonal Size	11.6"
Panel Type	a-Si TFT-LCD, Assembly
Resolution	1366(RGB)×768, WXGA 135PPI
Pixel Format	RGB Vertical Stripe
Active Area	256.125(W)×144(H) mm
Bezel Opening	-
Outline Dim.	287.7(W)×185.6(H)×4.2(D)
Treatment	Glare (Haze 0%), Hard coating (7H)
Luminance	235 (Typ.)(cd/m²)
Contrast Ratio	800 : 1 (Typ.) (TM)
View Direction	Symmetry
Response Time	27 (Typ.)(Tr+Td) ms
Viewing Angle	85/85/85/85 (Typ.)(CR≥10)
Operating Mode	-
Support Color	262K 50% NTSC
Light Source	WLED , 15K hours , With LED Driver
Outline Shape	-
Designed For	Laptop
Frame Rate	60Hz
Touch Panel	On-Cell Touch, I²C
Interface Type	eDP (1 Lane) , eDP1.2 , 40 pins Connector
Power Supply	3.3V (Typ.)
Environment	Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C

Why Choose Us :

According to customers' various requests,

we can match all accessories which inclusive of driver board,

touch-screen, LED backlight & LVDS cables. TFT LCD,

LCD panel, LCD display,LCD screen, LCD monitor,

LCD module from 2.2 inch to 88 inch.

Quality promised, 100% original,fast delivery,

also enjoy one year guarantee !

Shipping and Package :

AUO lcd Screen panels display B116XAB01.4 HW5A 11.6 inch TFT-LCD Monitor 0

1)All of our product will be testing before shipping . So you can be assured the quality of our products

2) All Panels are packed with new and firm carton, capable of long distance transportation.

3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT

4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.

FAQ:

Q: How to make payment of B116XAB01.4 HW5A ?

A: We accept T/T , Paypal , western union .

Q: If I place order now,when will you ship the goods of B116XAB01.4 HW5A ?

A: The order will be shipped within 2-3 working days after received your payment.

Q: Can You declare my order of B116XAB01.4 HW5A to a lower price in commercial invoice for customs ?

A: Yes , we can . pls inform us before shipping .

Q: How long is the warranty ?

A: We offer 90 days warranty .

*Pls feel free to contact us for any questions or special requirements . Thank you so much for your coopreation !
