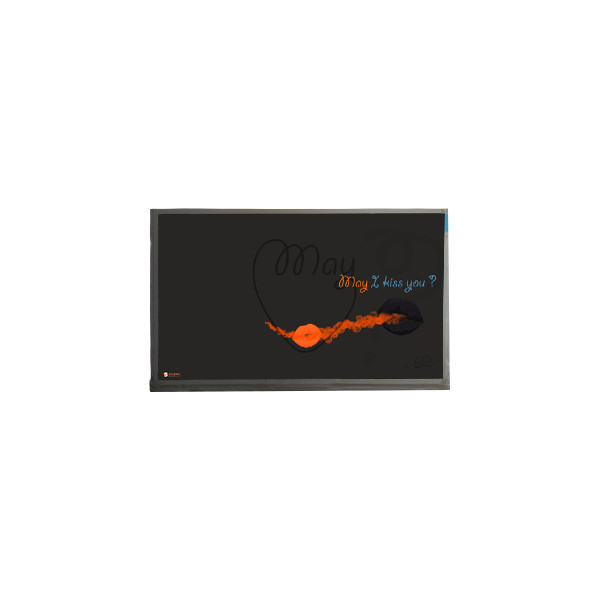

10.1 inch LCD Panel F101A29-604 LCD DISPLAY PANEL
Product Details:
| Place of Origin: | China |
| Brand Name: | Innolux |
| Model Number: | F101A29-604 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | F101A29-604 | Screen Size: | 10.1" |
|---|---|---|---|
| Screen Type: | 1200(RGB)×1920, WUXGA 225PPI | Active Area: | 135.36(W)×216.576(H) Mm |
| Outline Size: | 140.4(W)×225.35(H)×0.4(D) Mm | Best View On: | Symmetry |
| Viewing Angle: | 85/85/85/85 (Typ.)(CR≥10) | Response Time: | 25 (Typ.)(Tr+Td) |
| Lamp Type: | No B/L | Application: | Pad & Tablet |
Product Description
10.1 inch LCD Panel F101A29-604 LCD DISPLAY PANEL
Product details :
| Brand | Innolux |
| Model P/N | F101A29-604 |
| Diagonal Size | 10.1" |
| Panel Type | a-Si TFT-LCD, CELL, Q-CUT (Full Cell) |
| Resolution | 1200(RGB)×1920, WUXGA 225PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 135.36(W)×216.576(H) mm |
| Bezel Opening | - |
| Outline Size | 140.4(W)×225.35(H)×0.4(D) mm |
| Brightness | 0 cd/m² |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Best View on | Symmetry |
| Glass Depth | 0.20+0.20 mm |
| Display Colors | 16.7M 65%NTSC |
| Frequency | - |
| Weight | - |
| Surface | - |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| Display Mode | AAS, Normally Black, Transmissive |
| Response Time | 25 (Typ.)(Tr+Td) |
| Transmissivity | 4.04% (Typ.) |
| Lamp Type | No B/L |
| Touch Screen | Without |
| Application | Pad & Tablet |
| Driver IC | COGSuggest NT51021B, OTA7290B, HX8279D |
| Environment | Operating Temp.: -20 ~ 60 °C ;Storage Temp.: -25 ~ 70 °C |
Why Choose Us :
According to customers' various requests,
we can match all accessories which inclusive of driver board,
touch-screen, LED backlight & LVDS cables. TFT LCD,
LCD panel, LCD display,LCD screen, LCD monitor,
LCD module from 2.2 inch to 88 inch.
Quality promised, 100% original,fast delivery,
also enjoy one year guarantee !
Shipping and Package :
1)All of our product will be testing before shipping . So you can be assured the quality of our products
2) All Panels are packed with new and firm carton, capable of long distance transportation.
3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT
4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.
FAQ:
Q: How do you ship my goods F101A29-604 ?
A: We can shipping all over the world.via DHL,UPS,Fedex and EMS, the packaging is very safe and strong.
Q: How long is the warranty of F101A29-604 ?
A: 90days warranty .
Q: Are you manufactory or trade company ?
A: We are a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.
Q: Can You declare my order of LCD panel F101A29-604 at a very low value ?
A: Yes , we can . pls inform us before shipping .
*Pls feel free to contact us for any questions or special requirements . Thank you so much for your coopreation !
