Name: Innolux 6.6 inch 720*1600 tft lcd display F066A16-4T1 LCD Screen
Brand: Shenzhen Yongsheng Innovation Technology Co., Ltd
SKU: F066A16-4T1
Availability: InStock

Brand Name:	Innolux
Model Number:	F066A16-4T1
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

F066A16-4T1

Screen Size:

6.6"

Screen Type:

720(RGB)×1600 267PPI

Active Area:

68.256(W)×151.68(H) Mm

Outline Size:

70.256 × 156.98× 0.8 (H×V×D)

Treatment:

Without Polarizer

Luminance:

0 Cd/m²

Contrast Ratio:

1500 : 1 (Typ.) (TM)

Color Depth:

16.7M 69%NTSC

Used For:

Mobile Phone

Supply Ability:

100000 Unit/Units per Month

Product Description

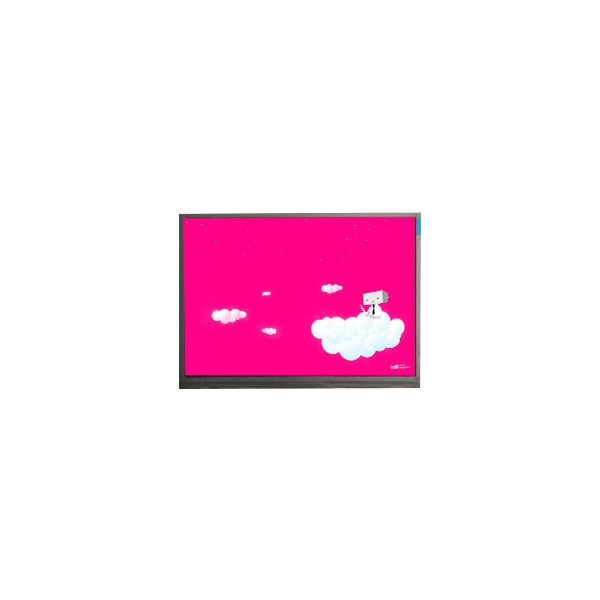

Innolux 6.6 inch 720*1600 tft lcd display F066A16-4T1 LCD Screen

Product details :

Brand	Innolux
Model P/N	F066A16-4T1
Diagonal Size	6.6"
Panel Type	a-Si TFT-LCD, CELL, Q-CUT (Full Cell)
Resolution	720(RGB)×1600 267PPI
Pixel Format	RGB Vertical Stripe
Active Area	68.256(W)×151.68(H) mm
Bezel Opening	-
Outline(mm)	70.256 × 156.98× 0.8 (H×V×D)
Treatment	Without Polarizer
Luminance	0 cd/m²
Contrast Ratio	1500 : 1 (Typ.) (TM)
Viewing Angle	80/80/80/80 (Typ.)(CR≥10)
Response	25 (Typ.)(Tr+Td) ms
Good View at	Symmetry
Work Mode	AAS, Normally Black, Transmissive
Glass Thickness	0.40+0.40 mm
Transmissivity	3.85
Color Depth	16.7M 69%NTSC
Backlight	No B/L
Mass	-
Used for	Mobile Phone
Refresh Rate	90Hz
Touchscreen	In-Cell Touch, I²C/SPI
Driver IC list	SuggestCOGFT8006S-AB, ILI9882N, NT36525C
Max. Ratings	Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C

Why Choose Us :

According to customers' various requests,

we can match all accessories which inclusive of driver board,

touch-screen, LED backlight & LVDS cables. TFT LCD,

LCD panel, LCD display,LCD screen, LCD monitor,

LCD module from 2.2 inch to 88 inch.

Quality promised, 100% original,fast delivery,

also enjoy one year guarantee !

Shipping and Package :

Innolux 6.6 inch 720*1600 tft lcd display F066A16-4T1 LCD Screen 0

1)All of our product will be testing before shipping . So you can be assured the quality of our products

2) All Panels are packed with new and firm carton, capable of long distance transportation.

3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT

4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.

FAQ:

Q: How do you ship my goods F066A16-4T1 ?

A: We can shipping all over the world.via DHL,UPS,Fedex and EMS, the packaging is very safe and strong.

Q: Are you manufactory or trade company ?

A: We are a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.

Q: Can You declare my order of lcd display screen F066A16-4T1 at a very low value ?

A: Yes , we can . pls inform us before shipping .

Q: How long is the warranty of F066A16-4T1 ?

A: 90 days warranty .
