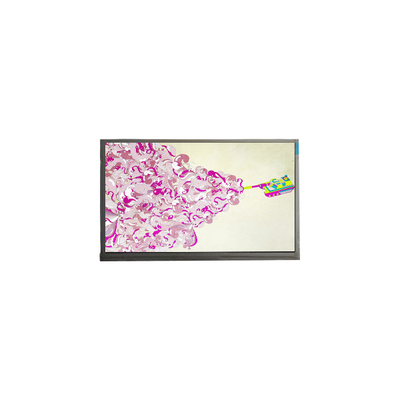

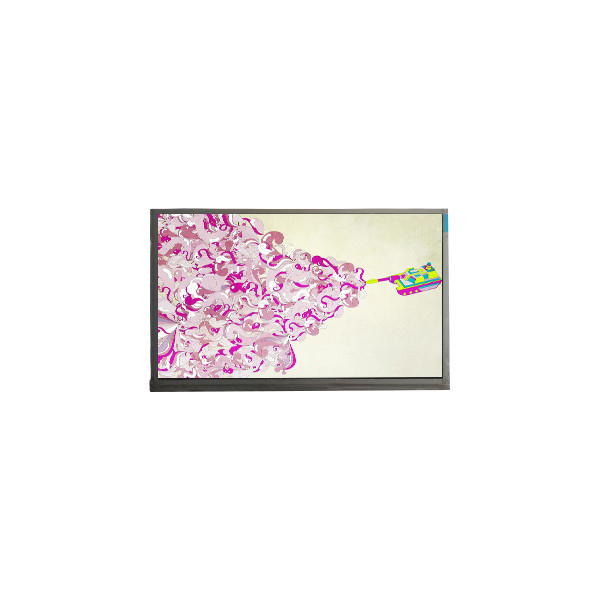

8.0 inch 1024*768 F080A35-602 lcd display
Product Details:
| Place of Origin: | China |
| Brand Name: | Innolux |
| Model Number: | F080A35-602 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | F080A35-602 | Screen Size: | 8.0" |
|---|---|---|---|
| Screen Type: | 1024(RGB)×768, XGA 160PPI | Display Area: | 162.048(W)×121.536(H) Mm |
| Outline Size: | 171.124 × 132.618× 0.8 (H×V×D) | Response: | 25 (Typ.)(Tr+Td) Ms |
| Luminance: | 0 Cd/m² | Contrast Ratio: | 800 : 1 (Typ.) (TM) |
| Backlight: | No B/L | Used For: | Digital Photo Frame |
Product Description
8.0 inch 1024*768 F080A35-602 lcd display
Product details :
| Brand | Innolux |
| Model P/N | F080A35-602 |
| Diagonal Size | 8.0" |
| Panel Type | a-Si TFT-LCD, CELL, Q-CUT (Full Cell) |
| Resolution | 1024(RGB)×768, XGA 160PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 162.048(W)×121.536(H) mm |
| Bezel Opening | - |
| Outline(mm) | 171.124 × 132.618× 0.8 (H×V×D) |
| Treatment | - |
| Luminance | 0 cd/m² |
| Contrast Ratio | 800 : 1 (Typ.) (TM) |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) |
| Response | 25 (Typ.)(Tr+Td) ms |
| Good View at | Symmetry |
| Work Mode | AAS, Normally Black, Transmissive |
| Glass Thickness | 0.40+0.40 mm |
| Transmissivity | 4.0% (Typ.) |
| Color Depth | 16.7M |
| Backlight | No B/L |
| Mass | - |
| Used for | Digital Photo Frame |
| Refresh Rate | - |
| Touchscreen | Without |
| Driver IC list | Suggest COG NT39212C+NT51008 |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: -10 ~ 50 °C |
