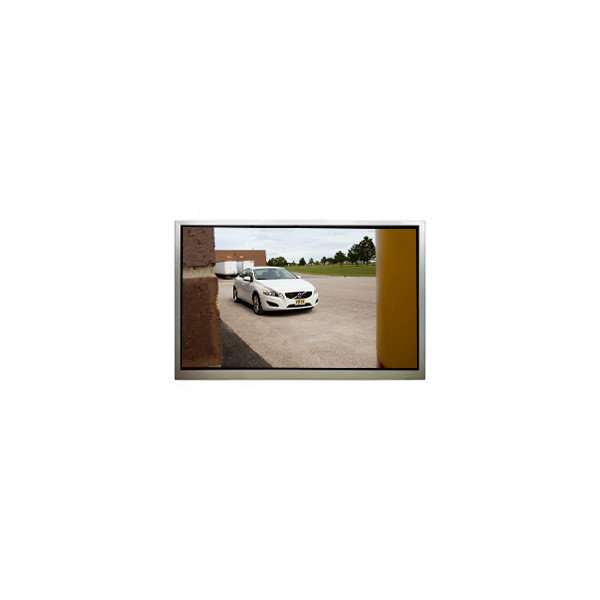

HSD080JDW2-A20 8.0 inch 800*480 LCD MODULE
Product Details:
| Place of Origin: | China |
| Brand Name: | HannStar |
| Model Number: | HSD080JDW2-A20 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | HSD080JDW2-A20 | Screen Size: | 8.0" |
|---|---|---|---|
| Screen Type: | 800(RGB)×480, WVGA 116PPI | Active Area: | 174(W)×104.4(H) Mm |
| Outline Size: | 188.5(H)×119.3(V)×7.35(D) Mm | Treatment: | Antiglare, Reflection 3.0% (Max.) |
| Response Time: | 25 (Max.)(Tr+Td) | Display Colors: | 262K/16.7M 70%NTSC |
| Designed For: | Outdoor High Brightness、Automotive Display | Interface Type: | TTL (1 Ch, 8-bit), 50 PinsFPC |
Product Description
HSD080JDW2-A20 8.0 inch 800*480 LCD MODULE
Product details :
| Brand | HannStar |
| Model P/N | HSD080JDW2-A20 |
| Diagonal Size | 8.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 800(RGB)×480, WVGA 116PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 174(W)×104.4(H) mm |
| Bezel Opening | - |
| Outline Dim. | 188.5(H)×119.3(V)×7.35(D) mm |
| Treatment | Antiglare, Reflection 3.0% (Max.) |
| Luminance | 930 cd/m² (Typ.) |
| Contrast Ratio | 800:1 (Min.) (TM) |
| View Direction | Symmetry |
| Response Time | 25 (Max.)(Tr+Td) |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) |
| Operating Mode | IPS Pro, Normally Black, Transmissive |
| Support Color | 262K/16.7M 70%NTSC |
| Light Source | WLED [6S3P], 10K hours, W/O Driver |
| Weight | 200±13g |
| Designed For | Outdoor High Brightness,Automotive Display |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | TTL (1 ch, 8-bit), 50 pinsFPC |
| Power Supply | 3.3/13/18/-10V (Typ.)(VDD/AVDD/VGH/VGL) |
| Environment | Operating Temperature: -30 ~ 85 °C ; Storage Temperature: -40 ~ 95 °C ; Vibration Level: 2.9G (28.4 m/s²) |
Why Choose Us :
According to customers' various requests,
we can match all accessories which inclusive of driver board,
touch-screen, LED backlight & LVDS cables. TFT LCD,
LCD panel, LCD display,LCD screen, LCD monitor,
LCD module from 2.2 inch to 88 inch.
Quality promised, 100% original,fast delivery,
also enjoy one year guarantee !
Shipping and Package :
1)All of our product will be testing before shipping . So you can be assured the quality of our products
2) All Panels are packed with new and firm carton, capable of long distance transportation.
3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT
4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.
FAQ:
Q: How can I trace my order of HSD080JDW2-A20 ?
A: we will give you tracking number then you can trace your order from website.
Q: How to make payment of HSD080JDW2-A20 ?
A: We accept T/T , Paypal , western union .
Q: Do you accept sample orders of HSD080JDW2-A20 ?
A: Of course!sample order is welcome !
Q: Can you give me a discount if I need a large quantity of HSD080JDW2-A20 ?
A: Of course!If you make a large order, we will give you a discount.
*Pls feel free to contact us for any questions or special requirements . Thank you so much for your coopreation !
