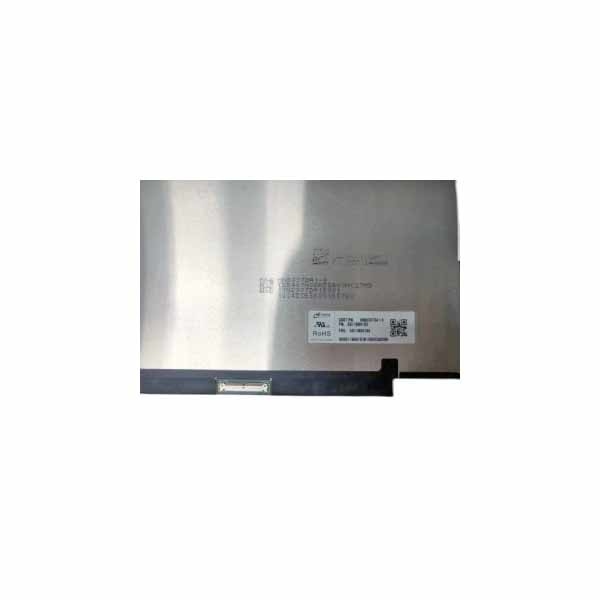

13.3 inch LCD display screen MND307DA1-8 TFT LCD Panel
Product Details:
| Place of Origin: | China |
| Brand Name: | CSOT |
| Model Number: | MND307DA1-8 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | MND307DA1-8 | Screen Size: | 13.3" |
|---|---|---|---|
| Resolution: | 2560(RGB)×1600, WQXGA 227PPI | Active Area(mm): | 286.08(W)×178.8(H) Mm |
| Outline(mm): | 291.08 × 195.3× 2.4 (H×V×D) | Treatment: | Antiglare |
| Brightness: | 300 Cd/m² (Typ.) | Contrast: | 1500 : 1 (Typ.) (TM) |
| Outline Shape: | Slim (PCBA Flat, T≤3.2mm) | Used For: | Laptop |
Product Description
13.3 inch LCD display screen MND307DA1-8 TFT LCD Panel
Product details :
| Brand | CSOT |
| Model P/N | MND307DA1-8 |
| Diagonal Size | 13.3" |
| Panel Type | LTPS TFT-LCD, LCM |
| Resolution | 2560(RGB)×1600, WQXGA 227PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 286.08(W)×178.8(H) mm |
| Bezel Opening | - |
| Outline(mm) | 291.08 × 195.3× 2.4 (H×V×D) |
| Treatment | Antiglare |
| Luminance | 300 cd/m² (Typ.) |
| Contrast Ratio | 1500 : 1 (Typ.) (TM) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Response | 25 (Typ.)(Tr+Td) ms |
| Good View at | Symmetry |
| Work Mode | FFS, Normally Black, Transmissive |
| Color Depth | 16.7M 99%sRGB |
| Backlight | WLED, 15K hours, With LED Driver |
| Outline Shape | Slim (PCBA Flat, T≤3.2mm) |
| Used for | Laptop |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | eDP (4 Lanes) , HBR1 (2.7G/lane) , 40 pinsConnector |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
Why Choose Us :
According to customers' various requests,
we can match all accessories which inclusive of driver board,
touch-screen, LED backlight & LVDS cables. TFT LCD,
LCD panel, LCD display,LCD screen, LCD monitor,
LCD module from 2.2 inch to 88 inch.
Quality promised, 100% original,fast delivery,
also enjoy one year guarantee !
Shipping and Package :
1)All of our product will be testing before shipping . So you can be assured the quality of our products
2) All Panels are packed with new and firm carton, capable of long distance transportation.
3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT
4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.
FAQ:
Q: How do you ship my goods MND307DA1-8 ?
A: We can shipping all over the world.via DHL,UPS,Fedex and EMS, the packaging is very safe and strong.
Q: How long is the warranty of MND307DA1-8 ?
A: 90days warranty .
Q: Are you manufactory or trade company ?
A: We are a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.
Q: Can You declare my order of LCD panel MND307DA1-8 at a very low value ?
A: Yes , we can . pls inform us before shipping .
*Pls feel free to contact us for any questions or special requirements . Thank you so much for your coopreation !
