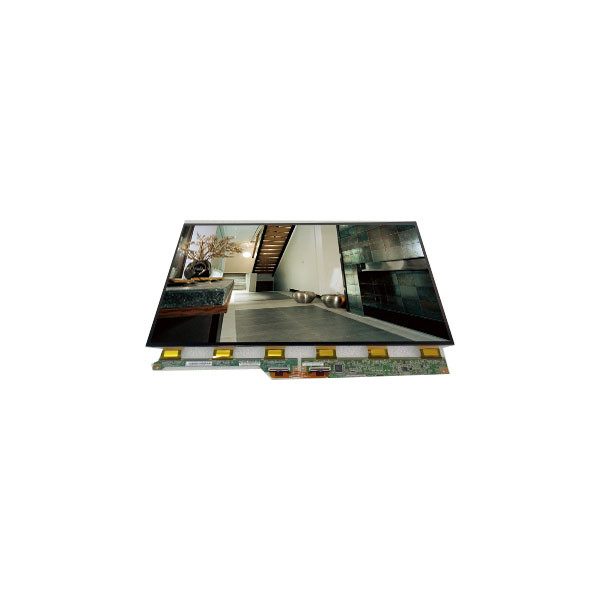

New and original LCD SG2701B01-9 27.0 inch tft lcd screen
Product Details:
| Place of Origin: | China |
| Brand Name: | CSOT |
| Model Number: | SG2701B01-9 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | SG2701B01-9 | Screen Size: | 27.0" |
|---|---|---|---|
| Resolution: | 1920(RGB)×1080, FHD 81PPI | Active Area: | 597.888(W)×336.312(H) Mm |
| Outline (mm): | 608.888×348.037×1.13 (H×V×D) | Designed For: | Desktop Monitor、Gaming |
| Luminance: | 0 Cd/m² | Contrast Ratio: | 3000 : 1 (Typ.) (TM) |
| Response: | 12 (Typ.)(G To G) Ms | Color Depth: | 16.7M 99%sRGB |
Product Description
New and original LCD SG2701B01-9 27.0 inch tft lcd screen
Product details :
| Brand | CSOT |
| Model P/N | SG2701B01-9 |
| Diagonal Size | 27.0" |
| Panel Type | a-Si TFT-LCD, CELL, FOB |
| Resolution | 1920(RGB)×1080, FHD 81PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 597.888(W)×336.312(H) mm |
| Bezel Opening | - |
| Outline (mm) | 608.888×348.037×1.13 (H×V×D) |
| Treatment | Antiglare (Haze 25%), Hard coating (3H) |
| Luminance | 0 cd/m² |
| Contrast Ratio | 3000 : 1 (Typ.) (TM) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Response | 12 (Typ.)(G to G) ms |
| Good View at | Symmetry |
| Work Mode | HVA, Normally Black, Transmissive |
| Glass Thickness | 0.40+0.40 mm |
| Transmissivity | 4.6% (Typ.)(with Polarizer) |
| Color Depth | 16.7M 99%sRGB |
| Backlight | No B/L |
| Mass | - |
| Used for | Desktop Monitor,Gaming |
| Refresh Rate | 240Hz |
| Touchscreen | Without |

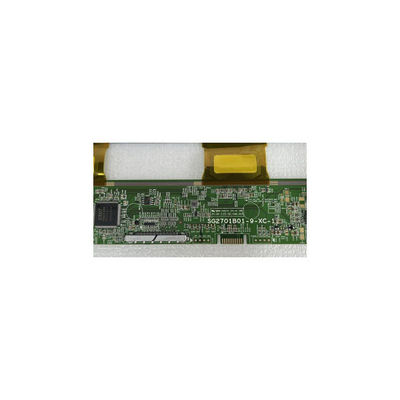

| Driver IC list | Built-in COF 6 source chips |
| Signal Type | V-by-One 8 lane, Connector51 pins |
| Voltage Supply | 12.0V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
