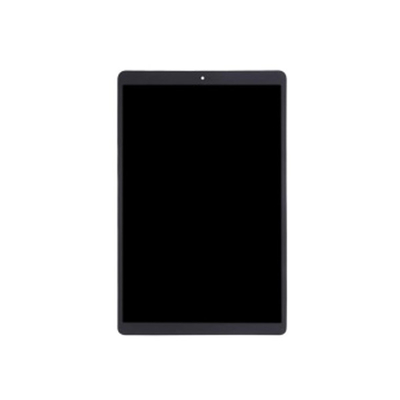

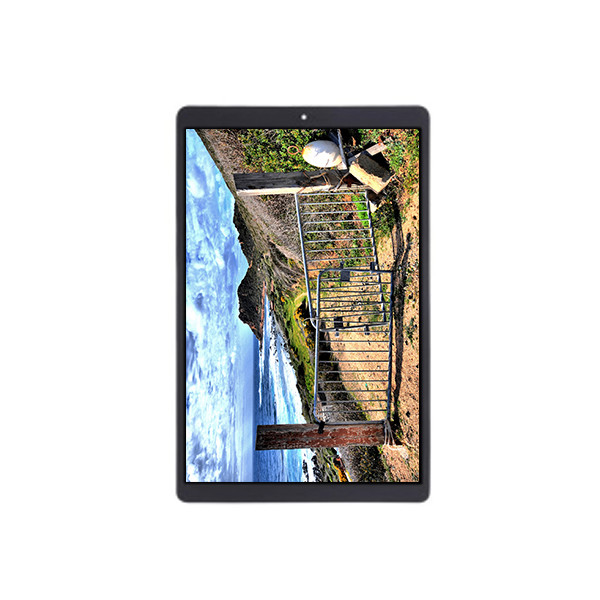

10.1 inch 1200*1920 TFT LCD Panel TV101WUM-LK0
Product Details:
| Place of Origin: | China |
| Brand Name: | BOE |
| Model Number: | TV101WUM-LK0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | TV101WUM-LK0 | Screen Size: | 10.1" |
|---|---|---|---|
| Resolution: | 1200(RGB)×1920, WUXGA 225PPI | Active Area: | 135.36(W)×216.576(H) Mm |
| Outline Size: | 163.76(W)×254.76(H)×4.75(D) Mm | Viewing Angle: | 80/80/80/80 (Typ.)(CR≥10) |
| Brightness: | 360 Cd/m² (Typ.) | Contrast Ratio: | 1000:1 (Typ.) (TM) |
| Frequency: | 60Hz | Application: | Pad & Tablet |
Product Description
10.1 inch 1200*1920 TFT LCD Panel TV101WUM-LK0
Product details :
| Brand | BOE |
| Model P/N | TV101WUM-LK0 |
| Diagonal Size | 10.1" |
| Panel Type | a-Si TFT-LCD, Assembly |
| Resolution | 1200(RGB)×1920, WUXGA 225PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 135.36(W)×216.576(H) mm |
| Bezel Opening | - |
| Outline Size | 163.76(W)×254.76(H)×4.75(D) mm |
| Brightness | 360 cd/m² (Typ.) |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) |
| Best View on | Symmetry |
| Display Colors | 16.7M 99%sRGB |
| Frequency | 60Hz |
| Weight | 190g (Typ.) |
| Surface | Clear, Hard coating |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| Display Mode | - |
| Response Time | 26 (Max.)(Tr+Td), 35 (Typ.)(G to G) |
| Lamp Type | 9S4P WLED , 39K hours , Without Driver |
| Touch Screen | In-Cell Touch, I²C |
| Application | Pad & Tablet |
| Signal Interface | MIPI (4 data lanes), 45 pinsConnector |
| Input Voltage | 1.8/5.8/-5.8V (Typ.)(IOVCC/VSP/VSN) |
| Environment | Operating Temp.: -20 ~ 60 °C ;Storage Temp.: -30 ~ 70 °C |
